Mechanical ventilation has evolved significantly over the past few decades, shifting from rigid, volume-controlled paradigms to more sophisticated, patient-centered modes. Among these advancements, Prvc Ventilation—or Pressure-Regulated Volume Control—stands out as a hybrid mode that clinicians frequently rely on for its ability to combine the safety of volume control with the physiological benefits of pressure control. By delivering a targeted tidal volume while maintaining a constant pressure throughout the inspiratory phase, this mode minimizes the risk of barotrauma and improves overall patient comfort. Understanding how this mode functions and when to implement it is essential for respiratory therapists, nurses, and critical care physicians managing patients with varying levels of lung compliance.
Understanding the Mechanics of PRVC Ventilation
At its core, Prvc Ventilation is a closed-loop, pressure-limited, time-cycled mode. The ventilator measures the patient's exhaled tidal volume from the previous breath and automatically adjusts the inspiratory pressure level for the next breath to achieve the set target volume. This dynamic adjustment process occurs breath-by-breath, ensuring that even if the patient's lung compliance changes or airway resistance fluctuates, the delivered volume remains consistent.
The primary advantage here is the "decelerating flow pattern." Because the pressure is constant during the inspiratory phase, the flow of gas into the lungs starts high and tapers off as the pressure in the alveoli equilibrates with the set pressure. This pattern is generally considered more comfortable for the patient and can lead to better gas distribution within the lungs compared to the fixed, square-wave flow pattern found in traditional Volume Control Ventilation.
Key Advantages in Clinical Practice
The implementation of Prvc Ventilation offers several clinical benefits that make it a preferred choice in many intensive care settings. By balancing the need for precise volume delivery with the safety of pressure limitation, it effectively manages the risks associated with mechanical ventilation.
- Optimal Gas Exchange: The decelerating flow pattern promotes better distribution of gases to areas of the lung with lower compliance.
- Barotrauma Mitigation: By setting a maximum pressure limit, the ventilator prevents over-distension of the alveoli, protecting the lungs from excessive pressure.
- Reduced Work of Breathing: Since the ventilator adjusts to meet the set volume at the lowest possible pressure, it accommodates the patient's demand, reducing the effort required for inspiration.
- Adaptability: It continuously monitors lung mechanics, making it ideal for patients with fluctuating conditions like ARDS or post-operative recovery.
💡 Note: While PRVC is highly adaptive, it is not a "set it and forget it" mode. Regular monitoring of the peak pressure and the auto-flow adjustments is necessary to ensure the ventilator is not compensating for unintentional leaks or patient-ventilator dyssynchrony.
Comparative Analysis of Ventilatory Modes
When selecting the appropriate mode, clinicians often compare Prvc Ventilation against traditional volume-controlled and pressure-controlled modes. The following table illustrates the core differences in how these modes handle pressure and volume.
| Feature | Volume Control (VCV) | Pressure Control (PCV) | Prvc Ventilation |
|---|---|---|---|
| Tidal Volume | Fixed/Guaranteed | Variable | Fixed/Guaranteed |
| Inspiratory Pressure | Variable | Fixed | Variable (Adjusted) |
| Flow Pattern | Constant (Square) | Decelerating | Decelerating |
| Safety Profile | Risk of high pressure | Risk of low volume | Best of both |
Clinical Indications and Setup Considerations
Choosing to utilize Prvc Ventilation is typically indicated for patients who require guaranteed minute ventilation but are at risk of lung injury due to high airway pressures. It is particularly useful during the weaning phase, where the patient's lung compliance may vary as they transition to spontaneous breathing trials.

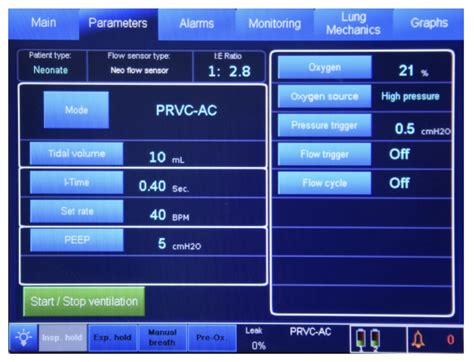

When initiating this mode, clinicians must ensure the following parameters are correctly set:
- Target Tidal Volume: Based on the patient's ideal body weight (typically 6-8 mL/kg).
- Respiratory Rate: Set based on the patient's metabolic needs and blood gas targets.
- Inspiratory Time (Ti): Needs to be sufficient to allow for adequate filling of the lungs.
- Upper Pressure Limit: A safety ceiling that should be set slightly above the current peak inspiratory pressure to protect the patient in case of sudden changes.
- FiO2 and PEEP: Adjusted according to oxygenation requirements.
⚠️ Note: Always verify the patient's endotracheal tube cuff integrity before starting, as leaks in the circuit can cause the ventilator to inaccurately calculate tidal volumes and potentially over-deliver pressure.
Addressing Potential Challenges
Despite its advantages, Prvc Ventilation is not without potential pitfalls. In patients who are actively struggling or "fighting" the ventilator, the machine might misinterpret the patient's effort. If a patient is coughing or bucking the ventilator, the pressure-regulating algorithm might inadvertently deliver higher pressures or incorrect volumes in response to these transients.
To mitigate this, clinicians should ensure adequate sedation or analgesia if the patient shows signs of severe dyssynchrony. Furthermore, clinicians must be alert to the "pressure limit" alarm. If the ventilator consistently hits the set pressure limit, it means the machine cannot deliver the target tidal volume, potentially leading to hypoventilation. In such cases, one might need to reconsider the sedation level or the underlying cause of the reduced lung compliance.
Best Practices for Monitoring

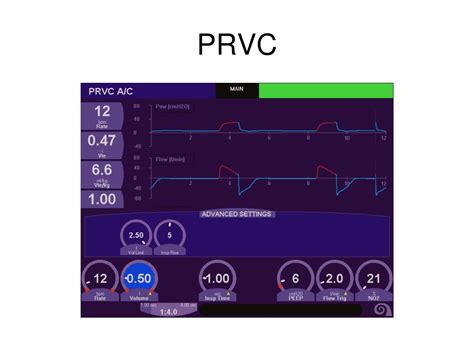

Monitoring is the cornerstone of safe mechanical ventilation. When using Prvc Ventilation, practitioners should focus on the trend of peak inspiratory pressures. An upward trend in these pressures, even if the tidal volume remains constant, is often an early clinical indicator of worsening pulmonary status, such as developing pneumonia, fluid overload, or mucus plugging. By observing these subtle changes in the ventilator's internal adjustments, clinicians can intervene before a patient deteriorates significantly.
Additionally, clinicians should periodically perform a spontaneous breathing trial evaluation to assess whether the patient is ready to transition to a less invasive mode. The flexibility of PRVC allows for a gradual decrease in support, making the transition towards extubation smoother and more structured.
Reflecting on the role of this ventilatory strategy, it is clear that its capacity for dynamic, intelligent regulation provides a critical safety net in the intensive care environment. By merging the consistency of volume targets with the protective nature of decelerating pressure, this mode serves as a cornerstone of modern respiratory care. As with all clinical tools, success relies on the healthcare professional’s deep understanding of the patient’s physiological state and a vigilant approach to adjusting settings as the patient’s condition evolves. Maintaining this balance ensures that mechanical ventilation remains a supportive bridge toward recovery, minimizing complications and maximizing the likelihood of a positive outcome for the patient.
