Every mechanic, whether professional or a dedicated DIY enthusiast, knows that the right equipment defines the quality of the job. Among the most essential items in a workshop is the puller tool. This versatile device is engineered to exert massive force in a controlled manner, allowing users to remove gears, bearings, pulleys, and bushings that have become seized or press-fitted onto shafts over time. Without the proper leverage provided by these instruments, attempting to remove tightly secured components often leads to damaged parts, ruined surfaces, or even personal injury.
Understanding the Basics of a Puller Tool

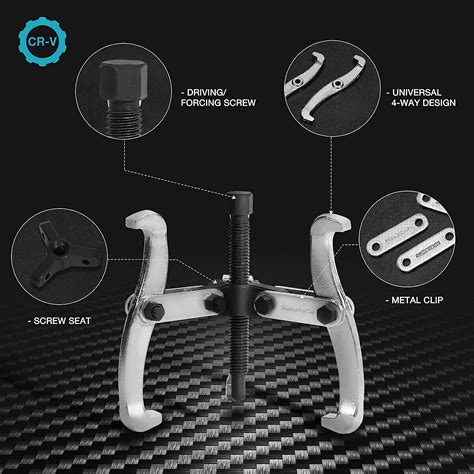

At its core, a puller tool functions by using a central forcing screw to apply pressure against a shaft while the arms or jaws grip the component being removed. This mechanical advantage transforms the rotational energy of a wrench into powerful linear pulling force. The design ensures that pressure is applied evenly, which is crucial for preventing the object from tilting or binding during the extraction process.

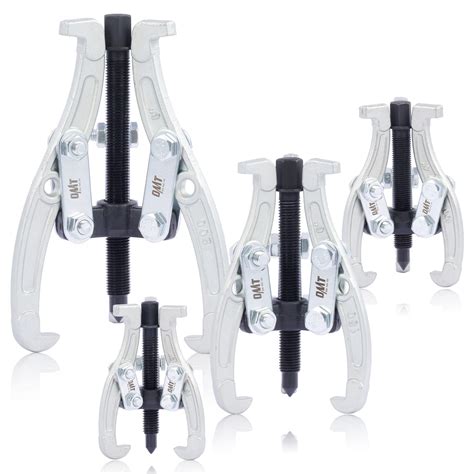

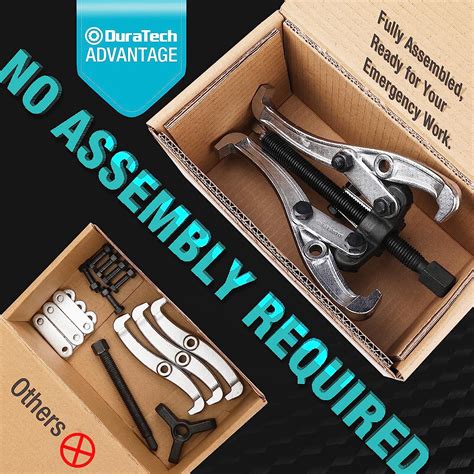

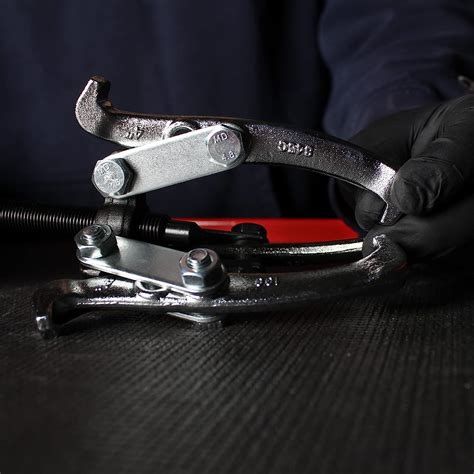

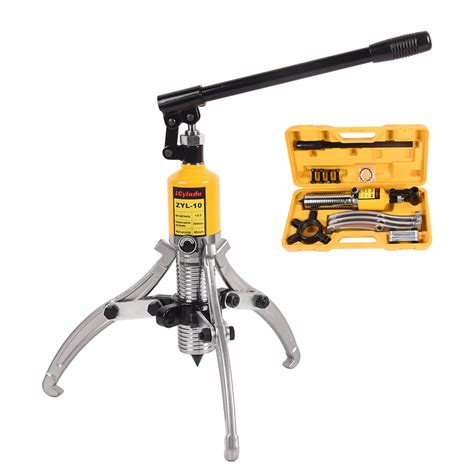

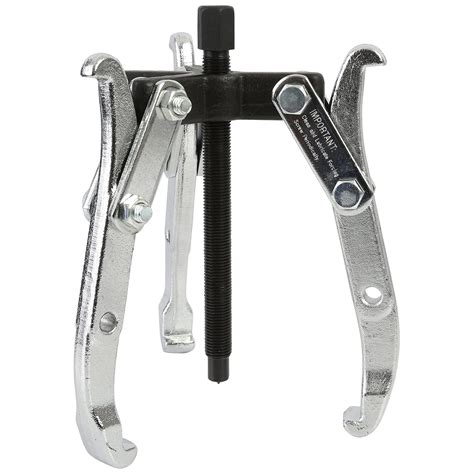

Most mechanical pullers are categorized by the number of jaws they possess. Choosing between a two-jaw and a three-jaw configuration is the first step in ensuring a successful removal. A two-jaw puller is often preferred for tight spaces where access is limited, while a three-jaw puller provides a more balanced distribution of force, making it ideal for stubborn, larger components that require a stable grip.
Choosing the Right Equipment for the Job
Selecting the correct puller tool depends entirely on the specific application and the size of the component you are working with. Factors to consider include the reach (how far the jaws can extend into the assembly) and the spread (the maximum width the jaws can accommodate). If your tool is too small, you won’t be able to grip the component; if it is too large, the jaws may slip, creating a safety hazard.
Here is a quick comparison table to help you decide which tool might fit your specific needs:
| Puller Type | Best Used For | Key Advantage |
|---|---|---|
| Two-Jaw Puller | Limited space, small gears | Easy to maneuver in tight spots |
| Three-Jaw Puller | Large gears, pulleys, hubs | Uniform grip and stability |
| Bearing Separator | Flush-mounted bearings | Wedges behind the part to prevent damage |

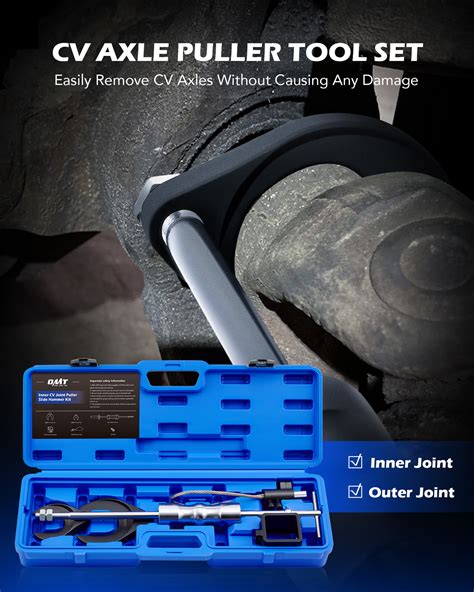

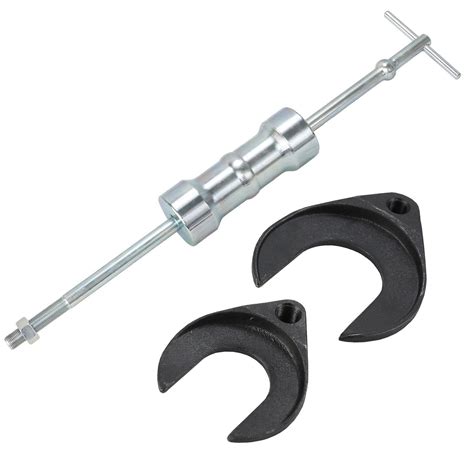

| Slide Hammer | Dents, blind-hole bearings | Uses inertia for extraction |
Safety Protocols and Best Practices
⚠️ Note: Always wear ANSI-approved safety goggles when using a puller tool, as the immense pressure can occasionally cause metal parts to snap or fly off under tension.
Safety is non-negotiable when dealing with high-tension tools. Before applying force, verify that the jaws of the puller tool are seated firmly behind the component. If the jaws are on an angle, they are likely to slip off once the torque increases. Additionally, ensure the forcing screw is properly lubricated with grease or specialized thread lubricant to reduce friction and prevent the threads from galling.
- Check for Wear: Inspect the jaws and the forcing screw for cracks or fatigue before each use.
- Positioning: Align the forcing screw perfectly with the center of the shaft.
- Use Hand Tools: Avoid using impact wrenches on a manual puller, as the sudden shock can strip threads or shatter the puller arm.
- Protect the Surface: Use a protective cap or pad on the shaft end to prevent the tip of the forcing screw from "mushrooming" the shaft.
Common Applications for Puller Tools

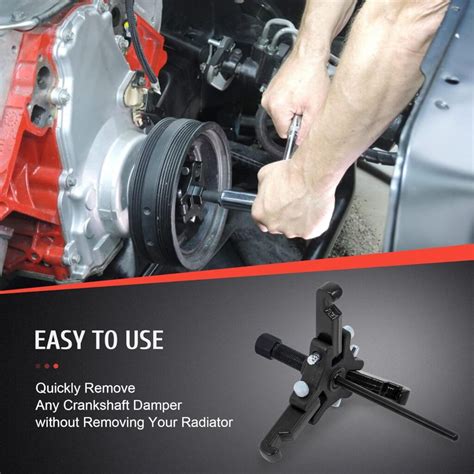

The versatility of the puller tool makes it a staple in automotive repair, industrial maintenance, and agricultural machinery upkeep. In the automotive world, these tools are frequently employed for pulling steering wheel hubs, removing alternator bearings, or extracting drive shaft components. Beyond the garage, they are vital for fixing conveyor systems, electric motors, and heavy manufacturing equipment where precision is required.

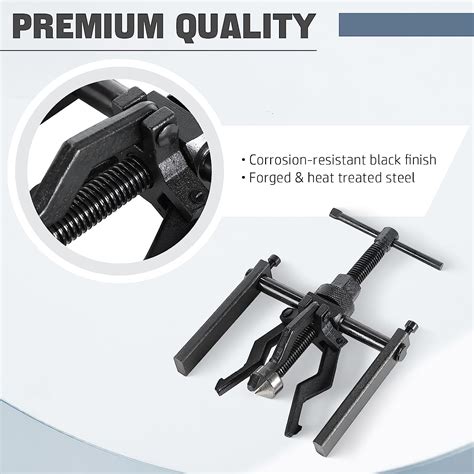

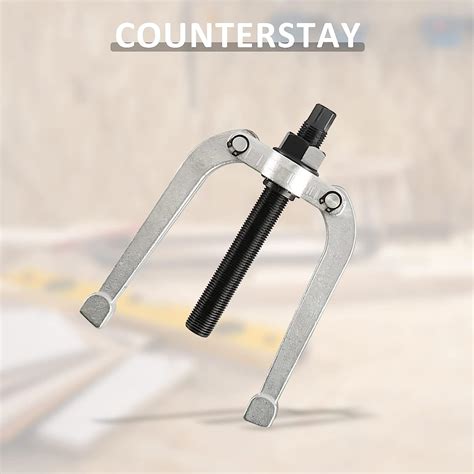

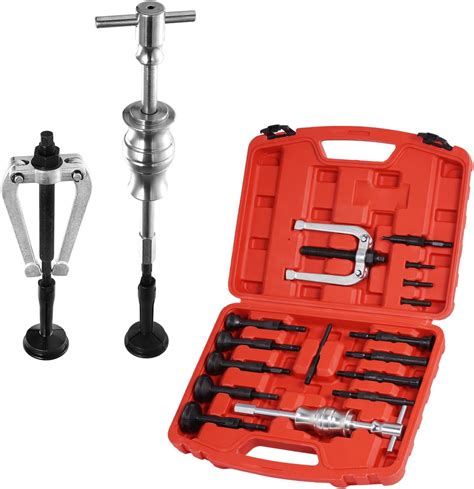

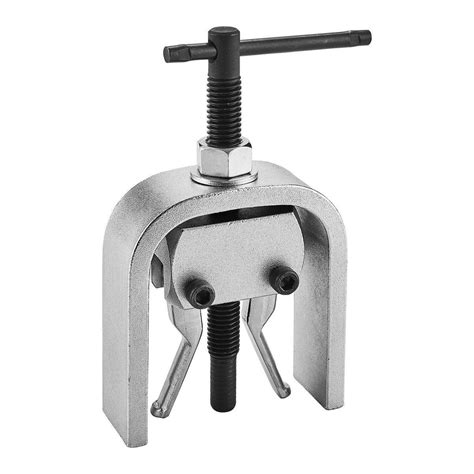

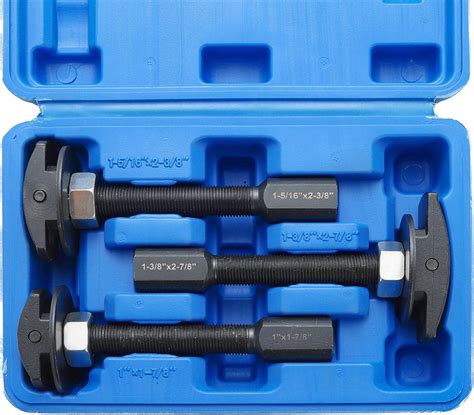

When working on blind-hole applications, such as internal bearings that cannot be gripped from the outside, a specialized internal puller or pilot bearing puller should be utilized. These tools utilize an expansion mechanism that grips the inner race of the bearing, allowing you to pull it out through the center without dismantling the entire housing.
Maintenance to Ensure Longevity
Your puller tool will last for many years if you treat it with the respect it deserves. After completing a job, clean any debris or grease from the threads of the forcing screw and the pivot points of the jaws. A light coat of rust-preventative oil will keep the metal components in good condition, especially if your shop environment is prone to humidity.
Periodically check that the pivot bolts on the arms are snug but not overly tight. If the arms move too freely, they become difficult to align; if they are too tight, they cannot adapt to the shape of the gear, potentially leading to a weak grip. Investing in a dedicated storage case or a shadow board for your wall will also prevent the jaws from getting knocked around or bent while not in use.
Troubleshooting Common Issues
If you find that a component simply won’t move, do not force the puller beyond its rated capacity. If the part is significantly seized due to rust or corrosion, applying heat with a torch to the part being removed can cause it to expand, loosening its grip on the shaft. Alternatively, penetrating oil is an excellent first step. Let the chemical sit for at least thirty minutes before attempting to use the puller tool again. Patience often prevents the shearing of bolts or damage to the shaft itself.
💡 Note: Do not heat the shaft itself, as this can transfer heat into the bearings or seals, potentially ruining their lubrication and structural integrity.
In summary, the utility of a high-quality puller tool cannot be overstated for anyone performing mechanical work. By selecting the right jaw configuration, ensuring proper alignment, and prioritizing safety, you can dismantle complex assemblies with confidence and precision. Regularly maintaining your tools and knowing when to use secondary aids like heat or penetrating oil will transform even the most stubborn repair tasks into manageable maintenance jobs. Whether you are removing a small alternator bearing or a heavy-duty industrial gear, mastering the use of this essential equipment is a hallmark of a skilled technician.
