Reading An Ekg

Understanding the electrical activity of the heart is a fundamental skill in clinical medicine, yet the process of reading an EKG (electrocardiogram) can appear daunting to the uninitiated. At its core, an EKG is a non-invasive diagnostic tool that records the electrical impulses generated by the heart during each beat. By analyzing these tracings, healthcare professionals can identify various cardiac conditions, ranging from benign arrhythmias to life-threatening myocardial infarctions. Mastering the systematic interpretation of these squiggly lines requires a structured approach, focusing on rhythm, rate, axis, and specific morphological characteristics of the waves and intervals.

Table of Contents

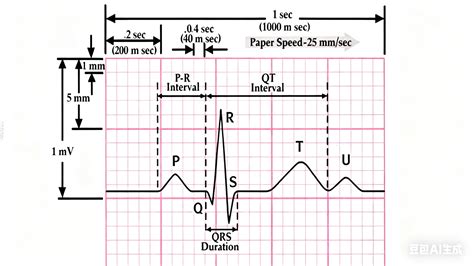

Understanding the Basics of EKG Paper and Waves

Before diving into complex arrhythmias, it is essential to understand the "grid" upon which an EKG is recorded. EKG paper is graph paper where both time and voltage are measured. Understanding these units is critical for accurate assessment.

Time: Measured on the horizontal axis. One small box equals 0.04 seconds, and one large box (5 small boxes) equals 0.20 seconds.
Voltage: Measured on the vertical axis. 10mm (two large boxes) equals 1 millivolt (mV).

The EKG tracing is composed of distinct waves representing different phases of the cardiac cycle:

The Systematic Approach to EKG Interpretation

To avoid errors, always use a systematic approach rather than just scanning the tracing. The following steps provide a reliable framework for analysis.

Rate: Determine if the heart rate is normal, tachycardic, or bradycardic.
Rhythm: Determine if the rhythm is regular or irregular and if a P wave precedes every QRS complex.
Axis: Assess the direction of the mean electrical force of the ventricles.
Intervals: Measure the PR interval, QRS duration, and QTc interval to ensure they fall within normal limits.
Morphology: Examine the waves for signs of hypertrophy, ischemia, injury, or infarction.

Feature	Normal Range
Heart Rate	60–100 beats per minute
PR Interval	0.12–0.20 seconds
QRS Duration	Less than 0.12 seconds
QTc Interval	Varies by gender (typically <0.44s)

⚠️ Note: Always ensure the EKG machine is calibrated correctly before interpretation. A standard calibration should show a 1mV pulse that is 10mm high; if this is incorrect, all amplitude measurements will be unreliable.

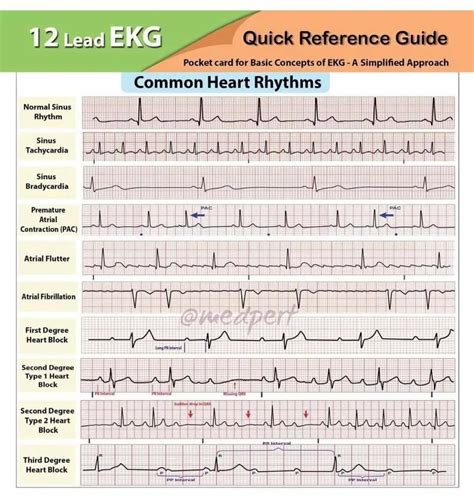

Analyzing Cardiac Rhythm and Rate

When reading an EKG, determining the rhythm is often the first step. You must look for regularity. A simple trick to check for regularity is to place a piece of paper on the EKG strip and mark the R-R intervals, then move the paper across the strip to see if the marks align with subsequent R waves. If the R-R interval is consistent, the rhythm is regular.

Calculating the heart rate follows a standard method:

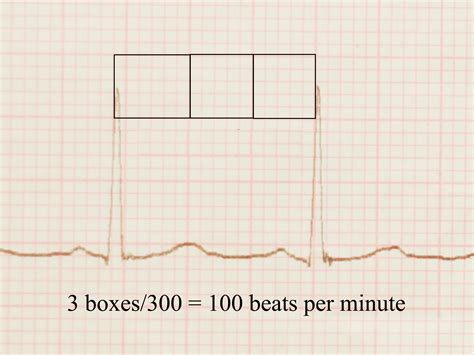

The 300 Method: Divide 300 by the number of large boxes between two consecutive R waves. This works well for regular rhythms.
The 1500 Method: Divide 1500 by the number of small boxes between two consecutive R waves. This is the most accurate method for regular rhythms.
The 6-Second Strip Method: Count the number of R waves in a 6-second strip (30 large boxes) and multiply by 10. This is best for irregular rhythms.

Evaluating Intervals and Segments

The duration and morphology of segments are crucial for diagnosing conduction abnormalities. The PR interval, measured from the onset of the P wave to the onset of the QRS complex, indicates the time taken for the impulse to travel from the atria to the ventricles. A prolonged PR interval suggests an atrioventricular (AV) block.

Identifying Hypertrophy and Axis Deviation

The electrical axis of the heart can shift based on the anatomical position of the heart or pathological changes in ventricular mass. Left Axis Deviation (LAD) can be seen in left ventricular hypertrophy, while Right Axis Deviation (RAD) may indicate right ventricular hypertrophy or strain.

To determine the axis, look primarily at Lead I and Lead aVF:

Also read: Is Finance A Good Major

Normal Axis: Positive QRS in both Lead I and aVF.
Left Axis Deviation: Positive QRS in Lead I, negative QRS in aVF.
Right Axis Deviation: Negative QRS in Lead I, positive QRS in aVF.

Ventricular hypertrophy is often identified by increased voltage in specific leads, such as deep S waves in V1/V2 and tall R waves in V5/V6, suggesting Left Ventricular Hypertrophy (LVH). Accurate reading of an EKG involves integrating these findings with the patient’s history, such as known hypertension or pulmonary disease.

Developing proficiency in EKG interpretation is a journey that blends pattern recognition with an understanding of cardiac electrophysiology. By consistently applying a structured method—evaluating rate, rhythm, axis, intervals, and morphology—you can move beyond superficial scanning and gain deep insights into the heart’s functional status. Remember that practice is essential; the more strips you analyze, the more natural the process becomes. Always prioritize clinical context alongside the EKG findings, as this combination is what ultimately guides safe and effective patient care. Over time, the confidence you gain in deciphering these complex electrical patterns will prove to be an invaluable asset in any medical setting.
