If you notice a high-pitched squealing noise coming from your engine bay or observe cracks along the rubber surface of your engine's drive belt, it is time to address the issue. The serpentine belt is a crucial component that powers multiple peripheral devices in your vehicle, including the alternator, power steering pump, water pump, and air conditioning compressor. Learning how to replace serpentine belt components yourself can save you a significant amount of money in labor costs and prevent the disastrous scenario of a roadside breakdown. Because this single belt drives so many systems, a failure can render your vehicle completely immobile, making proactive maintenance essential for every car owner.
Understanding the Role of the Serpentine Belt

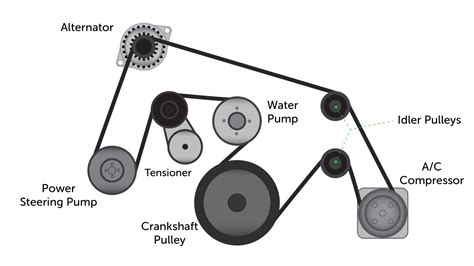

Modern vehicles use a single, long, continuous belt—the serpentine belt—to drive various components. Unlike older vehicles that utilized multiple V-belts for different accessories, the serpentine design is more efficient and occupies less space in the engine compartment. However, because it relies on a single rubber strip, the entire system depends on its integrity. Over time, the constant heat, friction, and tension cause the rubber to harden, crack, and eventually snap.
Signs That It Is Time to Replace Serpentine Belt
Recognizing the symptoms of a failing belt can help you avoid a total system failure. You should inspect your belt during every oil change or if you notice any of the following:
- Squealing or Chirping Noises: Often heard during cold starts or when accelerating, this usually indicates that the belt is slipping or the tensioner is failing.
- Visible Cracks and Fraying: If you see “ribs” that are missing chunks or visible cracks running across the belt surface, replacement is mandatory.
- Loss of Power Steering: Since the pump is driven by the belt, a slipping belt will make steering feel heavy or unresponsive.
- Engine Overheating: If the water pump fails to turn because the belt has snapped, your engine temperature will spike rapidly.
- Battery Warning Light: If the alternator stops charging because the belt broke, your car will soon run out of electrical power.
Tools and Preparation
Before you begin the process to replace serpentine belt, ensure you have the correct tools. While some vehicles allow for a standard wrench, most modern engines require a specialized serpentine belt tool.
| Tool | Purpose |
|---|---|
| Serpentine Belt Tool | Provides the necessary leverage to compress the spring-loaded tensioner. |
| Socket Set | For removing splash guards or other obstructions. |
| Flashlight | To see the belt routing clearly in the dark engine bay. |
| Work Gloves | Protects hands from sharp engine components. |
⚠️ Note: Always take a clear photo of the belt routing before removing the old one. If you forget how it snakes around the pulleys, you will have a very difficult time installing the new belt correctly.
Step-by-Step Guide: How to Replace Serpentine Belt
Once you are ready, follow these professional steps to complete the replacement safely and efficiently:
- Safety First: Ensure the engine is completely cool. Park on a flat surface, engage the parking brake, and disconnect the negative battery terminal to prevent accidental engine starts.
- Access the Belt: Some vehicles require you to remove a plastic splash guard under the front bumper or wheel well to reach the belt tensioner.

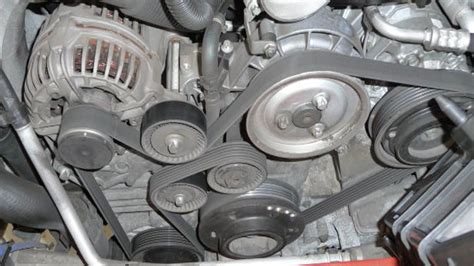

- Locate the Tensioner: Find the spring-loaded pulley. It usually has a square hole or a bolt head specifically designed for your belt tool.
- Release Tension: Attach your tool and rotate the tensioner in the direction that compresses the spring. This will create slack in the belt.
- Remove the Old Belt: Slide the belt off the pulleys. Release the tensioner slowly to avoid snapping it back against the engine.
- Route the New Belt: Following your reference photo, loop the new belt around all fixed pulleys, leaving the tensioner pulley for last.
- Final Tensioning: Rotate the tensioner again with your tool, slide the belt onto the final pulley, and slowly release the tool back to its original position.
- Verification: Double-check that the grooves of the belt are properly seated in the grooves of every pulley. A belt that is off-center by even one rib will shred quickly.
💡 Note: If you find that the belt tensioner itself feels "gritty" or wobbly while moving it, you should replace the tensioner assembly along with the belt. A weak tensioner will cause your brand-new belt to fail prematurely.
Common Challenges During the Process
The most common issue DIYers face is belt misalignment. If the belt is not seated perfectly within the ribbed pulleys, it can flip over or snap within minutes of starting the engine. Another challenge is the lack of space; some compact engine bays require a very specific angle of attack to release the tensioner. If you feel like you are forcing a tool into a spot where it doesn’t fit, step back and re-evaluate your leverage point.
Final Thoughts on Belt Longevity
Maintaining your drive belt system is one of the most cost-effective forms of preventive maintenance you can perform. By knowing how to replace serpentine belt assemblies on your own, you not only save on shop labor fees but also gain a deeper understanding of your vehicle’s mechanical health. Remember that most manufacturers recommend replacing the belt every 60,000 to 100,000 miles, but climate and driving habits—such as frequent stop-and-go traffic or high-heat environments—can shorten this lifespan. Regular visual inspections are your best defense against unexpected repairs. When you notice the first signs of wear, don’t wait for a total failure; address the belt immediately to ensure your vehicle remains reliable and road-ready for many miles to come.
