Geometry is often perceived as a field defined by straight lines and perfect circles, but the Reuleaux Triangle serves as a captivating reminder that mathematics holds endless surprises. As one of the most famous shapes of "constant width," this unique figure defies our intuition about how objects roll and rotate. Named after the 19th-century German engineer Franz Reuleaux, this shape is not technically a triangle in the traditional sense, yet it mimics the properties of a circle in ways that have revolutionized mechanical engineering and artistic design. By exploring its history, mathematical properties, and practical applications, we can appreciate why this curved geometric marvel remains a subject of fascination for mathematicians and hobbyists alike.
Understanding the Geometry of the Reuleaux Triangle

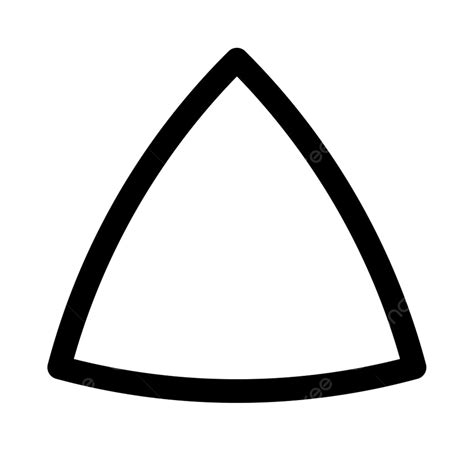

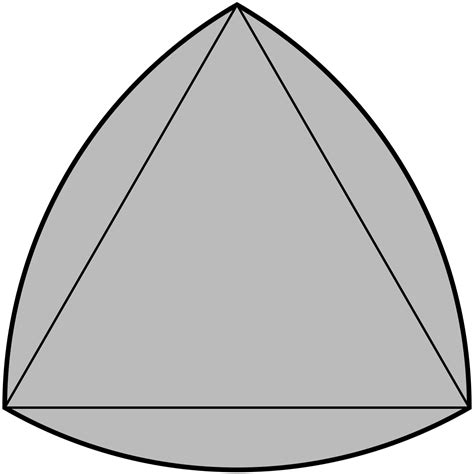

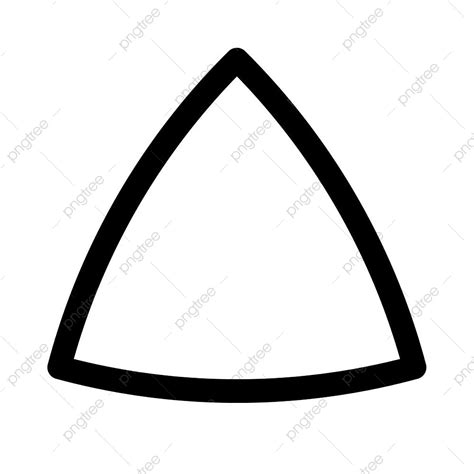

At its core, the Reuleaux Triangle is constructed from an equilateral triangle. If you take an equilateral triangle and draw an arc centered at each vertex that connects the other two vertices, you form this curved shape. The result is a triangle with bulging, convex sides. Despite having three "corners," it possesses a property shared by the circle: it has a constant width.

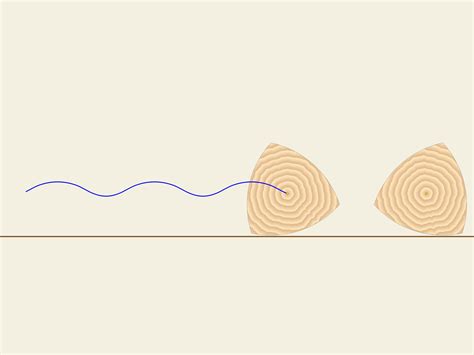

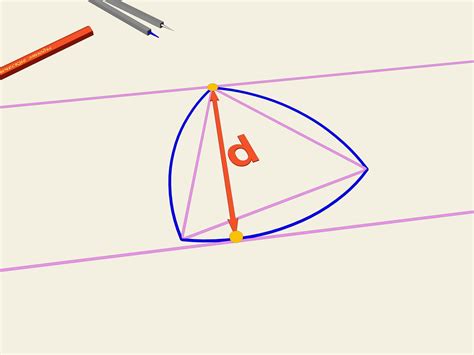

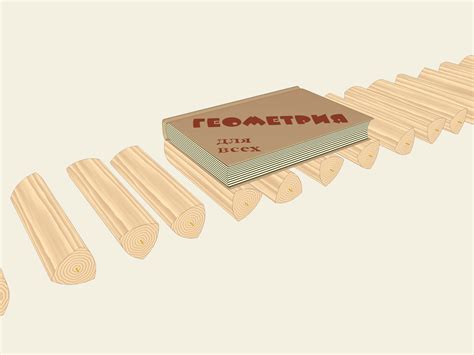

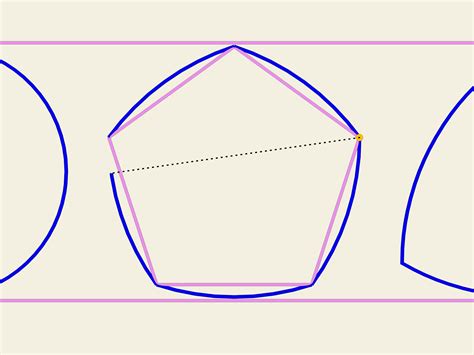

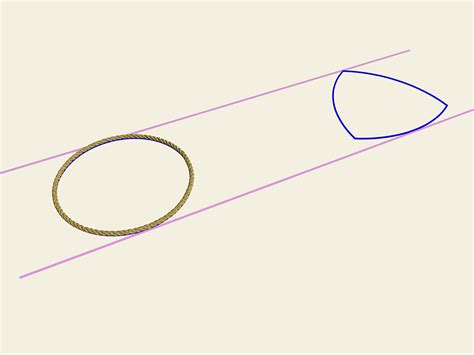

Constant width means that if you place the shape between two parallel lines, the distance between those lines remains the same regardless of how you rotate the figure. This is exactly how a circle behaves. If you roll a circle, its height never changes. Because the Reuleaux Triangle shares this trait, it can rotate smoothly within a square or between parallel surfaces without wobbling vertically, a phenomenon that has sparked decades of interest in kinematics.
Key Mathematical Properties
To truly grasp the elegance of this shape, one must look at the mathematical constants that define it. Unlike a standard triangle, the area and perimeter of a Reuleaux Triangle involve complex calculations based on the radius of the circular arcs used to create its boundaries.
| Property | Mathematical Relationship |
|---|---|
| Constant Width (w) | Equal to the radius of the arcs |
| Perimeter | π × w |
| Area | 1/2(π - √3) × w² |
These properties make it a standout figure in the study of convex geometry. While it is the simplest of the Reuleaux polygons, it remains the most functional. Its area is significantly smaller than a circle of the same width, which leads to various unique physical behaviors when utilized in machines.
💡 Note: While the Reuleaux triangle has a constant width, it does not have a constant radius; its center of rotation shifts as it rolls, which is why it requires specific design considerations in engineering.
Practical Applications in Engineering

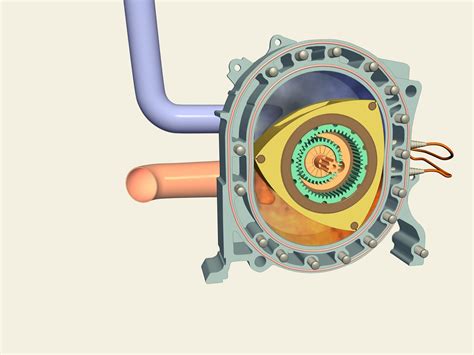

One might wonder where such an obscure shape finds a home in the modern world. The most famous application of the Reuleaux Triangle is the Wankel engine. In this internal combustion engine, a rotor shaped like a Reuleaux-adjacent polygon rotates inside an epitrochoidal housing. The shape allows for a four-stroke cycle—intake, compression, combustion, and exhaust—to occur in a continuous, high-efficiency manner.
Beyond engines, the shape is used in various mechanical tools, including:
- Drill Bits: Special drill bits designed to create square holes. Because of the shape's constant width, the bit can rotate within a square guide to carve out corners.
- Motion Pictures: Early cinema cameras used a version of this geometry to regulate the intermittent movement of film.

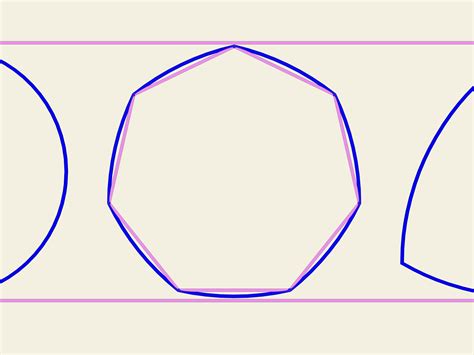

- Coin Design: Certain international coins, such as the British 20-pence and 50-pence pieces, are shaped as Reuleaux heptagons (a variation of the triangle). This allows them to be recognized by vending machines regardless of their orientation.
The Artistic and Intellectual Appeal

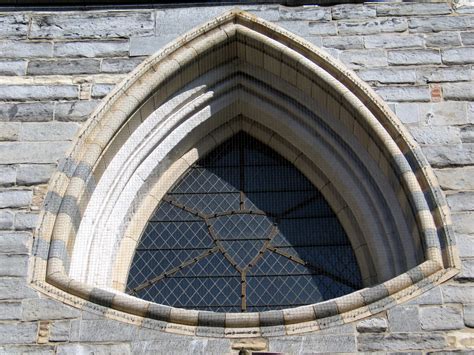

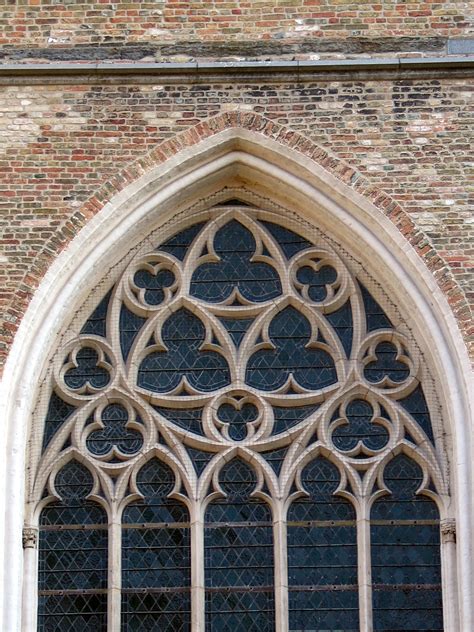

Beyond pure utility, the Reuleaux Triangle is a staple in design and architecture. Its soft, rounded aesthetic makes it visually pleasing, offering a middle ground between the harshness of a triangle and the simplicity of a circle. Architects often use this geometry to create structures that feel organic yet mathematically precise.
It is also a popular project for 3D printing enthusiasts. Creating a model that rolls perfectly between two plates is a "rite of passage" for those learning about tolerances and mechanical clearance. By observing how the shape behaves in real-time, students can better understand the principles of kinematics and non-circular rotation.
Tips for Geometric Construction

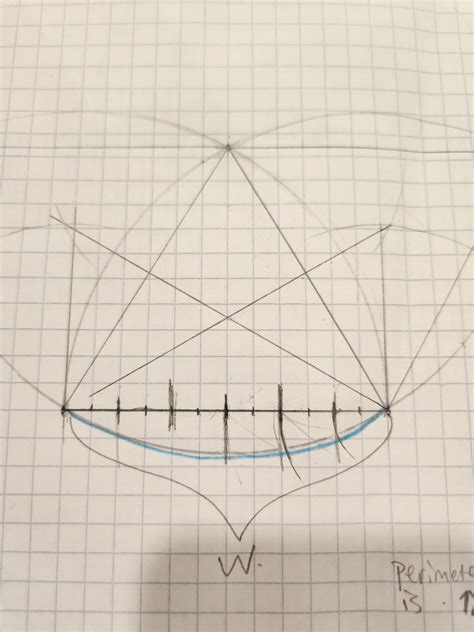

If you want to construct your own, follow these simple steps using a compass and a straightedge:

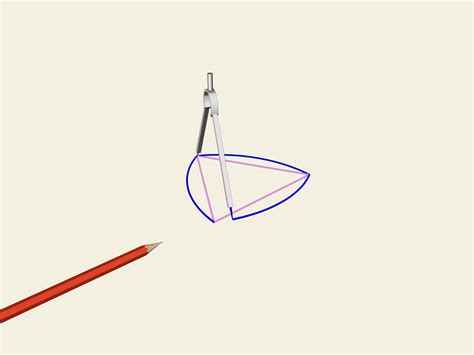

- Draw an equilateral triangle on your paper.
- Place your compass point on one vertex and adjust the lead to reach the second vertex.
- Draw an arc connecting the second and third vertices.
- Repeat this for the other two vertices until you have a shape with three distinct arcs.
💡 Note: Ensure your compass pivot point is precise. Even a millimeter of shift can cause the "constant width" property to fail, which will be noticeable when you try to roll the finished shape.
Winding Up the Discussion
The Reuleaux Triangle stands as a brilliant example of how mathematics translates into physical reality. By bridging the gap between the rigid, angular nature of triangles and the smooth, continuous nature of circles, it provides engineers and designers with a unique tool for innovation. From the precision of Wankel engines to the tactile satisfaction of rolling a specially shaped coin, the legacy of this geometry is everywhere. As we continue to push the boundaries of mechanical design, the simple, elegant curvature of this shape will surely remain a vital part of our geometric vocabulary, reminding us that even the most well-known shapes have hidden complexities waiting to be explored.
