Shear Strain Equation

Understanding the fundamental mechanics of materials is essential for engineers, architects, and students alike. At the heart of solid mechanics lies the concept of deformation under force, and specifically, the way materials distort when subjected to shear forces. To quantify this distortion, we rely on the Shear Strain Equation. This mathematical representation allows us to predict how much a material will change shape—rather than just size—when internal forces act parallel to its surfaces. Mastering this equation is the first step toward ensuring the structural integrity of everything from bridges and buildings to mechanical components in high-performance machinery.

Table of Contents

Defining Shear Strain in Solid Mechanics

When you apply a force to a material, it can either experience normal stress (pulling or pushing it) or shear stress (sliding layers past each other). Shear strain, denoted by the Greek letter gamma (γ), measures the angular distortion of an element caused by these shearing forces. Unlike normal strain, which measures elongation or compression along an axis, shear strain tracks the change in the angles between lines that were originally perpendicular to one another.

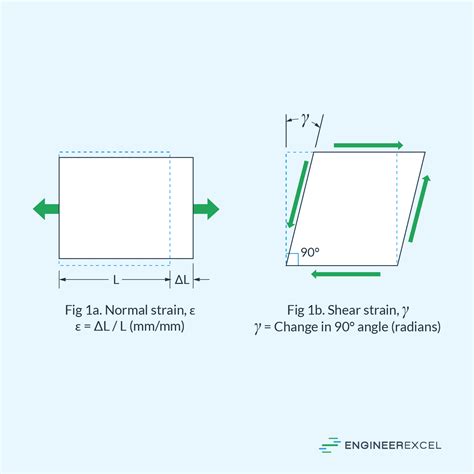

In a simple scenario, consider a rectangular block subjected to a force on its top face while the bottom face is fixed. The block will tilt, transforming the rectangle into a parallelogram. The angle of this tilt is essentially the measure of shear strain. This distortion is critical to calculate because materials have specific limits; exceeding these limits can lead to catastrophic failure, such as the buckling of beams or the cracking of fasteners.

The Standard Shear Strain Equation

The Shear Strain Equation relates the applied shear force and the resulting deformation to the material’s inherent properties. In its simplest, most fundamental form, the shear strain (γ) is defined as the tangent of the change in angle (Δθ) between two line segments that were initially perpendicular.

Mathematically, for small angles—which is common in most engineering applications—the tangent of the angle is approximately equal to the angle itself in radians:

γ = tan(Δθ) ≈ Δθ

Variables Explained

To use these equations effectively, you must understand what each variable represents and its corresponding units in the International System of Units (SI):

γ (Gamma): Shear strain. It is a dimensionless quantity because it is essentially a ratio of two lengths (displacement / height).
τ (Tau): Shear stress. This is measured in Pascals (Pa) or Newtons per square meter (N/m²). It represents the internal force per unit area acting parallel to the surface.
G: Shear modulus. Also measured in Pascals (Pa), this is a material constant that represents a substance’s resistance to shearing deformations.

Comparison of Mechanical Properties

To better understand how different materials behave under shear, consider the following table which highlights the relationship between stress, strain, and modulus.

Material	Typical Shear Modulus (G) in GPa	Behavior under Shear
Steel	75 - 80	High resistance to deformation
Aluminum	25 - 28	Moderate resistance
Rubber	0.0001 - 0.001	Very high deformation (low modulus)
Concrete	10 - 15	Brittle, low shear capacity

Steps to Calculate Shear Strain in a Structural Element

Following a systematic approach ensures accuracy when dealing with complex engineering problems. Use these steps to determine the shear strain in a typical structural component:

Practical Applications and Industry Relevance

Engineers across various disciplines utilize the Shear Strain Equation daily. In mechanical engineering, it is crucial for designing shafts that transmit torque. When a shaft rotates, it experiences torsion, which induces shear stress and subsequent shear strain throughout the cross-section of the shaft. Calculating this accurately prevents the shaft from twisting beyond its elastic limit.

In civil engineering, shear strain calculations are vital for beam and column design. When a beam is loaded, it experiences shear forces at its support points. If the shear strain at these points is not adequately accounted for, the beam could fail at the connection before it reaches its maximum bending capacity. Additionally, in geotechnical engineering, analyzing soil stability under structural loads requires a deep understanding of shear strain to prevent foundation failure and landslides.

Final Thoughts

The ability to calculate shear strain is fundamental to the field of mechanics and structural safety. By utilizing the Shear Strain Equation, professionals can predict how materials will react to shearing forces, allowing them to design structures that are not only efficient but also safe and durable. Whether you are dealing with rigid metals or flexible polymers, understanding the interplay between shear stress, the shear modulus, and the resulting angular distortion provides the necessary insight to avoid failure and optimize material usage. As you continue to work with these concepts, remember that accurate input data—such as reliable material constants—is just as important as the mathematical precision of the formulas themselves. Developing a strong intuition for how these variables interact will serve as a powerful tool in any engineering or analytical endeavor.
