Speed Table

Traffic management is a critical component of urban planning and neighborhood safety. Among the various tools available to engineers, the Speed Table stands out as one of the most effective solutions for calming traffic in residential areas. Unlike standard speed humps, which are often abrupt and can cause vehicle damage, a speed table offers a more gradual transition, effectively balancing the need for speed control with the necessity of smooth traffic flow. Understanding how these structures function and where they are best deployed can significantly enhance the quality of life in local communities.

Table of Contents

What Exactly is a Speed Table?

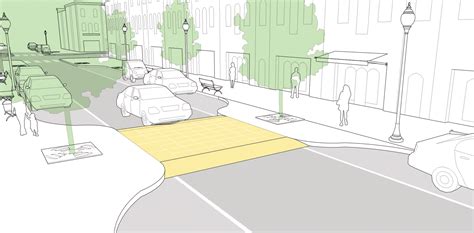

A Speed Table is a specific type of traffic calming device that acts as a long, flat-topped speed hump. Typically spanning the entire width of the road, it features a raised section with a flat top and tapered sides. While a standard speed hump might only be three to four feet long, a table is generally long enough to accommodate the wheelbase of a standard passenger vehicle, usually measuring between 10 and 22 feet in length. This unique design forces drivers to reduce their velocity while ensuring that vehicles, including emergency services and transit buses, can cross with minimal discomfort.

The Functional Design of Traffic Calming Devices

The primary purpose of a Speed Table is to shift driver behavior. By physically altering the road surface, these installations provide a tactile and visual cue that the current road environment requires a slower, more cautious speed. Below are the key characteristics that define the effectiveness of these devices:

Comparing Traffic Calming Solutions

When municipalities decide which traffic calming measure to implement, they often weigh the pros and cons of different structures. The following table illustrates how a Speed Table compares to other common methods like speed humps and raised crosswalks.

Feature	Speed Hump	Speed Table	Raised Crosswalk
Length	Short (3–4 ft)	Long (10–22 ft)	Long (Matches width)
Primary Goal	Strict Speed Reduction	Speed Control + Safety	Pedestrian Priority
Vehicle Comfort	Low	Moderate	Moderate
Emergency Impact	Higher Delay	Minimal Delay	Minimal Delay

⚠️ Note: Always consult local municipal regulations and traffic engineering standards before planning an installation, as height and ramp steepness are strictly regulated to prevent vehicle damage and ensure safety.

Benefits for Pedestrian and Neighborhood Safety

The integration of a Speed Table into a streetscape does more than just slow down cars. It creates a safer environment for vulnerable road users, such as pedestrians, cyclists, and children playing nearby. When drivers are forced to slow down, their reaction time improves, and the severity of potential accidents is significantly mitigated. Furthermore, these tables can be strategically placed near schools, parks, or community centers to create a “pedestrian-first” atmosphere, effectively turning a busy thoroughfare into a more welcoming neighborhood street.

Installation and Maintenance Best Practices

Installing a Speed Table is not merely about pouring asphalt. It requires careful consideration of drainage, lighting, and signage. Poor installation can lead to water pooling, which can damage the road surface over time. To ensure longevity, professional crews generally follow these steps:

Assessment: Conducting traffic studies to determine the 85th percentile speed and traffic volume.
Drainage Planning: Incorporating side channels or drainage pipes to ensure that rainwater does not collect against the ramp edges.
Marking and Signage: Using thermoplastic reflective paint and installing advance warning signs to ensure driver compliance and safety.
Periodic Inspection: Monitoring the surface for cracking or loss of reflectivity to ensure the device remains compliant with safety standards.

💡 Note: Installing these devices without proper warning signs or visibility markers can lead to liability issues, so ensure that high-visibility thermoplastic paint is always maintained.

The Future of Smart Traffic Control

As we move toward a future that includes autonomous vehicles and smart cities, the Speed Table continues to be a relevant and necessary tool. Even as vehicle technology improves at detecting obstacles, the physical necessity of limiting speed in residential zones remains. Many cities are now experimenting with “intelligent” traffic calming, where sensors within the table communicate with infrastructure to monitor traffic patterns in real-time. By combining the physical, reliable nature of the speed table with digital data collection, urban planners can create safer, more efficient road networks that serve the community’s needs far into the future.
