Swan Ganz Catheter

The Swan Ganz catheter, formally known as a pulmonary artery catheter (PAC), stands as a cornerstone of advanced hemodynamic monitoring in critical care medicine. Since its introduction in the early 1970s by Jeremy Swan and William Ganz, this specialized medical device has revolutionized the way clinicians manage patients with complex cardiovascular conditions. By providing real-time data on pressures within the heart and pulmonary circulation, the device allows healthcare teams to make precise adjustments to therapy, fluid management, and medication dosages, ultimately improving patient outcomes in intensive care units (ICUs) and operating rooms.

Table of Contents

Understanding the Mechanics of a Swan Ganz Catheter

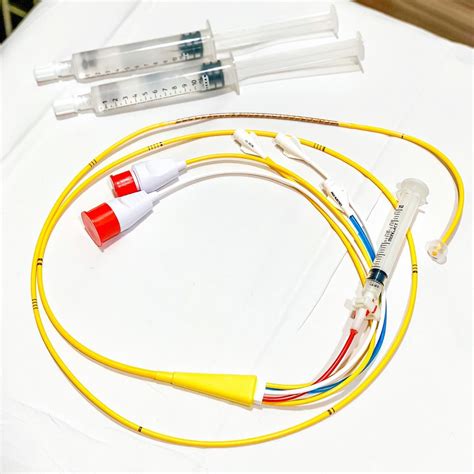

At its core, the Swan Ganz catheter is a flow-directed balloon-tipped catheter designed to be inserted into a central vein, typically in the neck (internal jugular), chest (subclavian), or groin (femoral). Once threaded through the right atrium and right ventricle, it finally rests in the pulmonary artery. The defining feature is the small balloon at the distal tip, which can be inflated to "wedge" the catheter into a smaller branch of the pulmonary artery. This maneuver allows the catheter to measure the pressure downstream, providing an indirect estimation of the left atrial pressure, often referred to as the Pulmonary Artery Wedge Pressure (PAWP).

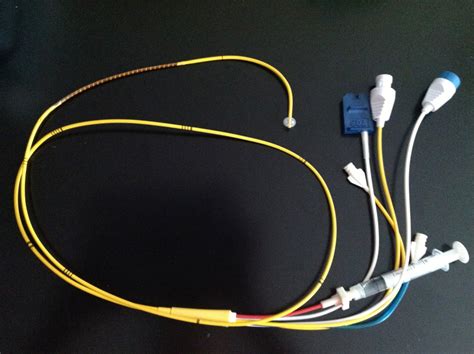

Beyond simple pressure monitoring, modern catheters are multi-functional tools. They are often equipped with multiple ports, thermistors for measuring cardiac output via thermodilution, and electrodes for cardiac pacing. This versatility makes it an indispensable tool for managing patients in unstable conditions.

Also read: Average Infant Blood Pressure

Clinical Indications for Pulmonary Artery Catheterization

The decision to utilize a Swan Ganz catheter is not taken lightly, as it is an invasive procedure that carries inherent risks. Clinicians typically reserve its use for patients whose physiological status is complex, rapidly changing, or difficult to manage with non-invasive monitoring alone. Common indications include:

Shock States: Differentiating between cardiogenic, hypovolemic, distributive, and obstructive shock when the cause is not clinically apparent.
Complex Heart Failure: Management of patients with severe heart failure, particularly those undergoing heart transplant evaluation or requiring mechanical circulatory support.
High-Risk Surgery: Monitoring patients with significant underlying cardiovascular disease who are undergoing major surgical procedures where fluid shifts are expected.
Pulmonary Hypertension: Assessing the severity of pulmonary arterial hypertension and evaluating the response to vasodilator therapies.
Acute Respiratory Distress Syndrome (ARDS): Guiding fluid management to balance the need for oxygen delivery with the risk of worsening pulmonary edema.

⚠️ Note: The use of a Swan Ganz catheter should always be weighed against the risks of infection, hemorrhage, arrhythmias, and pulmonary artery rupture. It is indicated only when the potential benefit of precise hemodynamic data outweighs these risks.

Hemodynamic Parameters Measured

The Swan Ganz catheter provides a comprehensive snapshot of cardiovascular function. Below is a table highlighting the key parameters typically derived from or measured directly by the device:

Parameter	Definition	Clinical Significance
CVP	Central Venous Pressure	Reflects right ventricular preload and fluid status.
PAP	Pulmonary Artery Pressure	Monitors pressures in the pulmonary circulation.
PAWP	Pulmonary Artery Wedge Pressure	Estimates left ventricular end-diastolic pressure.
CO	Cardiac Output	The volume of blood pumped by the heart per minute.
SVR	Systemic Vascular Resistance	Measures the resistance the left ventricle must overcome.

Procedure and Insertion Safety

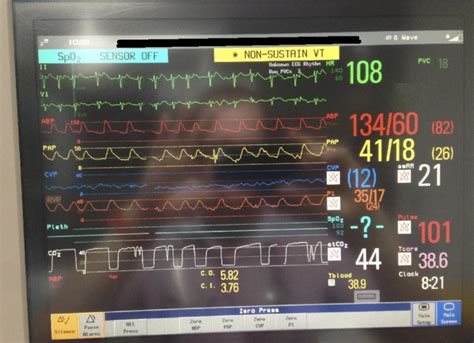

The insertion of a Swan Ganz catheter is performed under sterile conditions, usually guided by ultrasound to minimize venous trauma. The catheter is passed through the right side of the heart, with pressure waveforms monitored continuously on a display monitor to verify correct positioning at each step. Once in the pulmonary artery, the balloon is briefly inflated to obtain the wedge pressure reading. Maintaining accurate calibration and preventing air embolisms are critical steps in the procedure.

Continuous monitoring is essential after placement. Nurses and intensivists must regularly check the catheter position, ensure that the transducer is properly leveled and zeroed, and observe for potential complications like thrombosis or infection at the insertion site.

💡 Note: Always ensure the catheter balloon is deflated after the wedge pressure measurement is obtained to prevent permanent arterial occlusion or localized infarction.

Interpreting Data for Targeted Therapy

The power of the Swan Ganz catheter lies in its ability to guide therapeutic interventions. For example, in a patient presenting with hypotension, the device can help distinguish between low cardiac output due to heart failure (requiring inotropes) and low cardiac output due to hypovolemia (requiring intravenous fluids). By analyzing the relationship between cardiac output, systemic vascular resistance, and pulmonary pressures, clinicians can transition from a "one-size-fits-all" approach to personalized, data-driven hemodynamic optimization.

This precision is particularly vital in the setting of mixed shock states, where a patient may simultaneously suffer from myocardial dysfunction and vasodilation. The catheter allows for the titration of vasopressors and inodilators, ensuring that tissue perfusion is restored without overburdening a compromised heart.

Complications and Best Practices

While the data provided by a Swan Ganz catheter is invaluable, clinicians must be vigilant about potential complications. These include arrhythmias (often caused by the catheter tip irritating the heart wall during insertion), pneumothorax, vessel perforation, and catheter-related bloodstream infections. To minimize these risks, institutions follow strict evidence-based protocols:

Utilizing ultrasound guidance for venous access.
Strict adherence to aseptic techniques during insertion and maintenance.
Minimizing the duration of catheter placement and removing it as soon as the clinical data is no longer necessary.
Regular monitoring of the insertion site for signs of phlebitis or infection.
Verifying proper waveform interpretation to avoid inaccurate data leading to harmful therapeutic decisions.

As modern technology advances, less invasive methods of monitoring, such as pulse contour analysis and echocardiography, have become more prevalent. However, the pulmonary artery catheter remains the "gold standard" in many complex cases, providing a level of reliability and direct measurement that alternative technologies cannot yet fully replicate. When used with expertise, it remains a vital instrument for navigating the complexities of critically ill patients.
