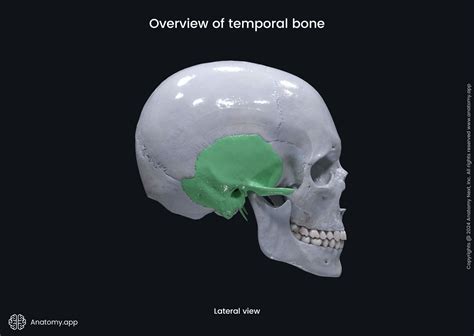

The temporal bone anatomy is one of the most complex and functionally significant structures in the human skeletal system. Located at the sides and base of the skull, this paired bone not only protects vital delicate structures but also serves as the housing for the organs of hearing and equilibrium. Understanding this anatomy is essential for medical professionals, students, and anyone interested in the intricacies of the human body, as it bridges the gap between neurology, otolaryngology, and neurosurgery. Its unique structure is composed of several distinct parts, each performing specialized roles that allow us to perceive sound and maintain balance throughout our daily lives.

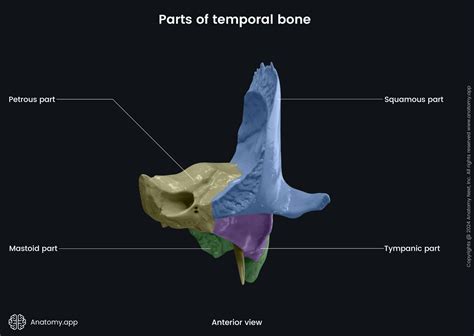

The Four Distinct Parts of the Temporal Bone

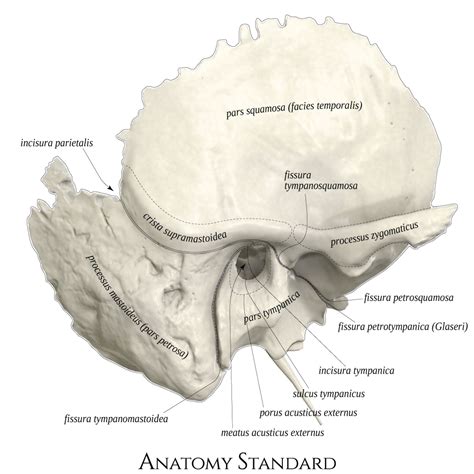

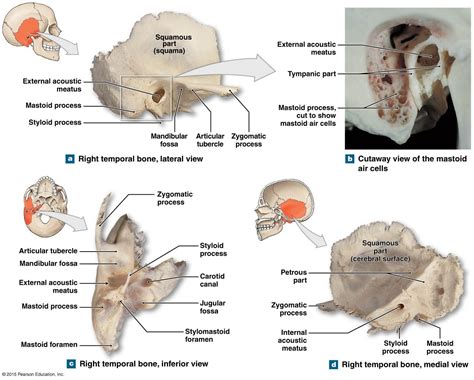

To fully grasp temporal bone anatomy, it is helpful to visualize it as being composed of four distinct portions that fuse together during development. Each part contributes to the overall stability and functionality of the cranium and the auditory system.
- Squamous Part: This is the largest and most superior portion. It is thin and plate-like, forming the lateral wall of the middle cranial fossa. The zygomatic process projects anteriorly from here to join the zygomatic bone, forming the zygomatic arch.

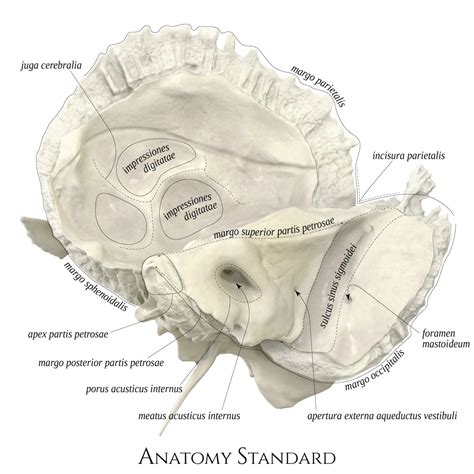

- Petrous Part: Often considered the most complex part of the human skeleton, the petrous portion is dense and pyramidal in shape. It is wedged between the sphenoid and occipital bones and houses the inner ear structures, including the cochlea and the semicircular canals.
- Mastoid Part: Located posterior to the ear canal, the mastoid portion provides attachment points for several neck muscles, including the sternocleidomastoid. Its internal structure is porous, containing the mastoid air cells that connect to the middle ear cavity.
- Tympanic Part: This is a small, curved plate of bone that forms the anterior and inferior walls, as well as part of the posterior wall, of the external acoustic meatus (ear canal).
The Intricate Auditory and Vestibular Pathways
The internal architecture of the temporal bone anatomy is a masterpiece of biological engineering. Within the dense petrous portion lies the bony labyrinth, a complex system of canals and cavities. This area is responsible for housing the inner ear, which translates mechanical vibrations into neural signals and detects movement to maintain balance.

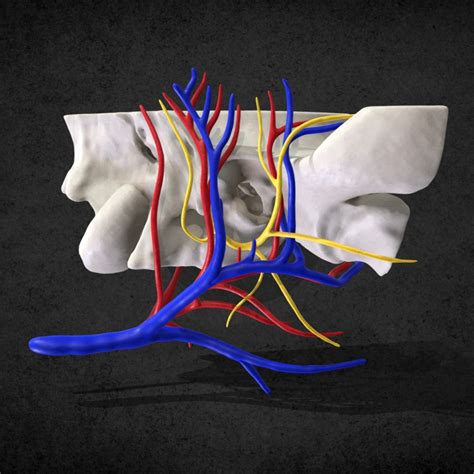

Furthermore, the temporal bone is traversed by several major anatomical channels. The most notable is the carotid canal, which allows the internal carotid artery to enter the cranial cavity to supply blood to the brain. Additionally, the facial nerve (cranial nerve VII) travels through a long, winding tunnel known as the facial canal, making it vulnerable to trauma or inflammation occurring within the temporal bone.
| Anatomical Feature | Primary Function |
|---|---|
| External Acoustic Meatus | Channel for sound waves to reach the tympanic membrane. |
| Mastoid Air Cells | Provide drainage and pressure regulation for the middle ear. |
| Petrous Portion | Protects the inner ear and houses the cochlear and vestibular nerves. |
| Carotid Canal | Passageway for the internal carotid artery to the brain. |
⚠️ Note: Because the facial nerve follows such a circuitous path through the temporal bone, conditions like Bell’s Palsy or infections of the middle ear can lead to localized nerve impairment.
Clinical Significance and Surgical Considerations
Given its critical location, pathology involving the temporal bone anatomy often requires specialized intervention. Surgeons must navigate this region with extreme precision to avoid damaging nerves or large blood vessels during procedures such as mastoidectomies or cochlear implant surgery.
In clinical practice, diagnostic imaging is paramount. Computed Tomography (CT) scans are the gold standard for visualizing the bony details of the temporal bone, particularly for evaluating trauma, chronic otitis media, or cholesteatomas. Magnetic Resonance Imaging (MRI) is subsequently used to examine the soft tissues, such as the nerves and the brain structures adjacent to the petrous apex.
Common clinical conditions related to this region include:
- Cholesteatoma: An abnormal skin growth in the middle ear that can erode the surrounding bony structures.
- Temporal Bone Fractures: Often resulting from head trauma, these are classified as longitudinal, transverse, or mixed, depending on their orientation relative to the petrous pyramid.
- Otosclerosis: A condition where abnormal bone remodeling impairs the movement of the stapes bone, causing conductive hearing loss.
ℹ️ Note: If you observe sudden hearing loss, vertigo, or facial weakness following a head injury, immediate clinical evaluation is necessary to rule out temporal bone fractures or related intracranial complications.
Diagnostic Imaging and Assessment
When assessing temporal bone anatomy in a clinical setting, radiologists look for specific markers that indicate health or disease. The aeration of the mastoid air cells, for instance, is a key indicator of middle ear health. A lack of air-cell aeration (sclerosis) can suggest long-standing inflammatory processes. Furthermore, the integrity of the tegmen tympani—the thin roof of the middle ear—is crucial, as its erosion could lead to communication between the ear and the intracranial space, increasing the risk of meningitis.
The complexity of the temporal bone means that it requires high-resolution imaging protocols. Thin-slice CT scans (often less than 1mm) are required to identify small ossicles or delicate structures like the semicircular canals. As technology progresses, three-dimensional reconstructions have become an invaluable tool for surgical planning, allowing surgeons to visualize the spatial relationship between the facial nerve and potential areas of pathology before making an incision.
Ultimately, the temporal bone stands as a testament to the sophistication of the human body. Its role in protecting the vital organs of hearing and balance, combined with its function as a conduit for major nerves and blood vessels, makes it a focal point of medical study. Mastery of temporal bone anatomy is not merely an academic exercise; it is a foundational pillar that enables surgeons, radiologists, and audiologists to provide life-altering care. By understanding how these structures fit together and how they respond to disease, professionals can better address the challenges of otologic health, ensuring that patients maintain the ability to interact with the world through sound and spatial awareness.
