In the vast landscape of materials science and engineering, the ability to understand how a material reacts to external forces is fundamental. Whether you are developing lightweight alloys for the aerospace industry, testing the integrity of medical implants, or ensuring the safety of construction beams, the tensile test machine serves as the backbone of quality control and innovation. By subjecting a specimen to controlled tension until failure, engineers can unlock critical data regarding a material's elasticity, strength, and overall durability.
Understanding the Basics of Tensile Testing

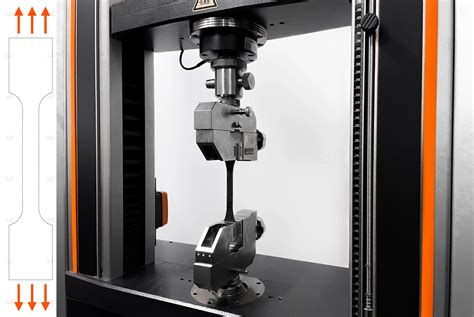

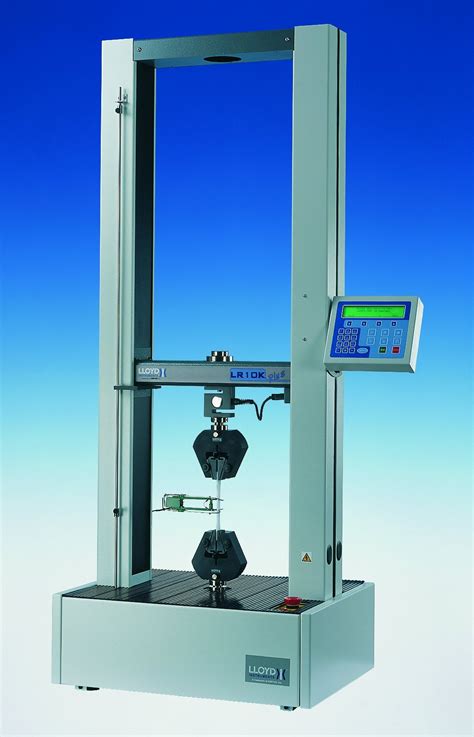

At its core, a tensile test machine—often referred to as a universal testing machine (UTM)—is a piece of equipment designed to pull a sample of material until it breaks or reaches a predetermined deformation limit. This process provides a quantitative measurement of the material’s mechanical properties, which are essential for deciding whether a material is suitable for its intended application.

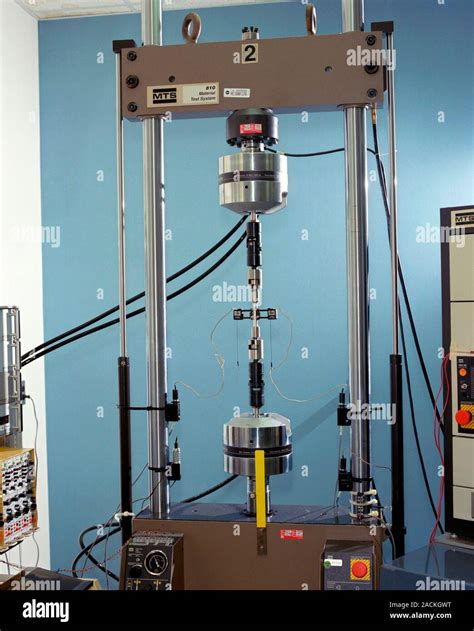

The equipment typically consists of a frame, a load cell to measure the force being applied, and grips to secure the specimen. As the machine pulls the material, it records the relationship between the applied force and the elongation of the specimen. This data is then plotted on a stress-strain curve, a visual representation that tells the story of how the material behaved under stress.
Why the Tensile Test Machine is Essential
Industries rely on these machines because safety and performance cannot be left to chance. Without rigorous testing, structures could collapse, components could fail prematurely, and safety standards would be impossible to quantify. Key reasons for using this equipment include:
- Quality Assurance: Ensuring every batch of raw material meets industry specifications.
- Product Development: Helping researchers compare new materials against existing standards to create stronger, lighter, or more efficient products.
- Regulatory Compliance: Meeting international safety certifications and standards like ASTM or ISO.
- Cost Efficiency: Preventing the use of substandard materials that could lead to costly recalls or failures in the field.
Key Mechanical Properties Measured
When you operate a tensile test machine, you are looking for specific data points that define the material’s identity. Understanding these terms is vital for any engineer or technician:
| Property | Definition |
|---|---|
| Yield Strength | The stress level at which a material begins to deform plastically. |
| Ultimate Tensile Strength (UTS) | The maximum stress a material can withstand while being stretched. |
| Young’s Modulus | A measure of the stiffness of a solid material. |
| Elongation | The percentage increase in length before the material breaks. |
⚠️ Note: Always ensure the specimen is perfectly aligned within the grips; improper alignment can lead to skewed data and inaccurate results due to bending stresses rather than pure tension.
How to Operate the Equipment Safely
Operating a tensile test machine requires precision and a strict adherence to safety protocols. Before starting any test, ensure the equipment is calibrated and the environmental conditions meet the required standards. The following steps outline the standard procedure:
- Prepare the Specimen: Measure the width and thickness of the sample accurately, as these dimensions are crucial for calculating stress.
- Mounting: Place the specimen into the grips. Ensure the jaws are tightened sufficiently to prevent slippage during the test.
- Calibration: Zero the force and displacement sensors to ensure that the initial readings are accurate.
- Execution: Start the test at a controlled rate of extension. Do not increase the speed mid-test unless specified by your protocol.
- Analysis: Once the specimen breaks, stop the machine and retrieve the data for post-processing.
💡 Note: Always wear appropriate personal protective equipment (PPE), including safety goggles, as specimens often shatter or snap violently during high-tension testing.
Choosing the Right Machine for Your Needs

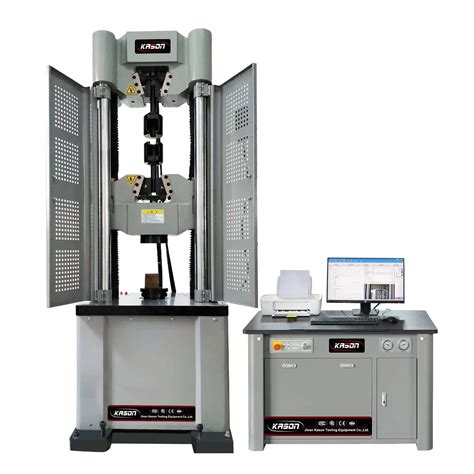

Not all machines are built the same. When searching for a tensile test machine, you must consider the range of materials you will be testing. Factors such as the maximum capacity (measured in kilonewtons), the travel distance of the crosshead, and the type of software interface should influence your decision. For delicate polymers, a low-capacity machine with high sensitivity is necessary, while heavy-duty steel testing requires a high-capacity hydraulic machine.

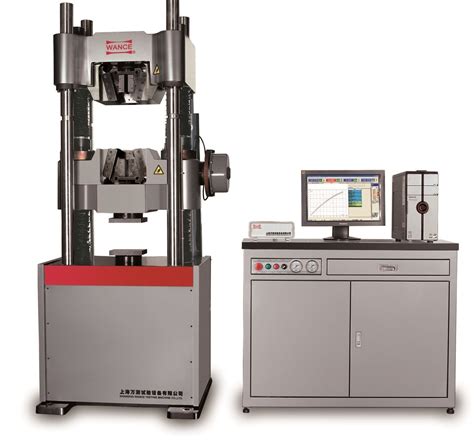

Furthermore, digital integration is becoming a standard requirement. Modern machines offer automated report generation and direct export to Excel or database systems, which significantly reduces the chance of human error in manual data entry. Integrating advanced software allows for real-time visualization of the stress-strain curve, which can help operators identify potential issues early in the testing process.
Maintaining the Integrity of Your Testing Environment
To ensure long-term reliability, routine maintenance is mandatory. The load cell, which acts as the ‘brain’ of the tensile test machine, should be recalibrated annually by certified professionals. Keep the lead screws lubricated, ensure that the grips are free from debris or material residue, and check the software for updates to maintain security and functionality. A well-maintained machine is the difference between consistent, reliable data and questionable results that could compromise your research or production line.
In summary, the role of a tensile test machine in modern manufacturing and research cannot be overstated. By providing the essential data needed to understand material limits, these machines enable us to build safer infrastructure, develop cutting-edge technology, and maintain high standards of quality across the globe. Mastery of these devices involves not only understanding their technical capabilities but also practicing diligent safety habits and consistent maintenance. As technology continues to evolve, the integration of smarter, more automated testing systems will likely further refine our ability to predict material behavior, ultimately leading to even more resilient and sustainable design solutions for the future.
