In the complex world of electrical engineering and industrial automation, maintaining a clean, organized, and reliable connection system is paramount. Whether you are wiring a control cabinet, assembling a custom circuit, or managing power distribution in a large facility, the terminal strip serves as the fundamental building block for safe and efficient connectivity. Often referred to as a terminal block or barrier strip, this essential component allows multiple electrical circuits to be connected in a single location, drastically reducing the clutter of loose wires and minimizing the risk of short circuits. Understanding how to select, install, and maintain these components is a skill that every technician, engineer, and DIY enthusiast should prioritize to ensure long-term system performance.
Understanding the Function of a Terminal Strip
At its core, a terminal strip is a modular block that houses conductive metal components inside an insulated frame. Each block consists of an entry point for a wire and a clamping mechanism—typically a screw, spring, or push-in connector—that secures the wire against a conductive busbar. By clustering these connections together, a terminal strip provides a centralized point where field wiring meets internal equipment wiring. This modularity is particularly beneficial during the troubleshooting process, as it allows technicians to disconnect specific circuits for testing without disturbing the entire system architecture.

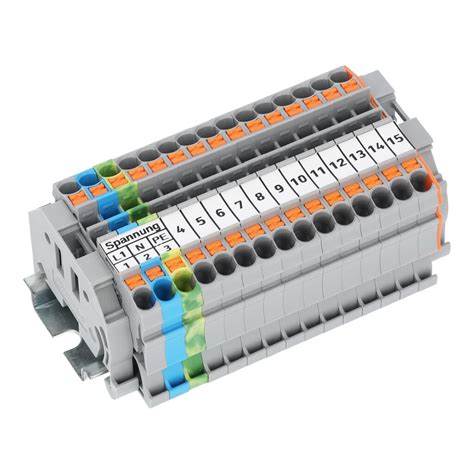

The versatility of these components is underscored by the various mounting options available. Most modern systems utilize DIN rail mounting, which allows a series of blocks to be snapped onto a metal track, creating a neat, linear array of connections. This organization is not just about aesthetics; it is vital for safety, as it prevents wires from crossing, reduces mechanical stress on connections, and makes labeling circuits significantly easier.
Types of Terminal Strip Configurations
Selecting the right hardware for your project requires an understanding of the different types of strips available on the market. While they all share the same goal, their construction methods vary to accommodate different environments and wire gauges.

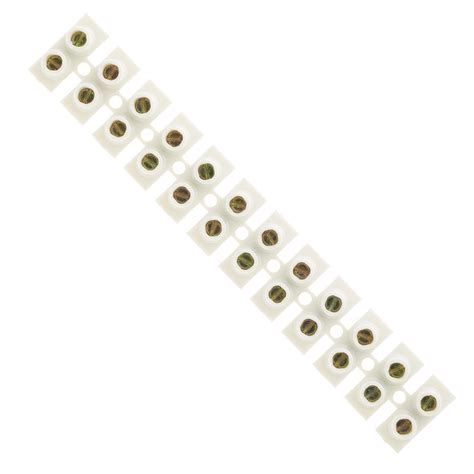

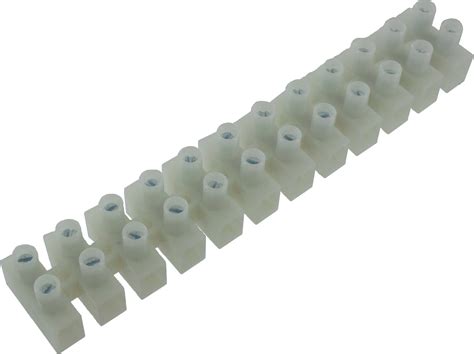

- Screw-Clamp Terminal Strips: These are the industry standard for high-vibration environments. They provide a high-pressure connection that remains secure over time.
- Spring-Clamp (Cage Clamp) Strips: These rely on a tensioned spring to hold the wire in place. They are excellent for applications where fast installation is required and provide automatic compensation for wire movement.
- Push-In Terminal Strips: Designed for rapid assembly, these allow wires to be inserted directly without the need for tools, ideal for solid or ferrule-terminated stranded wires.

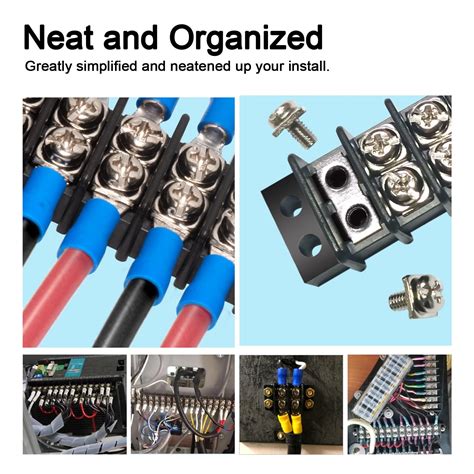

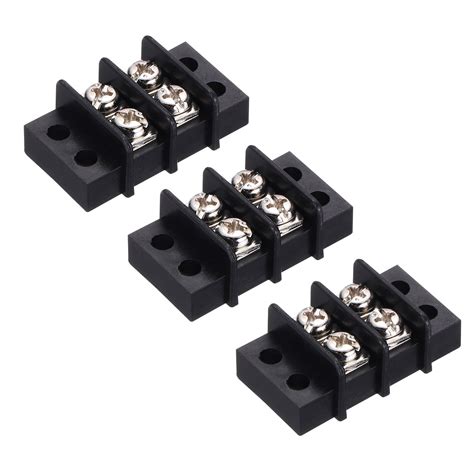

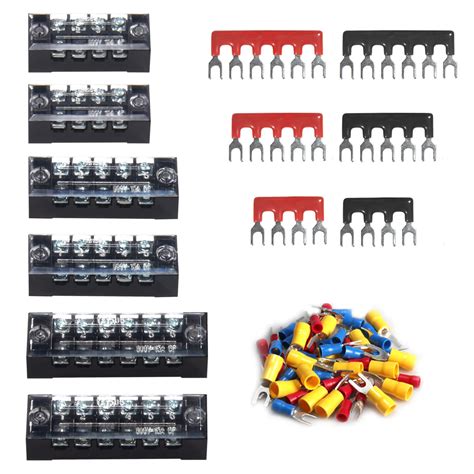

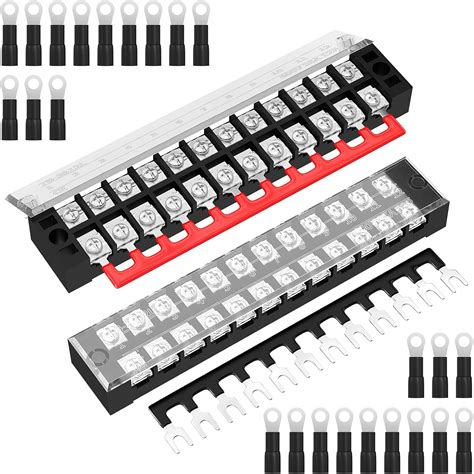

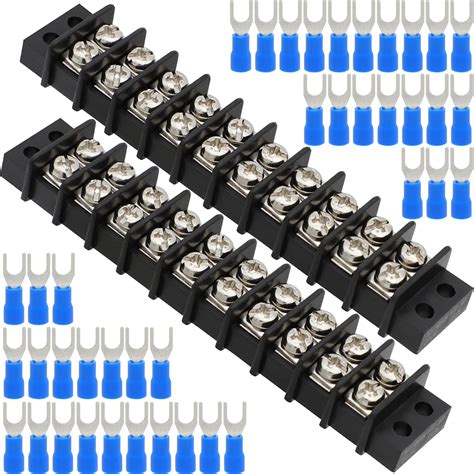

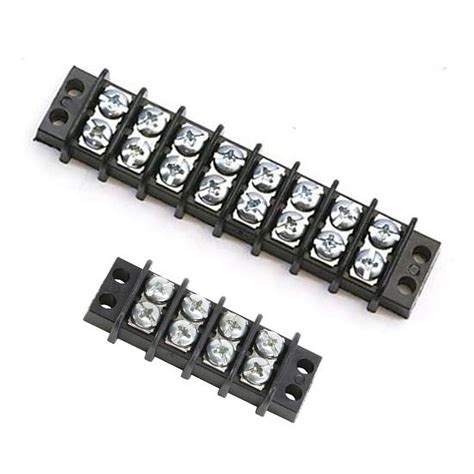

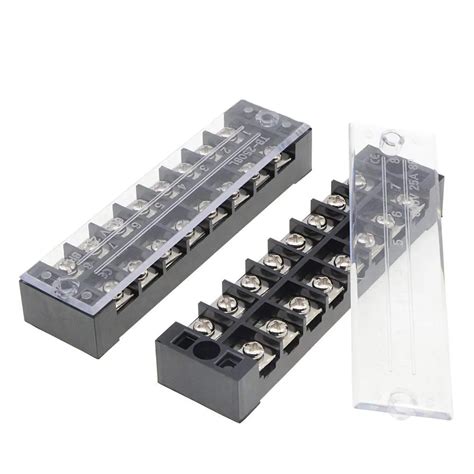

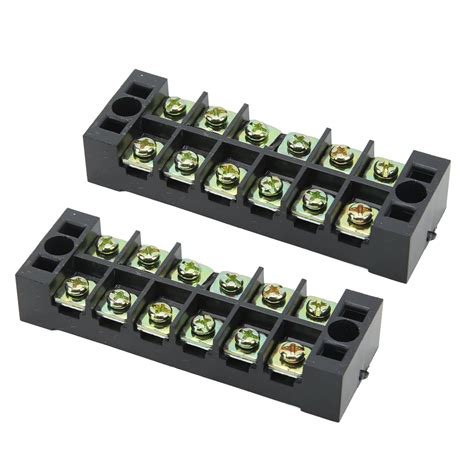

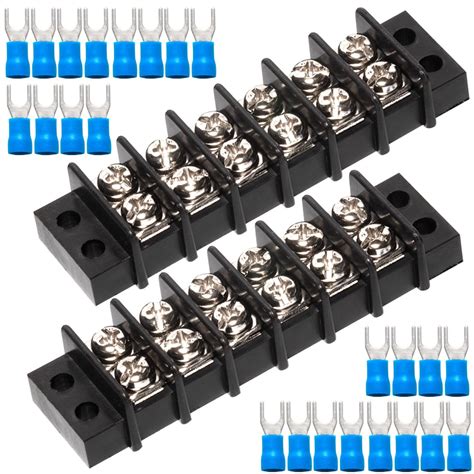

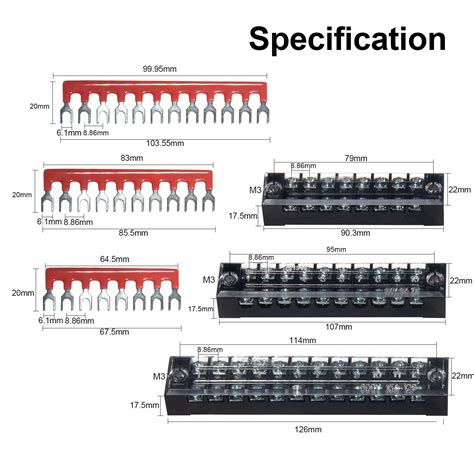

- Barrier Strips: Often used in power applications, these feature physical barriers between each terminal to prevent arcing and accidental contact between adjacent conductive parts.
⚠️ Note: Always ensure that the wire size (gauge) used matches the rated capacity of the terminal strip to prevent overheating or poor contact, which can lead to fires or intermittent signal loss.
Key Selection Criteria
Choosing the correct terminal strip involves evaluating several technical specifications. Ignoring these parameters can lead to failure in critical systems. Key factors include:
| Feature | Consideration |
|---|---|
| Voltage Rating | Must exceed the maximum potential difference of your circuit. |
| Current Rating | Ensures the metal busbar can handle the load without melting. |
| Wire Gauge Capacity | Confirms the physical compatibility with your chosen cable size. |
| Mounting Type | Determines if it fits on DIN rails or requires panel mounting. |
Best Practices for Installation and Maintenance
Proper installation of a terminal strip is the first line of defense against electrical failure. Start by stripping the wire precisely to the length recommended by the manufacturer. If you are using stranded wire, it is highly recommended to use wire ferrules. These metal sleeves crimped onto the end of the wire prevent stray strands from breaking off, ensure a better contact surface area, and improve the longevity of the connection.
Labeling is another critical step. A system that is not properly identified becomes a liability during maintenance. Utilize industry-standard markers or printer tags to label every circuit. When tightening screw-type terminals, always use the correct torque settings specified by the manufacturer. Over-tightening can strip the screw threads or crush delicate wire strands, while under-tightening leads to high-resistance joints and potential heat buildup.
💡 Note: Periodically inspect your terminal blocks during routine maintenance cycles. Check for signs of discoloration (heat damage) or loose screws, especially in environments exposed to heat or mechanical vibration.
Common Applications in Modern Industry
The applications for a terminal strip are virtually endless. In HVAC systems, they act as the junction between thermostats and air handlers. In renewable energy projects, they are used to bridge connections between solar arrays and charge controllers. Even in home automation, they provide a reliable way to organize complex sensor wiring.
Beyond simple connections, some advanced models include features like built-in LED indicators, fuse holders, or even disconnect switches within the block itself. These integrated solutions save precious panel space, allowing engineers to pack more functionality into smaller electrical enclosures. By consolidating multiple functions into a single terminal strip footprint, installation times are drastically reduced, and the density of components per square inch increases, which is a major advantage in compact control cabinet design.
Safety Considerations
Electricity is inherently dangerous, and working with exposed connections requires strict adherence to safety protocols. Before working on any terminal strip, always verify that the power is disconnected and locked out. Use high-quality insulating tools to prevent accidental shorts if you are working in a crowded panel. Furthermore, ensure that the chosen strips are rated for the environment they are installed in—using standard plastic components in a high-temperature industrial oven or a chemical processing plant would lead to rapid degradation of the insulating material.
Effective wiring management is the backbone of any robust electrical system. By utilizing the correct terminal strip, you ensure that your connections are not only organized but also mechanically sound and electrically reliable. Whether you are dealing with low-voltage signal wiring or high-current power distribution, the modularity and safety provided by these components are unmatched. By following proper installation techniques, respecting current and voltage ratings, and maintaining your hardware through regular inspections, you can prevent downtime and extend the life of your equipment. As technology advances, these components continue to evolve, offering faster, more reliable, and more compact ways to connect our world, proving that even the simplest of electrical hardware plays a critical role in the sophistication of modern engineering.
