Thyroid Ima Artery

The human vascular system is a masterpiece of biological engineering, featuring a complex network of vessels designed to supply oxygenated blood to every tissue in the body. Among these critical pathways, the thyroid ima artery—also known as the arteria thyroidea ima—represents one of the most significant anatomical variations in the neck. While not present in everyone, its existence is a vital consideration for surgeons, radiologists, and anatomists alike. Understanding this artery is not merely an academic exercise; it is essential for preventing complications during surgical procedures involving the thyroid gland or the anterior neck region.

Table of Contents

What is the Thyroid Ima Artery?

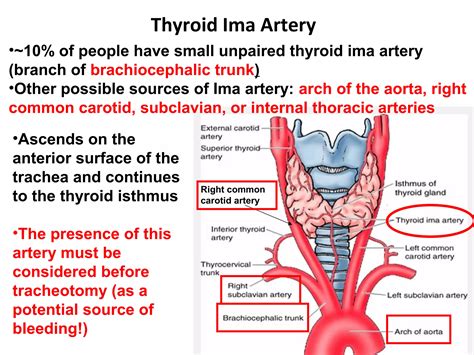

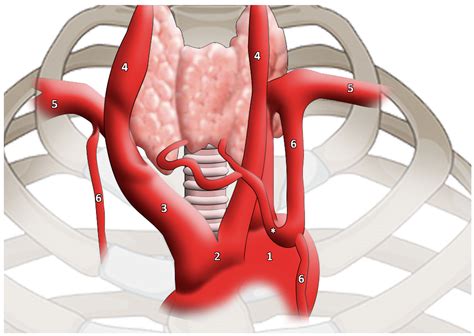

The thyroid ima artery is an accessory vessel that provides blood supply to the thyroid gland. Unlike the standard blood supply, which typically comes from the superior and inferior thyroid arteries, the thyroid ima artery arises from a different source—most commonly the brachiocephalic trunk (also known as the innominate artery). In some instances, it may also branch from the right common carotid artery, the aortic arch, or the internal thoracic artery.

This artery travels upward in front of the trachea to reach the lower part of the thyroid gland. Because it takes an unconventional route, it can be easily overlooked during routine examinations and, more importantly, during surgical procedures in the neck.

Prevalence and Clinical Significance

Anatomical studies suggest that the thyroid ima artery is present in approximately 3% to 10% of the population. While it is considered an anatomical variation rather than an anomaly, its clinical relevance is high. When present, the artery is usually small, but it can sometimes be as large as the standard thyroid arteries. Its significance primarily lies in its potential to complicate surgical interventions, such as:

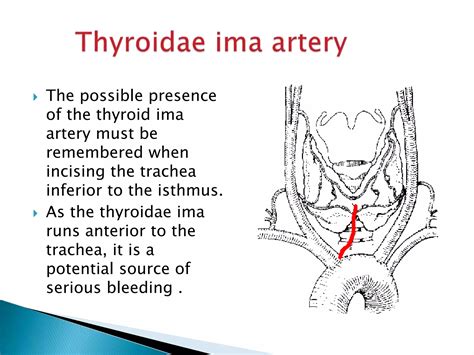

Tracheostomy: During this procedure, the surgeon may inadvertently cut the artery if it lies directly over the trachea, leading to significant, unexpected bleeding.
Thyroidectomy: If a surgeon is unaware of this vessel, they might injure it, causing hemorrhage in a critical area where visibility is already limited.
Neck Dissections: Complex surgeries in the neck require a thorough mapping of vascular structures to avoid injury.

Anatomical Variations: A Quick Comparison

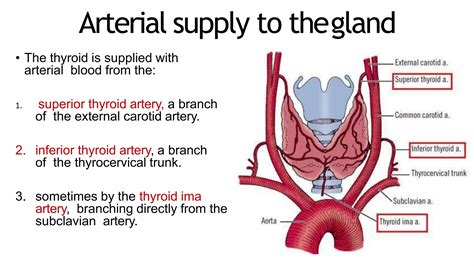

To better understand how the thyroid ima artery fits into the broader vascular landscape, it is helpful to look at how it compares to the primary thyroid blood supply. The following table illustrates the key differences between the standard arteries and this variant.

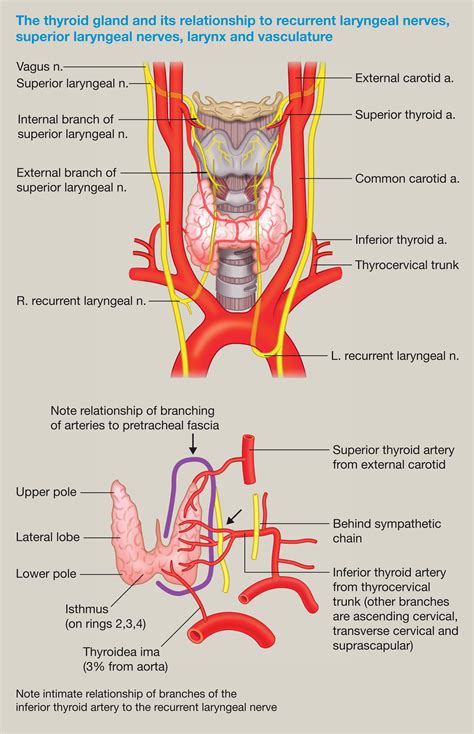

Artery Name	Typical Origin	Primary Target
Superior Thyroid Artery	External Carotid Artery	Upper pole of the thyroid
Inferior Thyroid Artery	Thyrocervical Trunk	Lower pole and posterior thyroid
Thyroid Ima Artery	Brachiocephalic Trunk / Aorta	Isthmus and lower thyroid

⚠️ Note: Always prioritize pre-operative imaging, such as CT angiography, when planning neck surgeries, as the presence of this artery is often unpredictable.

Diagnostic Imaging and Identification

Identifying the thyroid ima artery before a surgical procedure is the best way to prevent intraoperative complications. Modern imaging techniques have made this much easier than in the past. Radiologists look for specific markers when reviewing imaging studies of the neck.

Common diagnostic methods include:

CT Angiography (CTA): This is the gold standard for visualizing vascular anomalies. It provides a detailed 3D reconstruction that allows surgeons to see the origin and path of the thyroid ima artery clearly.
Color Doppler Ultrasound: While less comprehensive than CT, ultrasound can identify the vessel by detecting blood flow in the anterior midline of the neck.
Magnetic Resonance Angiography (MRA): Used in cases where ionizing radiation must be avoided, MRA provides excellent contrast of soft tissues and blood vessels.

When reviewing these images, medical professionals specifically look for a vessel ascending along the anterior surface of the trachea. Because the artery is often thin, high-resolution imaging is necessary to distinguish it from other structures like veins or surrounding connective tissue.

Surgical Precautions and Best Practices

For surgeons performing procedures in the lower neck, acknowledging the potential existence of the thyroid ima artery is a fundamental safety step. Following specific protocols can mitigate the risk of injury. Surgeons should perform a meticulous dissection of the pre-tracheal fascia, staying alert for any vessel that does not conform to the standard anatomical template.

If the artery is identified, it should be carefully isolated. If it must be sacrificed to provide better surgical access, it should be ligated properly to prevent retraction and subsequent bleeding into the mediastinum, which could lead to severe hematoma formation.

💡 Note: In patients with a known goiter or large thyroid mass, the displacement of surrounding structures may make the thyroid ima artery appear in a slightly different position than expected.

The Role of Anatomical Knowledge in Patient Safety

The study of anatomical variations like the thyroid ima artery underscores the importance of personalized medicine. No two patients are exactly the same, and the "textbook" anatomy learned in medical school is a baseline rather than a universal rule. By maintaining a high index of suspicion for vascular variations, medical teams can significantly improve patient outcomes and reduce the incidence of preventable surgical accidents.
