When it comes to the reliability of your vehicle, the electrical system is the unsung hero that keeps everything running smoothly. At the heart of this system lies the top post battery, the most common and recognizable power source found in cars, trucks, and marine vessels. Understanding how to properly maintain, select, and install this specific battery type is essential for any vehicle owner who wants to avoid the frustration of a dead engine or poor electrical performance. Whether you are a weekend DIY enthusiast or simply looking to understand your vehicle better, mastering the basics of top post batteries will save you time, money, and stress on the road.
What Defines a Top Post Battery?

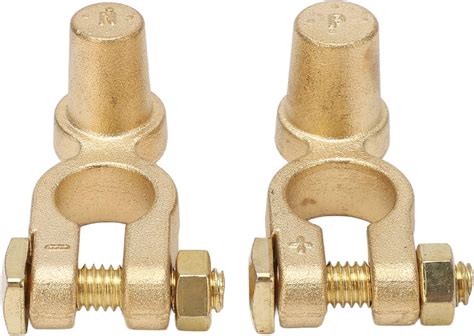

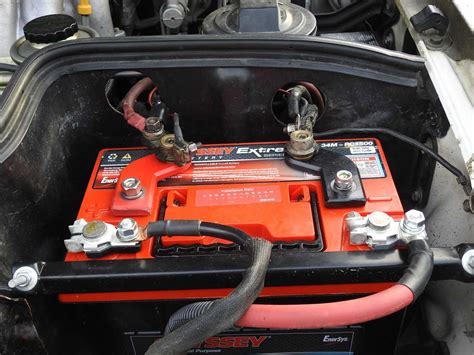

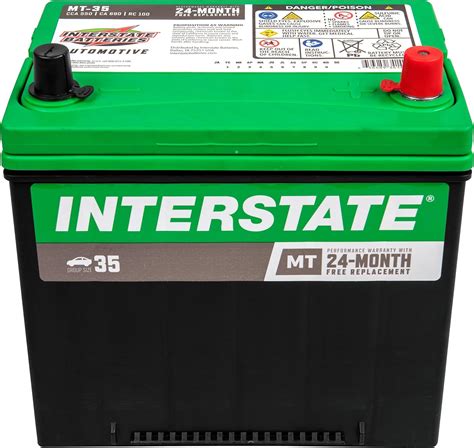

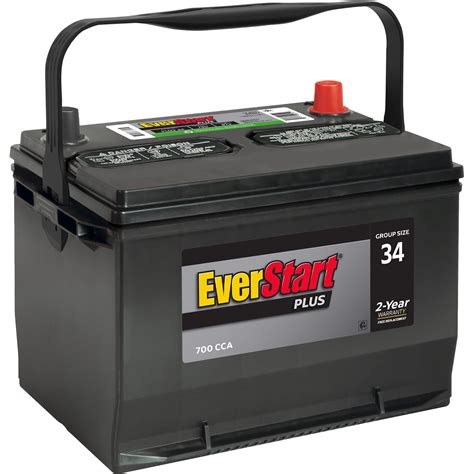

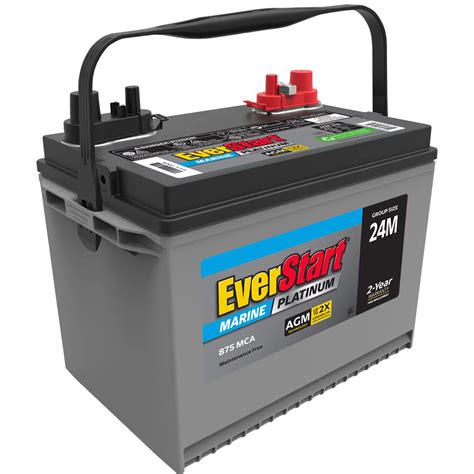

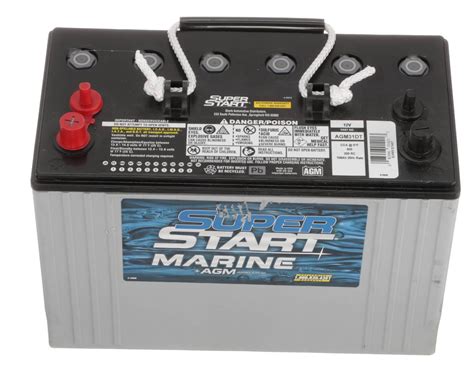

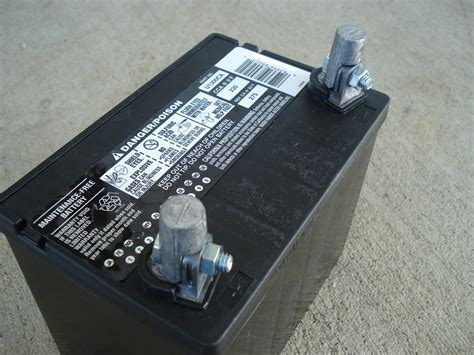

A top post battery is defined by the location and design of its terminals. Unlike side-terminal batteries, where cables are attached to the side of the casing, top post batteries feature lead-alloy posts positioned on the top surface. These posts are tapered, with the positive terminal being slightly larger than the negative terminal to prevent accidental reversal of polarity during installation.
The design is favored by manufacturers for several key reasons:
- Accessibility: The top-mounted configuration makes it significantly easier to access the terminals for cleaning or attaching jumper cables.
- Tight Connection: The tapered post design allows for a secure, high-pressure clamp connection that resists vibration.

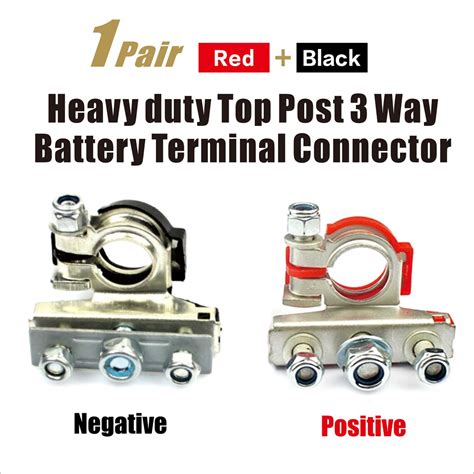

- Versatility: These batteries are compatible with a wide range of aftermarket accessories, such as battery maintainers or custom audio wiring.
Choosing the Right Battery for Your Needs
Selecting the right top post battery involves more than just picking one that fits the physical dimensions of your tray. You must consider the specific energy requirements of your vehicle, often referred to as Cold Cranking Amps (CCA) and Reserve Capacity (RC).
| Feature | Importance |
|---|---|
| Cold Cranking Amps (CCA) | Determines the battery's ability to start an engine in freezing temperatures. |
| Reserve Capacity (RC) | Measures how long the battery can run the car's electronics if the alternator fails. |
| Group Size | Ensures the battery physically fits the tray and aligns with your cable reach. |
⚠️ Note: Always refer to your vehicle owner's manual for the minimum CCA requirements. Installing a battery with lower-than-recommended specs can lead to premature failure and starting issues.
Installation Best Practices
Proper installation of your top post battery is critical for longevity. A loose connection or heavy corrosion can increase resistance, leading to slow starts and potential electrical damage. Follow these steps to ensure a professional-grade installation:
- Safety First: Wear protective eyewear and gloves. Ensure the engine is off and the parking brake is engaged.
- Disconnect Properly: Always disconnect the negative (black/-) terminal first. This prevents short-circuiting your tools against the chassis if you accidentally touch the frame while loosening the positive terminal.

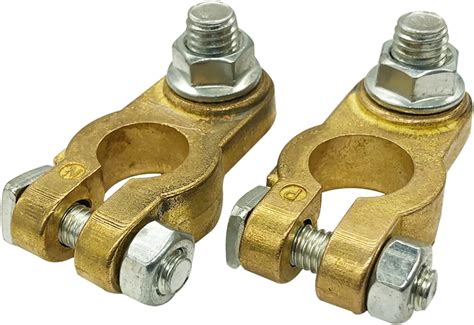

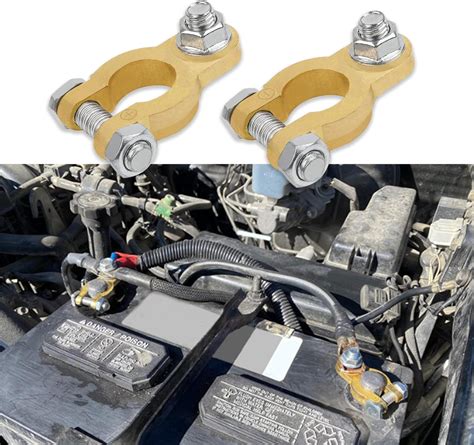

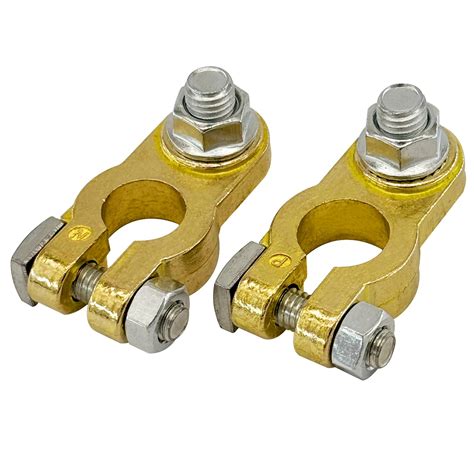

- Clean the Cables: Before installing the new battery, use a wire brush to clean the internal surface of the cable terminals. If you see white or blue crust, use a baking soda and water solution to neutralize the acid.
- Install in Reverse: Place the new battery in the tray. Connect the positive (red/+) terminal first, followed by the negative terminal.
- Tighten Securely: Ensure the terminals are tight enough that they cannot be twisted by hand.
💡 Note: Applying a thin layer of terminal grease or a corrosion-preventative spray after installation will significantly extend the life of your connections by sealing them off from moisture.
Troubleshooting Common Issues
Even the best top post battery can encounter problems over time. The most frequent issues are usually related to environmental exposure or electrical loads. If your vehicle struggles to start, check the voltage with a multimeter. A fully charged battery should read approximately 12.6 volts. If the reading is significantly lower, you may be dealing with a parasitic draw or an aging cell.
Keep an eye out for these warning signs:
- Green/White Powdery Buildup: This indicates corrosion, which blocks the flow of electricity. Clean it immediately.
- Swollen Casing: This suggests the battery has been overcharged or subjected to extreme heat, and it should be replaced immediately as it poses a safety risk.
- Frequent "Clicking" Sounds: If you turn the key and hear rapid clicking, it is a classic sign of low voltage or a loose terminal connection at the top post.
Maintenance for Maximum Longevity

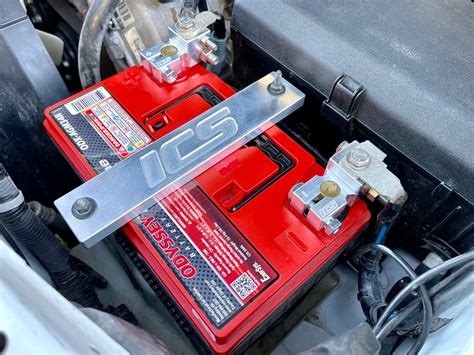

To extend the life of your top post battery beyond the typical 3-to-5-year range, regular maintenance is non-negotiable. During your routine oil changes, take five extra minutes to inspect the battery. Check the hold-down bracket to ensure the battery isn't vibrating in its tray, as excessive movement can cause internal plate damage.
Furthermore, if you live in a climate with extreme temperatures, consider using a trickle charger if the vehicle sits idle for extended periods. Lead-acid batteries self-discharge over time, and allowing the charge to drop to zero can permanently damage the battery's chemical storage capacity. By keeping the voltage stable, you ensure that the battery is ready to provide peak power whenever you need it.
In the final analysis, treating your top post battery as a vital component rather than an afterthought is the secret to a dependable vehicle. From understanding the importance of proper terminal maintenance to selecting the correct cold cranking amperage for your climate, these small steps provide a foundation of reliability. Regularly inspecting your connections, keeping the posts clean, and monitoring your electrical usage will ensure that your engine turns over quickly and your vehicle’s electronics remain powered regardless of the conditions. By staying proactive with these simple maintenance habits, you can avoid the inconvenience of roadside breakdowns and get the most out of your investment for years to come.
