Maintaining the health of your vehicle’s transmission is one of the most critical aspects of long-term automotive care. Among the various components under the hood, the transmission dipstick serves as the primary diagnostic tool for monitoring fluid levels and condition. Many drivers often overlook this component, assuming that transmission fluid lasts the lifetime of the vehicle, but failing to check it regularly can lead to catastrophic transmission failure. By understanding how to properly locate, read, and maintain your fluid levels, you can extend the lifespan of your vehicle significantly while avoiding costly repairs.
Understanding the Role of the Transmission Dipstick

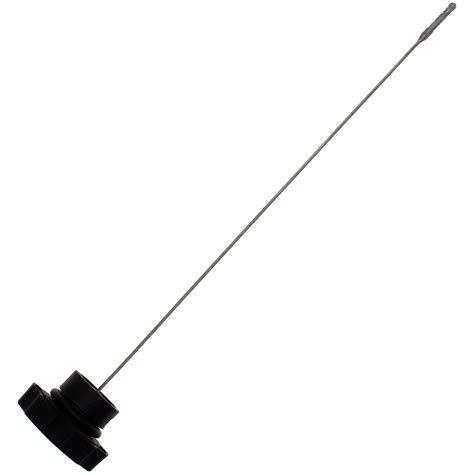

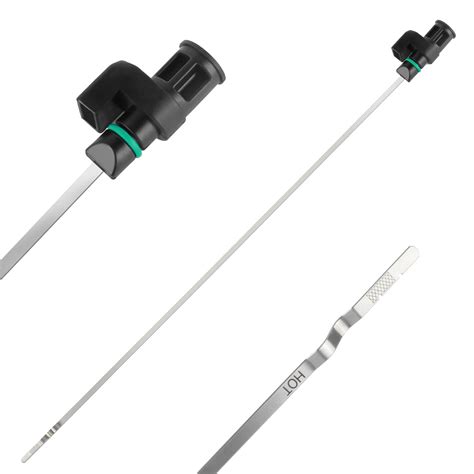

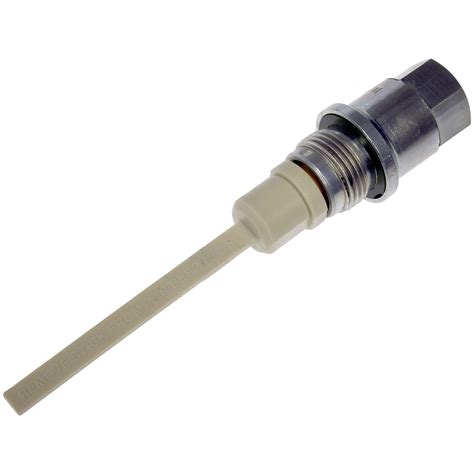

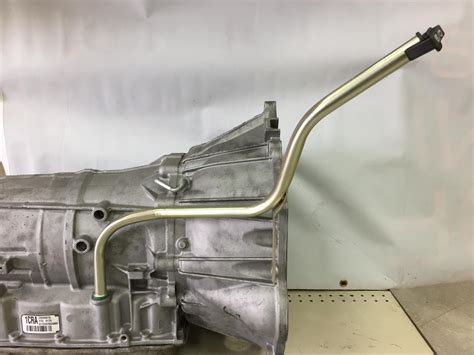

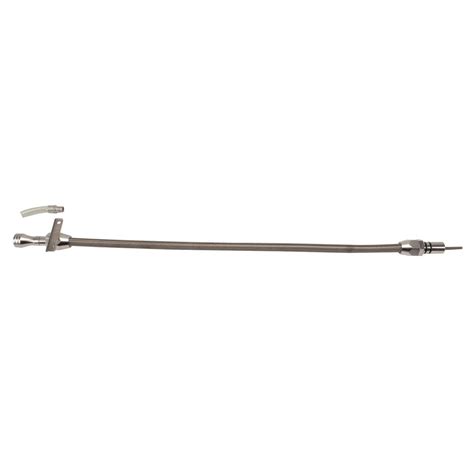

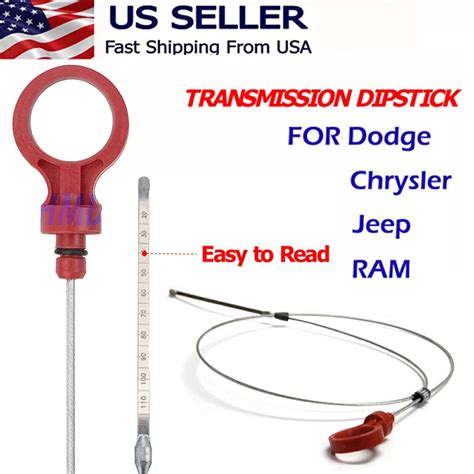

The transmission dipstick is a slender metal or plastic rod inserted into the transmission fill tube. Its main purpose is to allow vehicle owners or mechanics to assess the quantity and quality of the transmission fluid. Transmission fluid acts as both a lubricant and a cooling agent for the internal gears and clutches of your gearbox. Without sufficient fluid, friction increases, causing the internal components to overheat and eventually warp or break.
Modern vehicles have evolved significantly. While older cars almost always featured a clearly marked transmission dipstick accessible from the engine bay, many newer models have shifted toward "sealed" transmissions. These vehicles may lack a traditional dipstick entirely, requiring a specialized scan tool or a specific service procedure to check the fluid level. However, for those who drive vehicles equipped with a traditional dipstick, it remains the most reliable, DIY-friendly way to gauge transmission health.
Signs That Your Transmission Fluid Needs Attention
Before you even reach for the dipstick, your car might be giving you subtle hints that something is wrong. Paying attention to these warning signs can prevent you from driving with low or contaminated fluid. Common indicators include:
- Slipping Gears: If your engine revs higher than normal but the car does not accelerate accordingly, it may indicate low fluid levels.
- Delayed Engagement: A noticeable pause or "hesitation" when you shift from Park into Drive or Reverse.
- Burning Smell: A sweet or burnt odor emanating from the engine bay is often a sign of overheating fluid.
- Rough Shifting: Feeling a jolt or "thud" when the vehicle switches between gears while driving.
- Fluid Leaks: Any reddish or pinkish fluid stains on your garage floor or driveway are a clear indication of a leak that needs immediate investigation.
How to Correctly Read the Transmission Dipstick
Reading your fluid level correctly requires more than just pulling out the rod. Follow these professional steps to ensure an accurate reading:
- Warm Up the Engine: Unlike engine oil, transmission fluid expands when hot. Most manufacturers require the engine to be at normal operating temperature. Drive the vehicle for about 10–15 minutes before performing the check.
- Park on Level Ground: A sloped surface will give you a false reading, potentially leading to overfilling or underfilling.
- Engage the Gears: With the engine idling, move the gear shifter through every position (P-R-N-D-L) and then back to Park. This ensures the fluid is circulated through the valve body.

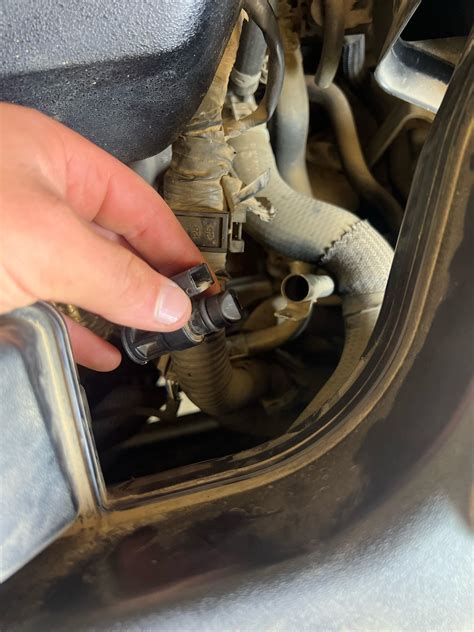

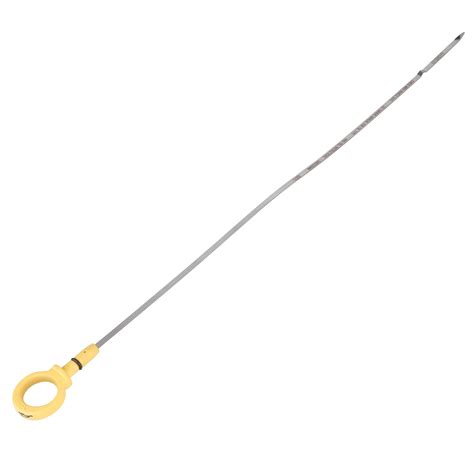

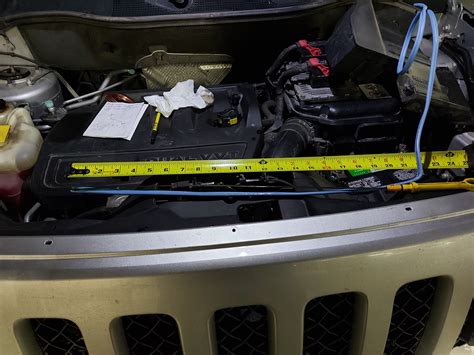

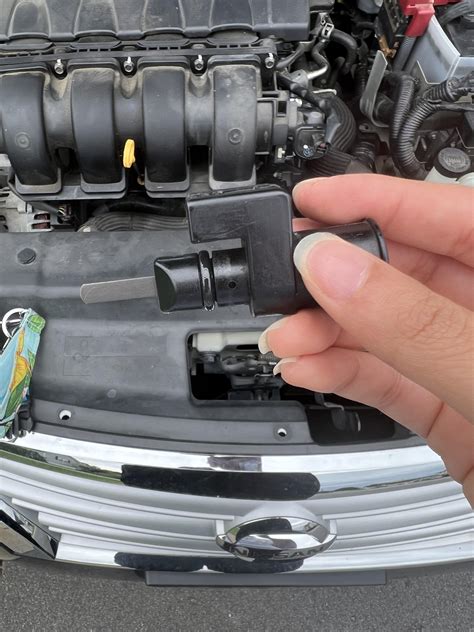

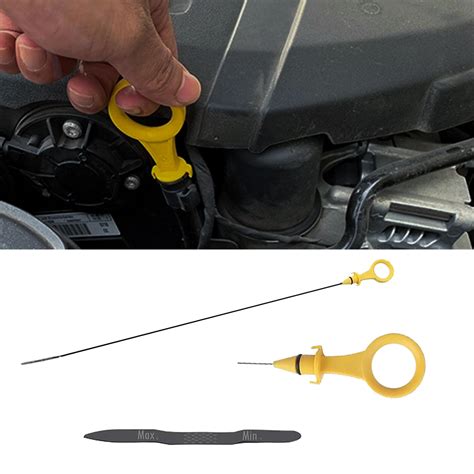

- Locate the Dipstick: Look for a handle that is typically colored red, yellow, or black. It is usually found near the engine block or the firewall on the passenger side.

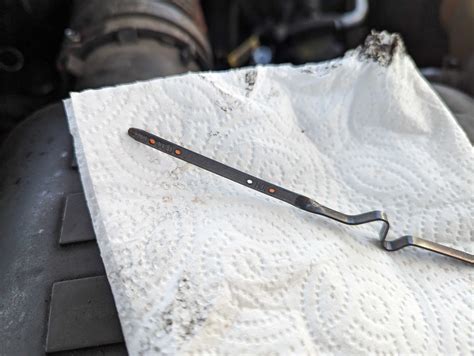

- Clean and Reinsert: Pull the dipstick out, wipe it clean with a lint-free cloth, push it all the way back in, and pull it out again to see the actual fluid line.
| Observation | Meaning | Action Required |
|---|---|---|
| Bright Red/Pink | Healthy fluid condition. | No action needed. |
| Dark Brown/Black | Burnt or contaminated. | Schedule a fluid flush immediately. |
| Bubbles/Foam | Air in the system/Overfilled. | Check for leaks or drain excess fluid. |
| Low Level | Possible leak. | Top up fluid and inspect for leaks. |
⚠️ Note: Always consult your owner's manual for the specific type of transmission fluid required for your vehicle. Mixing incompatible fluid types can cause severe damage to the transmission seals and internal components.
Interpreting Fluid Condition
The color of the fluid on the transmission dipstick tells a story. New transmission fluid is typically translucent and bright red. As it ages, it will naturally darken due to heat and debris. However, if the fluid appears black and smells like burnt toast, it is a sign that the clutches inside the transmission have been slipping and burning. In this case, simply topping off the fluid is not enough; you are likely looking at a mechanical issue that requires professional intervention.
Safety Precautions While Checking Fluid
Safety should be your primary concern when working around a running engine. Because you are checking the fluid while the engine is warm and idling, you must be extremely cautious. Ensure your parking brake is firmly engaged. Keep loose clothing, jewelry, and long hair away from moving parts like the cooling fans and serpentine belts. If you have any doubt about where the transmission dipstick is or how to perform the procedure, it is always safer to have a certified mechanic assist you.
💡 Note: Do not overfill the transmission. An overfilled transmission can cause the fluid to churn, creating foam that prevents the transmission from shifting properly and leads to internal pressure buildup.
Final Thoughts on Transmission Longevity
Proactive maintenance is the best strategy for avoiding expensive transmission rebuilds or replacements. By making the inspection of your transmission dipstick a regular part of your vehicle maintenance routine—perhaps once every oil change—you catch small issues before they snowball into major failures. Consistency in checking levels, combined with scheduled fluid changes as recommended by your vehicle manufacturer, will keep your drivetrain running smoothly for years to come. Remember, the health of your vehicle is directly tied to the attention you pay to these simple, often overlooked checks. Stay consistent, stay informed, and enjoy a reliable driving experience by keeping your transmission properly monitored.
