Modern automatic transmissions are marvels of engineering, relying on a complex network of sensors and computers to ensure seamless gear shifts and optimal engine performance. At the heart of this electronic ecosystem lies the Transmission Fluid Pressure Sensor (often referred to as the TFPS or transmission pressure switch). This critical component monitors the hydraulic pressure within the transmission’s valve body and relays that data to the Transmission Control Module (TCM). When this sensor begins to fail, the entire vehicle's drivability is compromised, often resulting in erratic shifting, limp mode activation, or even total transmission failure if left unaddressed.

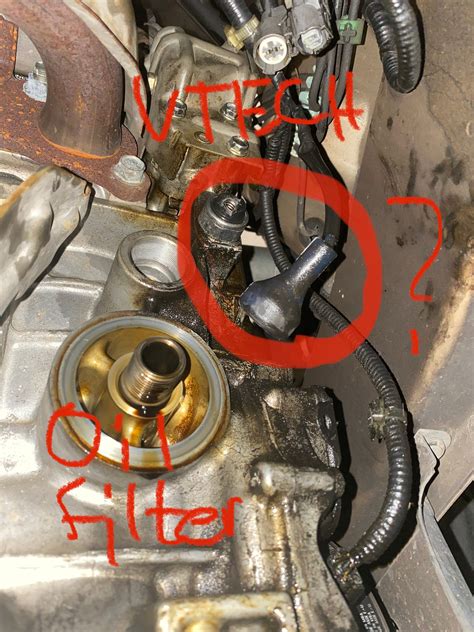

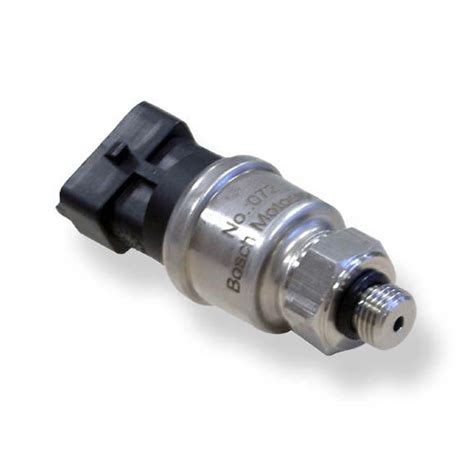

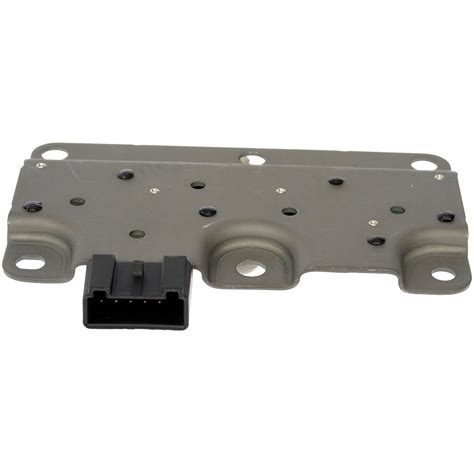

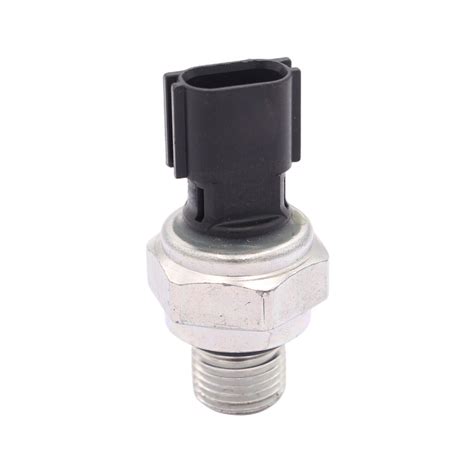

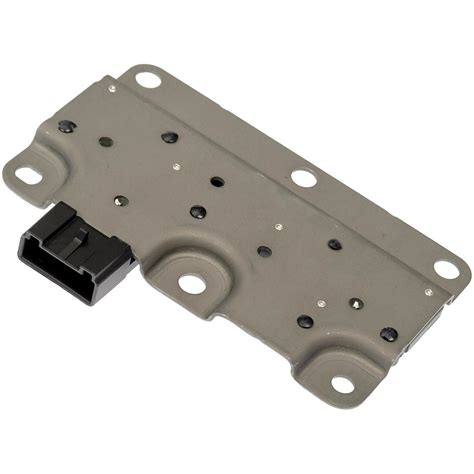

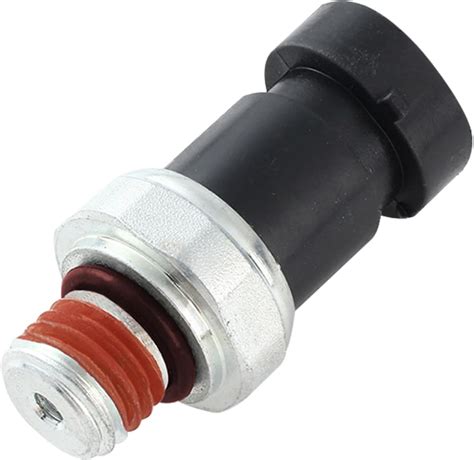

What is a Transmission Fluid Pressure Sensor and Why Does It Matter?
The Transmission Fluid Pressure Sensor is responsible for measuring the internal oil pressure as the transmission fluid moves through various circuits. By constantly measuring this pressure, the TCM can determine exactly when to engage clutches and bands to initiate a gear change. Without accurate data from this sensor, the computer cannot modulate the pressure effectively, leading to harsh shifts or the inability for the transmission to find the correct gear.
In many vehicles, the sensor acts as a safety watchdog. If the computer detects that the pressure is too high or too low based on the sensor's input, it may restrict the transmission to a single gear—a state commonly known as "limp mode"—to prevent catastrophic mechanical damage. Understanding the health of your Transmission Fluid Pressure Sensor is therefore vital for prolonging the lifespan of your vehicle’s drivetrain.
Common Symptoms of a Faulty Pressure Sensor
Identifying a failing sensor early can save you thousands of dollars in transmission rebuilds. Because the transmission is a closed system, signs of failure often manifest as behavioral issues while driving. Look out for the following warning signs:
- Check Engine Light (CEL): The most common indicator. Codes like P0840 through P0848 specifically point toward the pressure sensor circuit.
- Erratic or Harsh Shifting: If the sensor sends incorrect data, the TCM may command shifts that are too firm, too soft, or delayed.
- Limp Mode Activation: The vehicle locks into a single gear (usually 2nd or 3rd) to prevent damage.
- Delayed Engagement: A noticeable pause or "clunk" when shifting from Park into Drive or Reverse.
- Reduced Fuel Economy: Inefficient transmission operation puts additional load on the engine, forcing it to work harder.
Diagnostic Troubleshooting Table
The following table outlines how to interpret common symptoms associated with pressure sensor malfunctions to help you prepare for a mechanic’s visit or DIY repair.
| Symptom | Potential Cause | Recommended Action |
|---|---|---|
| Hard shifting between 1st and 2nd gear | Stuck pressure solenoid or faulty sensor | Scan TCM codes and check fluid condition |
| Transmission stays in 3rd gear | Limp mode triggered by sensor fault | Inspect wiring harness for corrosion |
| Overheating transmission light | Inaccurate pressure reading causing slip | Check fluid level and sensor calibration |
How to Replace the Sensor

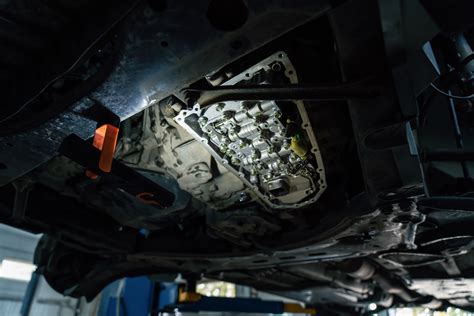

Replacing a Transmission Fluid Pressure Sensor can range from a simple job to a complex one, depending on whether the sensor is mounted externally on the transmission case or internally on the valve body. For internal sensors, you will need to drain the transmission fluid and remove the oil pan.
- Scan the System: Always use an OBD-II scanner to confirm the specific fault code before purchasing parts.
- Secure the Vehicle: Raise the vehicle on jack stands to ensure a safe working environment.
- Drain the Fluid: Place a catch pan underneath and remove the transmission pan bolts carefully.
- Access the Sensor: Locate the wiring harness connector. Carefully disconnect it and unscrew the sensor from the valve body.
- Install the New Unit: Thread the new Transmission Fluid Pressure Sensor by hand to avoid cross-threading, then tighten to manufacturer specifications.
- Refill and Test: Reinstall the pan with a new gasket, refill with manufacturer-recommended ATF (Automatic Transmission Fluid), and clear the fault codes.
⚠️ Note: Always use OEM or high-quality aftermarket sensors. Cheap, low-quality sensors often have poor calibration that can lead to immediate repeat failure or erratic shifting right out of the box.
Maintaining Transmission Health
While sensors can fail due to electrical fatigue, they are also prone to damage from contaminated transmission fluid. Metal shavings and debris circulating within the fluid can clog the small ports inside the Transmission Fluid Pressure Sensor, causing it to report false readings. Regularly flushing your transmission fluid according to your owner's manual interval is one of the best ways to keep the entire hydraulic control system clean and functional.
Additionally, monitor your transmission temperature. Excessive heat breaks down the chemical composition of the fluid, which can cause rubber seals and O-rings—often found near the sensor—to shrink or crack. If you notice your transmission running hot under normal driving conditions, it may be an early sign that your sensor is struggling to regulate pressure correctly, or that a larger internal issue is developing.
If you suspect an electrical issue, always inspect the wiring harness leading to the transmission before assuming the sensor itself is the culprit. Road vibration and exposure to the elements can cause the pins inside the connector to corrode or break. Using a contact cleaner on the terminal pins can often resolve intermittent signal issues without needing to replace the sensor entirely. Always double-check your vehicle's service manual for specific sensor voltage ranges to verify the component's functionality with a multimeter.
In summary, the transmission fluid pressure sensor serves as the eyes and ears of your vehicle’s automatic transmission. By keeping an eye out for signs like harsh shifts, check engine lights, or unusual transmission behavior, you can address sensor failures before they snowball into costly repair bills. Regular maintenance of your transmission fluid and prompt attention to diagnostic trouble codes are the most effective strategies for ensuring your vehicle continues to shift smoothly for years to come. Whether you choose to perform the replacement yourself or seek professional assistance, understanding the role of this sensor empowers you to make informed decisions about your car’s mechanical well-being.
