Your vehicle’s automatic transmission is a masterpiece of complex engineering, relying on a delicate balance of fluid pressure, friction, and heat management to function correctly. At the heart of this system lies the Transmission Temperature Sensor (TTS), a small but critical component that acts as the eyes and ears of your car’s computer. Often overlooked until a warning light illuminates the dashboard, this sensor plays a vital role in preventing catastrophic transmission failure by monitoring the thermal state of the transmission fluid. Understanding how this sensor works and what happens when it fails can save you thousands of dollars in major repair costs.
Understanding the Role of the Transmission Temperature Sensor

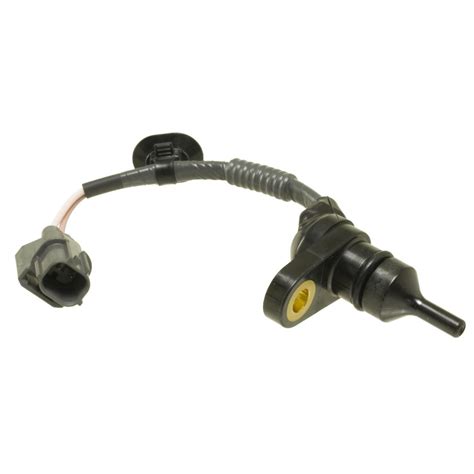

The Transmission Temperature Sensor is essentially a thermistor—a resistor that changes its electrical resistance based on temperature. The Transmission Control Module (TCM) or the Engine Control Module (ECM) sends a reference voltage to the sensor. As the transmission fluid heats up, the resistance in the sensor changes, sending a corresponding signal back to the computer. This data allows the vehicle to make split-second decisions to protect the mechanical components.
Why is this data so critical? Automatic transmissions operate within a specific temperature range, typically between 175°F and 225°F. If the fluid gets too cold, the transmission may not shift gears smoothly, leading to sluggish performance. If it gets too hot, the fluid begins to degrade, losing its lubricating properties and causing the clutch packs and seals to burn out prematurely.
Key Functions Controlled by the Sensor
The information gathered by the Transmission Temperature Sensor is used by the vehicle’s management system to control several vital functions:
- Shift Scheduling: Under cold conditions, the computer may delay upshifts to help the engine and transmission reach operating temperature faster.
- Torque Converter Lockup: The system prevents the torque converter from locking up until the fluid is warm enough, which improves driveability.
- Cooling Fan Activation: If the sensor detects dangerously high temperatures, the system may activate secondary cooling fans or adjust engine timing to reduce the thermal load.
- Limp Mode Initiation: If the temperature exceeds safe parameters, the vehicle may enter "limp mode," restricting gear selection to prevent further damage.
Common Symptoms of a Failing Sensor
When the Transmission Temperature Sensor begins to fail, it often sends erratic data to the computer. Because the computer relies on this sensor to shift gears, even a minor malfunction can cause noticeable issues. Recognizing these symptoms early is essential for preventative maintenance:
| Symptom | Potential Impact |
|---|---|
| Check Engine Light / Transmission Light | The computer detects an abnormal voltage signal. |
| Delayed or Erratic Shifting | The transmission fails to find the right gear. |
| Transmission Overheating Warning | The sensor reports a false high temperature reading. |
| Poor Fuel Economy | The transmission stays in a lower gear longer than necessary. |
⚠️ Note: Always scan the vehicle for Diagnostic Trouble Codes (DTCs) using an OBD-II scanner before replacing the sensor. Codes like P0710, P0711, or P0712 specifically point toward an issue with the sensor circuit.
Diagnosing and Troubleshooting the System

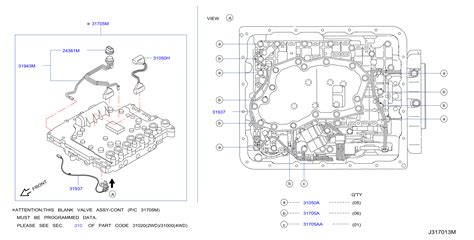

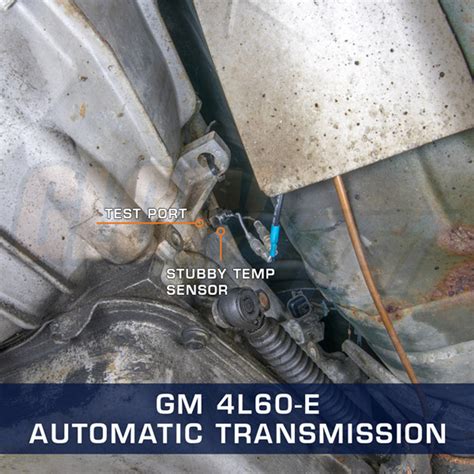

If you suspect your Transmission Temperature Sensor is faulty, a physical inspection is required. The sensor is typically located inside the transmission pan, mounted on the valve body or the wiring harness. Replacing it often requires draining the transmission fluid, which makes this a more involved process than changing a simple spark plug.
To test the sensor, you will need a digital multimeter. By measuring the resistance of the sensor across different temperatures, you can compare the results against the manufacturer’s specifications. If the resistance values remain static or are completely outside the range, the sensor must be replaced. In many cases, it is also wise to inspect the wiring harness for signs of chafing, melting, or corrosion, as electrical connection issues are frequently mistaken for faulty sensors.
⚙️ Note: When replacing the transmission temperature sensor, it is the perfect time to perform a routine fluid and filter change, as the transmission pan must be removed to access the component.
Preventing Overheating to Prolong Sensor Life
While sensors are prone to wear over time, you can extend the life of your entire transmission system by keeping temperatures in check. Heavy towing, stop-and-go traffic in hot climates, and aggressive driving can all put unnecessary stress on your transmission fluid and the temperature sensor.
- Install an auxiliary cooler: If you tow heavy loads, an external transmission oil cooler can significantly lower fluid temperatures.
- Regular fluid flushes: Old, degraded fluid loses its ability to transfer heat effectively, leading to higher operating temperatures.
- Monitor your gauges: If your vehicle is equipped with a transmission temperature gauge, keep an eye on it during steep climbs or hot summer days.
The Transmission Temperature Sensor serves as an essential guardian for your vehicle’s most complex component. By providing precise data to the transmission control unit, it ensures that your vehicle shifts efficiently, consumes fuel properly, and avoids the internal damage that heat can cause. Whether you are performing routine maintenance or troubleshooting a specific shifting issue, paying attention to this sensor can be the difference between a simple, inexpensive repair and a total transmission rebuild. Keep an eye on your dashboard, listen to how your transmission shifts, and address potential sensor issues promptly to ensure years of smooth, reliable driving.
