Triple Beam Balance

In the vast landscape of laboratory instrumentation, few tools possess the enduring legacy and reliability of the Triple Beam Balance. Whether you are walking into a high school chemistry lab or a specialized research facility, this mechanical device often serves as the cornerstone of mass measurement. Unlike its digital counterparts that rely on complex sensors and electrical currents, the triple beam balance operates on the fundamental principles of physics—specifically, the concept of equilibrium. Its ability to provide consistent, accurate, and repeatable results without the need for batteries or power outlets makes it an indispensable tool for students and scientists alike.

Table of Contents

Understanding the Mechanics of a Triple Beam Balance

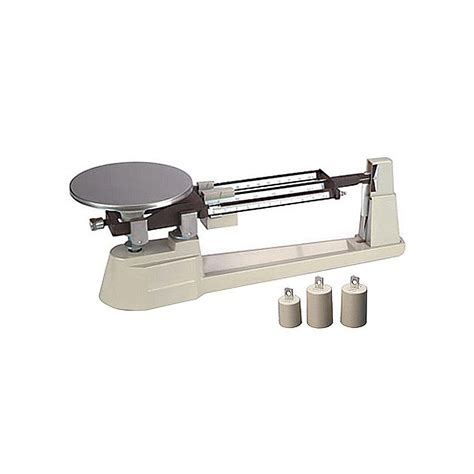

At its core, a triple beam balance works by comparing an unknown mass against known weights. It is called a "triple beam" because it features three distinct horizontal beams, each equipped with a sliding weight (also known as a poise) that corresponds to different increments of measurement. The balance functions on a lever system, where the object being weighed is placed on a pan, and the poises are adjusted until the pointer on the end of the beam aligns perfectly with a zero-mark indicator.

The three beams are generally calibrated as follows:

Setting Up for Accuracy

Before you begin any measurement, ensuring the balance is properly calibrated is paramount. A triple beam balance that is not "zeroed" will lead to compounding errors, rendering your experimental data useless. To calibrate, start by ensuring all sliding weights are moved to the far left at the zero position. Check the pointer on the far right; it should be perfectly aligned with the zero mark. If it is not, adjust the zero-adjust knob located under the pan until the balance reaches equilibrium.

Beam Position	Increment Scale	Precision Level
Back Beam	100g notches	Low (Coarse)
Middle Beam	10g notches	Medium
Front Beam	0.1g notches	High (Fine)

⚠️ Note: Always ensure the balance is placed on a flat, level surface away from vibrations or drafts. Air currents can easily influence the delicate poise system and lead to inaccurate readings.

Step-by-Step Guide to Measuring Mass

Mastering the use of a triple beam balance is a rite of passage for every science student. Following a systematic approach ensures consistency throughout your lab work. Here is how you can effectively measure mass:

Zero the balance: Confirm the poise weights are at zero and the pointer is level.
Place the object: Carefully place the sample on the weighing pan. If the object is a liquid or powder, ensure you use a weigh boat or beaker and "tare" the balance by accounting for the container’s mass first.
Adjust the coarse weight: Start with the middle beam (10g) or back beam (100g) depending on your estimation of the object’s weight. Move the poise until the pointer drops below the zero mark, then move it back one notch.
Fine-tune with the front beam: Once you have the object within a 10g range, slowly slide the front poise along the beam until the pointer moves back to the zero mark.
Sum the values: Once the pointer is perfectly centered, add the values indicated by all three beams to calculate the final mass.

💡 Note: Do not force the poises into the notches. They should slide smoothly and "click" into place. If you force them, you risk damaging the precision of the beam scales over time.

Maintenance and Care

The triple beam balance is a robust instrument, but it requires periodic maintenance to remain accurate. Because it relies on a knife-edge pivot system, cleanliness is vital. Dust, chemical spills, or debris in the pivot points can create friction, which prevents the beam from swinging freely and decreases sensitivity. Always wipe the pan after use and store the balance in a dust-free environment when not in operation.

Advantages Over Digital Scales

In an era of digital dominance, one might wonder why we still teach the use of the triple beam balance. The answer lies in the educational value and reliability. Digital scales can suffer from "drift," sensor failure, or interference from electromagnetic fields. A mechanical balance is immune to these issues. Furthermore, it teaches students the physical nature of mass—the sensation of balancing weights against an object provides a tactile understanding of physical properties that a digital readout simply cannot replicate.

For field researchers or those working in areas where electricity is unavailable, the triple beam balance remains the only viable option for precision weighing. Its ability to function in extreme conditions—from high humidity to dusty environments—makes it a truly versatile piece of hardware.

Final Thoughts

The triple beam balance remains a testament to the effectiveness of simple, elegant engineering. By relying on basic physics rather than complex electronics, it provides a reliable and educational window into the measurement of mass. Whether you are a student learning the fundamentals of laboratory procedure or a professional researcher requiring a backup to digital equipment, understanding how to operate and maintain this balance is a valuable skill. By keeping the instrument clean, ensuring it is level, and moving the weights with care, you can achieve highly accurate results that support the integrity of your work. As long as the basic principles of weight and balance hold true, this device will continue to be a staple in the scientific community, proving that sometimes, the traditional methods are indeed the most dependable.
