The ultrasound transducer serves as the cornerstone of modern diagnostic medical imaging, acting as the critical interface between the patient’s body and the imaging system. Often referred to as the "probe," this device is responsible for both emitting high-frequency sound waves and capturing the echoes that bounce back from internal tissues. Understanding the mechanics, maintenance, and clinical application of this technology is essential for healthcare professionals and biomedical engineers alike. As technology advances, the precision and versatility of these devices continue to redefine how clinicians visualize anatomy, detect pathologies, and guide interventional procedures in real-time.
The Fundamental Mechanics of Ultrasound Transducers

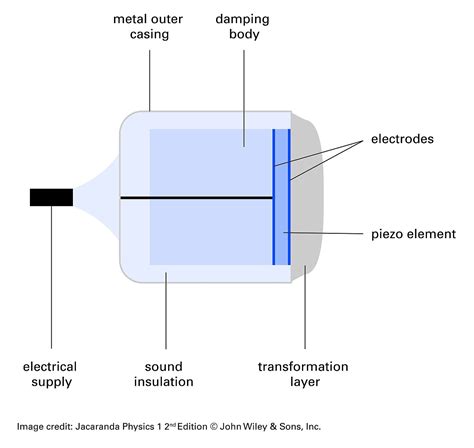

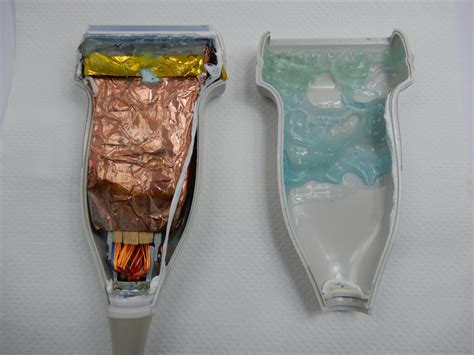

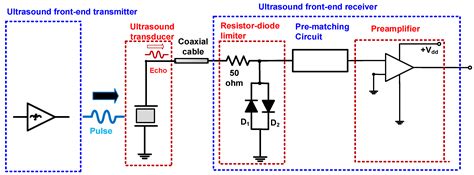

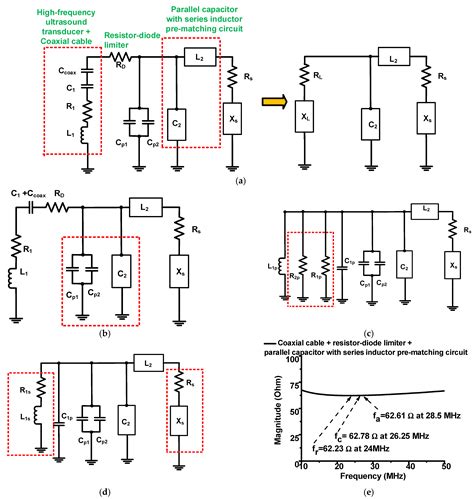

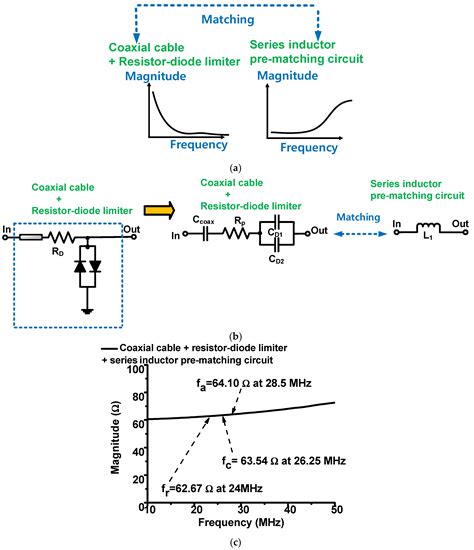

At the heart of every ultrasound transducer lies a series of piezoelectric crystals. When an electrical pulse is applied to these materials, they vibrate at high frequencies, generating ultrasonic waves that propagate through the body. Conversely, when the echoes return, the crystals convert the mechanical pressure of the sound waves back into electrical signals. These signals are then processed by the ultrasound machine to create detailed images of organs, blood flow, and structures.

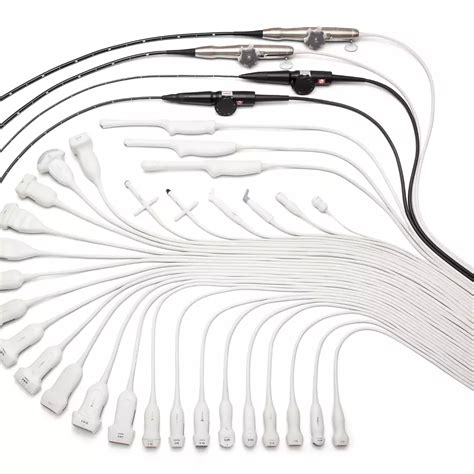

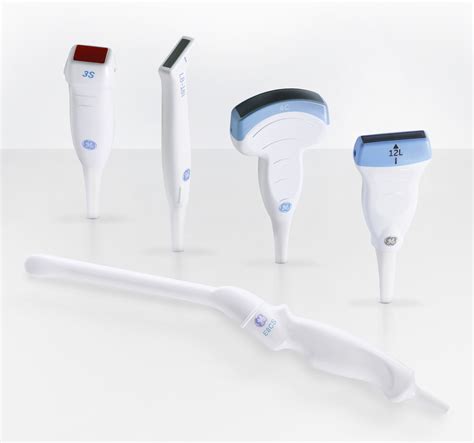

There are several types of transducers tailored to specific medical needs, categorized by their frequency range and footprint:

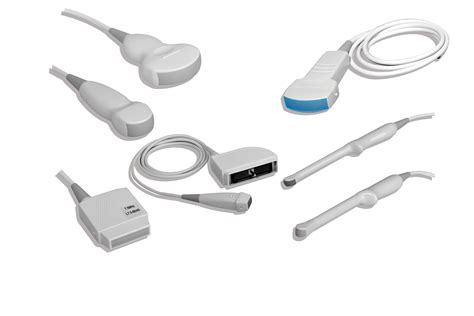

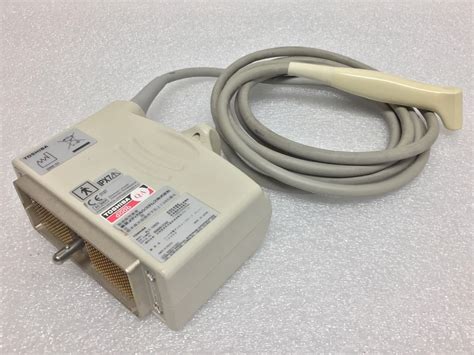

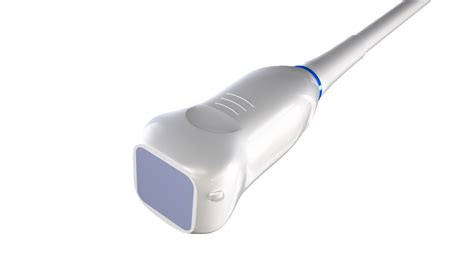

- Linear Array: Ideal for superficial structures like thyroids, breast tissue, and vascular imaging. These provide high-resolution images with a rectangular field of view.

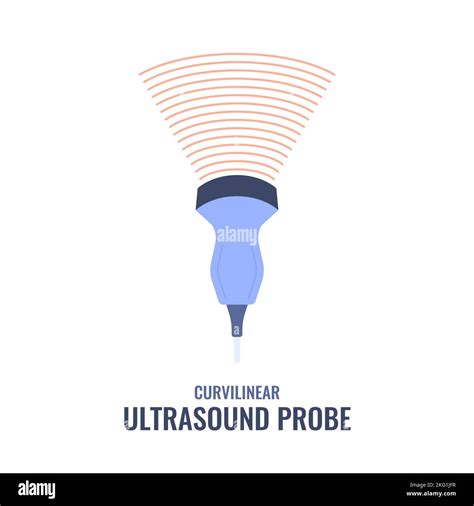

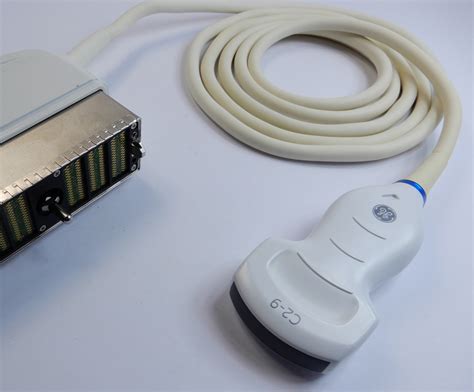

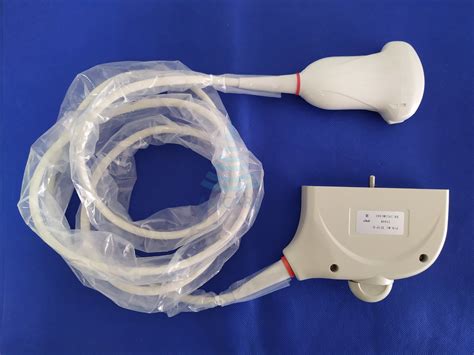

- Curvilinear (Convex) Array: Designed for deeper imaging, such as abdominal and obstetric exams, offering a wide field of view at a lower frequency.
- Phased Array: Known for a small footprint, these are perfect for cardiac imaging, allowing the beam to be steered between the ribs.

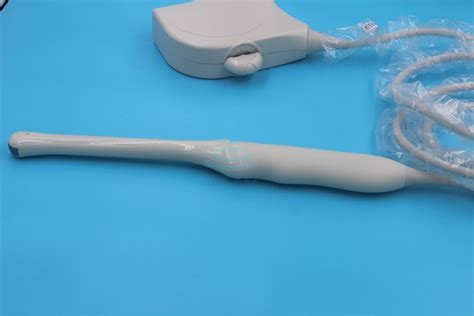

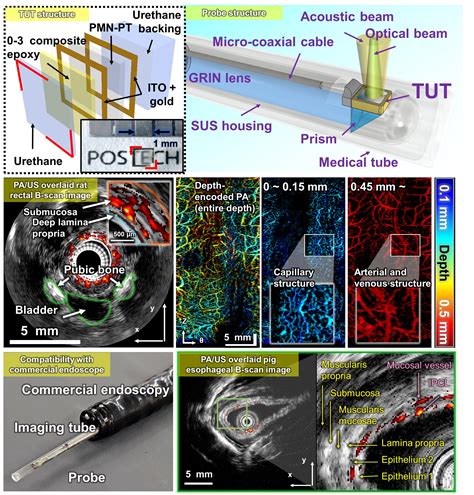

- Endocavitary: Specialized probes designed for internal scanning, such as transvaginal or transrectal procedures.
Choosing the Right Equipment for Clinical Excellence
Selecting an appropriate ultrasound transducer depends heavily on the intended clinical application. Frequency choice represents a classic trade-off in medical imaging: higher frequencies provide superior image resolution but suffer from reduced penetration depth, while lower frequencies can penetrate deep into the body at the cost of image sharpness.
| Probe Type | Typical Frequency Range | Primary Clinical Use |
|---|---|---|
| Linear | 7–15 MHz | Small parts, Vascular, Musculoskeletal |
| Curvilinear | 2–5 MHz | Abdominal, OB/GYN |
| Phased Array | 1–5 MHz | Cardiac, Transcranial |
| Endocavitary | 5–9 MHz | Transvaginal, Transrectal |
💡 Note: Always ensure the transducer frequency is matched to the depth of the target anatomy to optimize the signal-to-noise ratio and diagnostic clarity.
Best Practices for Maintenance and Infection Control
Given the high cost and delicate nature of the internal piezoelectric crystals, proper handling is paramount to extending the life of an ultrasound transducer. A single drop or improper cleaning method can cause irreversible damage or create artifacts that obscure diagnosis. Maintaining the integrity of the acoustic lens is particularly important, as scratches or bubbling on this surface can lead to significant image degradation.
Follow these essential protocols for probe care:
- Regular Inspection: Inspect the cable for fraying, kinks, or tears after every use.
- Proper Cleaning: Use only manufacturer-approved cleaning agents. Avoid harsh chemicals that could degrade the rubber or plastic housing.
- Disinfection: For semi-critical or critical use, perform high-level disinfection (HLD) following strict clinical guidelines to prevent cross-contamination.
- Storage: Store probes in wall-mounted holders or specialized cases, ensuring cables are not stressed or twisted.
💡 Note: Never submerge the connector end of the transducer in liquid; only the distal part (the probe head) is designed to be water-resistant or immersible.
Troubleshooting Common Transducer Artifacts
When an ultrasound transducer begins to fail, the issue often manifests as specific artifacts on the display. Clinicians should be trained to recognize these signs early, as they can indicate either user error or equipment malfunction. Common issues include:
- Dropout Lines: Vertical black lines running through the image, usually indicating a broken piezoelectric crystal or a damaged interconnect in the cable.
- Shadowing: Unexpected shadowing that is not caused by anatomy often points to damage in the acoustic lens or trapped air bubbles under the surface.
- Intermittent Image Loss: Often caused by loose connections or bent pins within the transducer connector port.
The Future of Transducer Technology
The field is rapidly evolving toward CMUT (Capacitive Micromachined Ultrasonic Transducer) technology. Unlike traditional piezoelectric crystals, CMUTs are manufactured using semiconductor fabrication techniques, allowing for smaller, lighter, and more versatile probes. These advancements are paving the way for handheld, ultra-portable ultrasound devices that integrate seamlessly with smartphones, effectively bringing imaging to the point of care in remote or resource-limited settings.
Furthermore, the integration of Artificial Intelligence (AI) is assisting clinicians in image acquisition. Modern transducers, when paired with sophisticated software, can now provide real-time guidance to the user, helping them find the optimal imaging plane and ensuring that critical measurements are standardized across different operators.
Ultimately, the ultrasound transducer remains an indispensable tool that balances complex engineering with ease of use. Whether used in a high-end radiology suite or a bedside emergency setting, the quality of the diagnostic image depends on the correct selection, rigorous care, and proper application of the probe. By prioritizing regular maintenance, adhering to strict infection control protocols, and staying informed about the latest technological advancements in probe design, medical facilities can ensure longevity for their equipment and, more importantly, deliver the highest level of care to their patients. As we move toward a future of increased portability and AI-driven imaging, the fundamental importance of the transducer will only continue to grow, serving as the essential link between the invisible interior of the human body and the diagnostic insights necessary for effective treatment.
