Unit Circle Quadrants

Trigonometry is often perceived as a daunting subject, primarily because of the abstract formulas that seem to lack a tangible connection to the physical world. However, at the very heart of this mathematical discipline lies a simple, elegant geometric tool: the unit circle. By mastering the Unit Circle Quadrants, you unlock a visual and logical framework that makes understanding sine, cosine, and tangent functions much more intuitive. Whether you are a student preparing for a calculus exam or simply someone looking to refresh your mathematical foundations, understanding how the circle is partitioned is the most critical first step toward fluency in trigonometry.

Understanding the Coordinate Plane and the Unit Circle

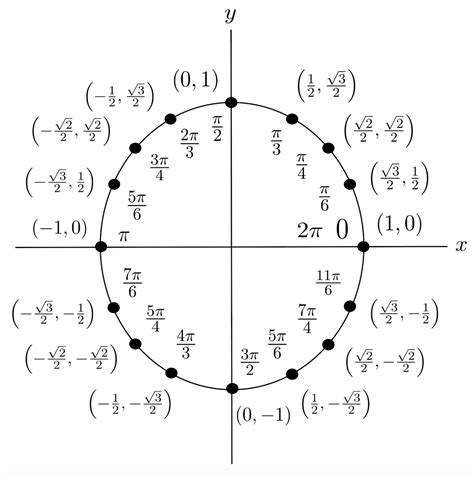

Before diving into the specifics of the quadrants, it is essential to define what the unit circle is. In a Cartesian coordinate system, a unit circle is a circle with a radius of exactly 1, centered at the origin (0, 0). Because the radius is 1, any point (x, y) on the circumference of the circle satisfies the Pythagorean equation: x² + y² = 1.

The beauty of the Unit Circle Quadrants is that they map the entirety of angular rotation—from 0 to 360 degrees, or 0 to 2π radians—onto this simple circular path. As you move around the circle, your coordinates change, and these coordinate values directly correspond to the values of trigonometric functions:

• The x-coordinate represents the cosine value (cos θ).
• The y-coordinate represents the sine value (sin θ).
• The ratio of y to x (y/x) represents the tangent value (tan θ).

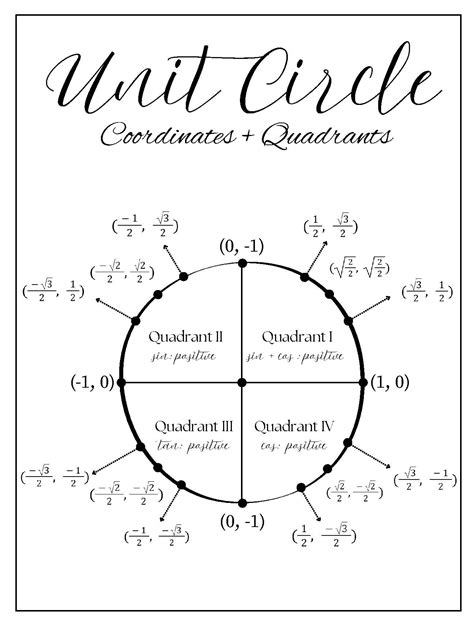

Breaking Down the Four Quadrants

The Cartesian plane is divided into four distinct regions, known as quadrants. When working with trigonometry, these Unit Circle Quadrants act as a compass, telling you whether your trigonometric values will be positive or negative based on the angle's terminal side location.

Quadrant I: The Positive Haven

Located in the top-right section of the graph, Quadrant I spans angles from 0° to 90° (0 to π/2 radians). In this region, both the x and y coordinates are positive. Consequently, all primary trigonometric functions—sine, cosine, and tangent—return positive values here. It is the starting point for all students learning about acute angles.

Quadrant II: The Sine Domain

Moving counter-clockwise to the top-left, we enter Quadrant II, spanning 90° to 180° (π/2 to π radians). Here, the x-coordinate becomes negative, while the y-coordinate remains positive. Because y is positive, sine is positive in this quadrant, while cosine and tangent are negative.

Quadrant III: The Tangent Territory

In the bottom-left, covering 180° to 270° (π to 3π/2 radians), both x and y are negative. However, because the tangent function is the quotient of y divided by x, dividing a negative by a negative results in a positive value. Therefore, tangent is positive in Quadrant III, while sine and cosine remain negative.

Quadrant IV: The Cosine Corner

Finally, the bottom-right quadrant spans 270° to 360° (3π/2 to 2π radians). Here, x is positive and y is negative. This means cosine is positive, while sine and tangent are negative.

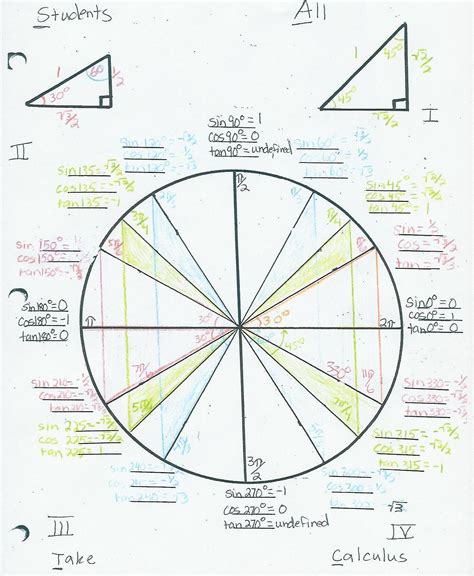

💡 Note: A popular mnemonic device to remember these quadrants is the acronym "All Students Take Calculus," which stands for All positive in Quadrant I, Sine positive in Quadrant II, Tangent positive in Quadrant III, and Cosine positive in Quadrant IV.

Applying the Quadrant Rules to Solve Problems

The primary reason students struggle with trigonometry is often a failure to identify which quadrant an angle resides in before calculating values. Once you know the Unit Circle Quadrants, solving complex problems becomes a two-step process:

1. Identify the quadrant: Determine if your angle is between 0-90, 90-180, 180-270, or 270-360 degrees.
2. Assign the sign: Use the "All Students Take Calculus" rule to determine if the result should be positive or negative.

For example, if you are asked to find the cosine of 150°. You first recognize that 150° is in Quadrant II. According to our rules, only sine is positive in Quadrant II, so you immediately know that the cosine of 150° must be a negative number. This mental check helps catch errors before they even happen.

💡 Note: Always remember that the unit circle is cyclical. Angles greater than 360° or less than 0° are called coterminal angles. To find their quadrant, simply add or subtract 360° until the angle is within the 0-360° range.

Reference Angles: The Bridge Between Quadrants

Beyond identifying the quadrant, you must learn to use reference angles. A reference angle is the acute angle (always less than 90°) that the terminal side of an angle makes with the x-axis. No matter which quadrant an angle is in, you can translate it back to Quadrant I to find its value, then simply attach the correct sign based on the quadrant rules discussed above.

This method simplifies the unit circle significantly. Instead of memorizing values for every possible angle, you only need to memorize the values for 0°, 30°, 45°, 60°, and 90°. For any other angle, you simply find the corresponding reference angle in the first quadrant and apply the sign associated with the Unit Circle Quadrants.

Understanding these fundamental divisions of the circle transforms trigonometry from a list of confusing numbers into a cohesive, logical system. By focusing on the behavior of the x and y coordinates in each region, you provide yourself with a roadmap for solving any trigonometric equation. You are no longer just memorizing; you are seeing the patterns that govern cyclical motion, wave functions, and the very geometry of our world. As you continue your studies, keep returning to these quadrants, as they will remain the most reliable reference point for every advanced topic you encounter, from solving triangles to analyzing periodic functions in complex calculus.
