Recognizing a V Fib rhythm strip is one of the most critical skills for healthcare professionals, ranging from paramedics to intensive care nurses and physicians. Ventricular fibrillation, or V-fib, represents a state of cardiac chaos where the heart's lower chambers—the ventricles—are no longer pumping blood effectively. Instead of a rhythmic contraction, the ventricles merely quiver, leading to an immediate cessation of cardiac output. Because this condition results in clinical death if left untreated, the ability to identify this chaotic, disorganized electrical activity on an ECG or cardiac monitor is essential for timely intervention and life-saving resuscitation efforts.
Understanding the V Fib Rhythm Strip Characteristics
When observing a V Fib rhythm strip, it is impossible to identify any recognizable waveform components. Unlike normal sinus rhythm, which features clear P-waves, QRS complexes, and T-waves, ventricular fibrillation is defined by its complete lack of organization. The electrical activity is erratic, rapid, and entirely inefficient.
Key characteristics you will notice include:
- No identifiable P-waves: The atria are not depolarizing in a coordinated fashion.
- No QRS complexes: There is no ventricular depolarization, meaning no blood is being ejected from the heart to the systemic circulation.
- Irregular baseline: The baseline is chaotic, appearing as disorganized "wiggly" lines that vary in amplitude and frequency.
- No rate or rhythm: Because there is no mechanical contraction, there is no pulse, and therefore, no measurable heart rate.
V-fib is often categorized based on the amplitude of the waves. Coarse V-fib features large, easily visible waves, which generally indicate that the event has occurred recently and the myocardium still has some electrical energy. Fine V-fib, on the other hand, consists of very low-amplitude, small, shaky waves. Fine V-fib is often seen when the heart has been in fibrillation for a prolonged period, and it can sometimes be difficult to distinguish from asystole (a flat line).

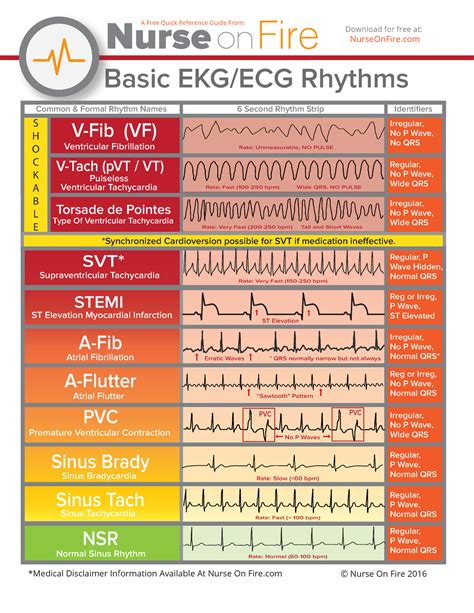

Comparison of Cardiac Rhythms
Understanding how a V Fib rhythm strip differs from other lethal or non-lethal rhythms helps in accurate differential diagnosis. The following table provides a quick reference to distinguish between key cardiac rhythms based on their electrical appearance.
| Rhythm Type | P-Wave | QRS Complex | Rhythm/Rate |
|---|---|---|---|
| Normal Sinus | Present/Normal | Narrow/Uniform | Regular |
| Ventricular Tachycardia | Absent | Wide/Bizarre | Rapid/Regular |
| Ventricular Fibrillation | Absent | Absent | Chaotic/None |
| Asystole | Absent | Absent | Flatline |
⚠️ Note: Always check for a palpable pulse when you suspect V-fib. Never treat the monitor alone; treat the patient. If the patient is pulseless, initiate the ACLS algorithm immediately.
The Clinical Significance of V-Fib
Ventricular fibrillation is the most common cause of sudden cardiac arrest. When the ventricles quiver instead of contracting, the heart becomes an ineffective pump. This causes blood pressure to drop to zero instantly, cutting off oxygen delivery to the brain and vital organs. Within seconds, the patient loses consciousness, and within minutes, irreversible brain damage begins to occur.
The transition to a V Fib rhythm strip can occur due to various underlying issues:
- Myocardial Infarction (Heart Attack): Ischemia causes electrical instability in the heart muscle.
- Electrolyte Imbalances: Severe abnormalities in potassium, magnesium, or calcium levels.
- Hypoxia: Lack of oxygen to the cardiac tissue.
- Drug Toxicity: Overdose or adverse reactions to certain medications.
- Trauma: Blunt force impact to the chest (commotio cordis).
Management and Intervention Protocols
Upon identifying a V Fib rhythm strip, speed is the most important factor in survival. Because there is no effective pulse, this is a non-perfusing rhythm that requires immediate action according to Advanced Cardiac Life Support (ACLS) protocols.
1. Initiate High-Quality CPR
While the defibrillator is being prepared, chest compressions must be started immediately. High-quality CPR—defined by adequate rate (100–120 compressions per minute), proper depth, and full chest recoil—is essential to circulate even a small amount of oxygenated blood to the brain and heart.
2. Defibrillation
Defibrillation is the only definitive treatment for V-fib. A high-energy electrical shock is delivered to the heart to depolarize all the cardiac cells at once, theoretically allowing the natural pacemaker of the heart (the SA node) to resume its normal function. The shock should be delivered as soon as the equipment is ready, followed immediately by a resumption of CPR.
3. Pharmacological Support
While defibrillation is the primary treatment, medications play a supporting role. Epinephrine is typically administered to improve coronary perfusion during compressions. Antiarrhythmic drugs like Amiodarone or Lidocaine may be used to help stabilize the heart rhythm after successful defibrillation to prevent recurrence.
💡 Note: In cases of fine V-fib, ensure that the ECG leads are firmly attached and that the monitor gain is set appropriately. Sometimes, a flat-looking line may actually be fine V-fib, which is still a shockable rhythm.
Final Thoughts on Cardiac Monitoring
Mastery of the V Fib rhythm strip is a fundamental aspect of emergency medicine and critical care. By recognizing the chaotic, disorganized pattern of ventricular fibrillation, healthcare providers can initiate rapid, life-saving interventions that dramatically improve patient outcomes. Because this rhythm is synonymous with cardiac arrest, it demands immediate recognition, followed by the rigorous application of CPR and defibrillation protocols. Continuous education, regular practice in rhythm strip interpretation, and adherence to established clinical guidelines remain the most effective ways to ensure preparedness for these high-stakes, life-or-death situations. By focusing on the visual cues—the absence of P-waves and QRS complexes alongside an erratic baseline—professionals can act with the speed and confidence necessary to address this medical emergency effectively.
