Understanding ventilator settings is a cornerstone of critical care medicine, essential for clinicians managing patients with acute respiratory failure. Mechanical ventilation is not a "one-size-fits-all" therapy; rather, it requires meticulous calibration of various parameters to support gas exchange, reduce the work of breathing, and prevent further lung injury. When a patient is unable to maintain adequate oxygenation or ventilation on their own, the ventilator acts as a bridge, substituting for the mechanical function of the respiratory muscles. Mastering the foundational concepts of these settings—ranging from tidal volume and respiratory rate to PEEP and pressure support—is vital for ensuring patient safety and promoting recovery in the intensive care unit.
Core Components of Mechanical Ventilation
Before diving into specific modes, it is important to understand the primary variables clinicians adjust. These variables dictate how the machine interacts with the patient's lungs. The goal is always to achieve physiologic targets—adequate oxygenation (PaO2) and ventilation (PaCO2)—while minimizing the risk of ventilator-induced lung injury (VILI).
- Tidal Volume (Vt): The volume of gas delivered to the lungs during each breath. In patients with ARDS, protective lung strategies prioritize lower tidal volumes (usually 6 mL/kg of predicted body weight) to avoid overdistension.
- Respiratory Rate (RR): The number of breaths delivered per minute. Adjusting the rate is the primary method for controlling minute ventilation and, consequently, managing the patient's arterial CO2 levels.
- Fraction of Inspired Oxygen (FiO2): The concentration of oxygen in the delivered gas. It is typically titrated to keep oxygen saturation (SpO2) within a target range (often 88-95%).
- Positive End-Expiratory Pressure (PEEP): The pressure remaining in the airways at the end of exhalation. PEEP is crucial for preventing alveolar collapse and improving oxygenation by increasing functional residual capacity.
- Inspiratory Pressure: In pressure-controlled modes, this setting determines the total pressure applied to the airways during inspiration.

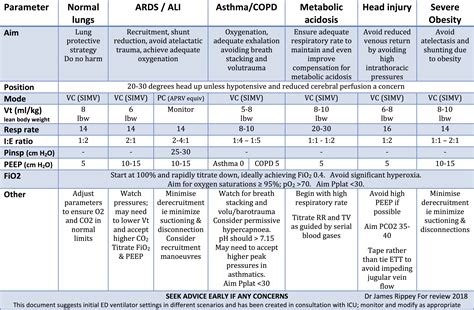

Common Ventilator Modes and Their Applications
The choice of mode depends on the patient's underlying pathology and their level of respiratory drive. Modern ventilators offer a variety of modes that can be categorized into volume-targeted and pressure-targeted strategies.
| Mode | Primary Goal | Clinical Use Case |
|---|---|---|
| Assist Control (AC) | Guaranteed minute ventilation | Initial stabilization, sedation |
| Synchronized Intermittent Mandatory Ventilation (SIMV) | Allows spontaneous breathing | Weaning process |
| Pressure Support Ventilation (PSV) | Patient-triggered breaths | Spontaneous breathing trials |
⚠️ Note: Always prioritize patient comfort and synchrony. Ventilator dyssynchrony, where the patient's respiratory effort conflicts with the machine’s cycling, can lead to increased sedation needs and prolonged ventilation duration.
Advanced Parameters and Monitoring
Beyond the basic settings, clinicians must monitor secondary parameters to ensure the lung remains protected. Peak airway pressure and plateau pressure are key indicators of lung mechanics. High peak pressures can indicate airway obstruction or decreased compliance, whereas elevated plateau pressures—measured during an inspiratory hold—are more indicative of the pressure actually felt by the alveoli.
Another critical aspect is the inspiratory-to-expiratory (I:E) ratio. The normal ratio is typically 1:2, meaning exhalation takes twice as long as inhalation. In patients with obstructive diseases like asthma or COPD, this ratio may need to be adjusted (e.g., 1:3 or 1:4) to allow for complete exhalation and to prevent dynamic hyperinflation or "air trapping."
The Strategy for Lung-Protective Ventilation
Lung-protective ventilation has revolutionized outcomes for patients with acute respiratory distress syndrome (ARDS). The strategy focuses on limiting tidal volume and maintaining appropriate PEEP levels to recruit collapsed alveoli without over-stretching healthy ones. By keeping the plateau pressure below 30 cm H2O, clinicians significantly reduce the risk of barotrauma and volutrauma.
When adjusting these settings, clinicians must also maintain a balance between oxygenation and ventilation. If a patient is hypercapnic (high CO2), increasing the respiratory rate or tidal volume is usually the first step. Conversely, if the patient is hypoxemic (low O2), increasing FiO2 or PEEP is the standard approach to improving recruitment and gas exchange.
💡 Note: Small, incremental changes are preferred over large adjustments. Always observe the patient's physiological response and waveform graphics on the ventilator screen for several minutes after any adjustment.
Weaning and Liberation
Once the underlying cause of respiratory failure begins to resolve, the focus shifts toward weaning. This involves gradually decreasing the support provided by the machine. Spontaneous breathing trials (SBTs) are often used to assess whether a patient can tolerate the removal of the ventilator. During this transition, PSV is frequently utilized, as it allows the patient to take their own breaths while receiving a set level of support to overcome the resistance of the endotracheal tube.
Effective liberation requires a multidisciplinary approach involving respiratory therapists, nurses, and physicians. Factors such as sedation levels, hemodynamic stability, and the patient's cough reflex must be assessed before the final extubation. A successful liberation is not just about the machine settings; it is a holistic evaluation of the patient's ability to maintain their own airway and respiratory drive.
Navigating the complexities of mechanical ventilation requires a deep understanding of lung physiology and the impact of each parameter on the patient’s overall health. By starting with lung-protective principles—limiting tidal volume and utilizing optimal PEEP—clinicians can stabilize patients while minimizing the secondary injuries associated with invasive support. Regularly monitoring pressure limits and carefully titrating settings based on real-time feedback helps ensure that the ventilator serves as a therapeutic tool rather than a source of further harm. As the patient progresses, thoughtful weaning practices become the final piece of the puzzle, safely transitioning the patient from machine-dependent support back to independent breathing. Through constant observation, logical adjustments, and adherence to evidence-based protocols, the management of these devices remains one of the most powerful interventions available in modern medicine.
