In the complex and rapidly evolving world of semiconductor manufacturing, the gap between a circuit design and a physical silicon chip is bridged by a critical set of data files. If you have ever wondered, What Are Pdks, you are essentially asking about the fundamental language that allows engineers to communicate with fabrication facilities. A Process Design Kit (PDK) serves as the essential interface between the design environment and the manufacturing process. Without these comprehensive toolkits, it would be impossible to predict how a chip will perform before it is actually printed on a wafer, leading to costly errors and failed prototypes.
Understanding the Role of PDKs in Chip Design
At its core, a PDK is a collection of files used by integrated circuit designers to model the fabrication process. It acts as a bridge, ensuring that the design tools used—such as Electronic Design Automation (EDA) software—understand the physical limitations, electrical characteristics, and layout rules of a specific semiconductor foundry. When engineers ask What Are Pdks, they are inquiring about the "rulebook" that dictates what can and cannot be built on a silicon substrate.

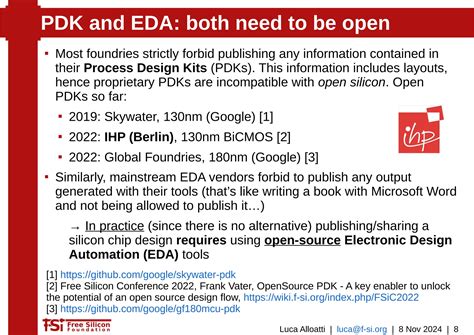

Because every foundry utilizes different manufacturing equipment and chemical processes, a PDK is specific to a particular process node (e.g., 7nm, 28nm, or 180nm). If a designer uses the wrong PDK, the resulting layout will not align with the foundry’s hardware, leading to a non-functional chip. Consequently, these kits are highly proprietary and guarded assets, often requiring non-disclosure agreements between the design house and the silicon manufacturer.
Core Components of a PDK
To grasp the full scope of What Are Pdks, one must examine their internal architecture. A standard PDK is not just a single document but a suite of integrated components that allow for a seamless design flow. These components include:
- Device Models: Mathematical representations of transistors, resistors, and capacitors that predict how components will react to voltage and current.
- Design Rule Manual (DRM): A set of geometric rules that dictate minimum feature sizes, spacing, and other physical constraints to ensure manufacturing yield.
- Technology Files (Techfiles): Information regarding the layer stack, conductivity, and dielectric properties of the materials being used.
- Symbol Libraries: Graphical representations used in schematic capture to identify components within the design software.
- Physical Layout Cells (Pcells): Parametrized cells that allow designers to modify the dimensions of a component while automatically maintaining compliance with design rules.
- Design Rule Check (DRC) Decks: Scripts that automatically scan a layout to verify that it meets the foundry's physical requirements.
💡 Note: Always ensure your EDA environment is compatible with the specific version of the PDK provided by your foundry, as updates often include critical fixes for manufacturing reliability.
Why PDKs Are Indispensable for Modern Engineering
The complexity of modern microchips is staggering. With billions of transistors packed into a space the size of a fingernail, manual verification is impossible. This is why understanding What Are Pdks is so important for those entering the industry. PDKs enable automation, allowing designers to perform "Sign-off" checks that simulate how the chip will behave under temperature fluctuations, voltage drops, and process variations.
| Feature | Impact on Design |
|---|---|
| DRC Decks | Prevents physical layout errors that would cause short circuits. |
| LVS (Layout vs Schematic) | Ensures the drawn layout matches the intended logical circuit. |
| RC Extraction | Calculates the parasitic resistance and capacitance of wires to predict signal speed. |
| Pcells | Reduces design time by allowing quick resizing of components. |
The Evolution of Design Kits
As semiconductor technology moves toward smaller nodes like 3nm and beyond, the definition of What Are Pdks has expanded. Older generations of PDKs were relatively static, but today’s kits are increasingly dynamic. They now include advanced modeling for "Aging" (how a chip degrades over 10 years of use) and "Electromigration" (the movement of atoms in metal wires caused by current flow). This evolution allows designers to create chips that are not only performant but also reliable for long-term deployment in automotive or medical applications.
Common Challenges When Working with PDKs
Despite their sophistication, PDKs can present challenges. One of the most frequent hurdles is the learning curve associated with a new foundry's kit. Because there is no universal industry standard for PDK structure, an engineer moving from a TSMC process to a GlobalFoundries process must relearn the specific syntax and file structure. This reinforces the importance of documentation and clear communication between the design team and the foundry's support engineers.
💡 Note: If you encounter cryptic error messages during simulation, refer to the 'Troubleshooting' section of your specific PDK’s documentation, as these are often pre-populated with solutions for common convergence issues.
The journey from an abstract idea to a physical silicon chip relies entirely on the accuracy and depth of the Process Design Kit. By defining the rules of the physical world within the digital environment, these kits ensure that the massive investment required to manufacture silicon results in a viable, high-performance product. Mastering the elements of these toolkits is a prerequisite for any hardware engineer seeking to innovate in the semiconductor landscape. By focusing on the integration of device models, design rules, and automated verification tools, the industry continues to push the boundaries of what is possible, turning complex mathematical models into the hardware that powers our digital lives.
