The braking system in your vehicle is a complex network of components working in unison to ensure your safety on the road. Among these critical parts, the wheel cylinder plays a fundamental role in drum brake systems. While disc brakes have become standard on the front wheels of most modern vehicles, many cars, trucks, and trailers still rely on drum brakes for the rear, making the maintenance of these hydraulic components essential for optimal stopping power. Understanding how this part functions, recognizing signs of failure, and knowing how to maintain it can save you from costly repairs and dangerous driving situations.
Understanding the Wheel Cylinder Function

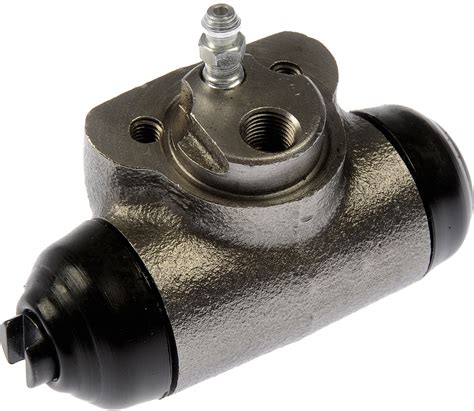

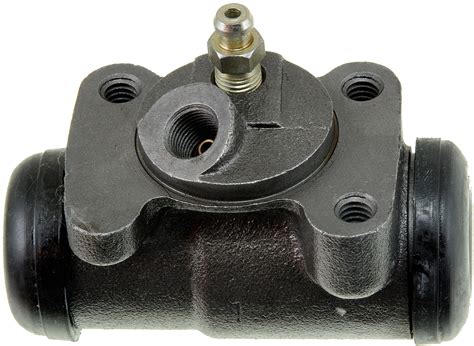

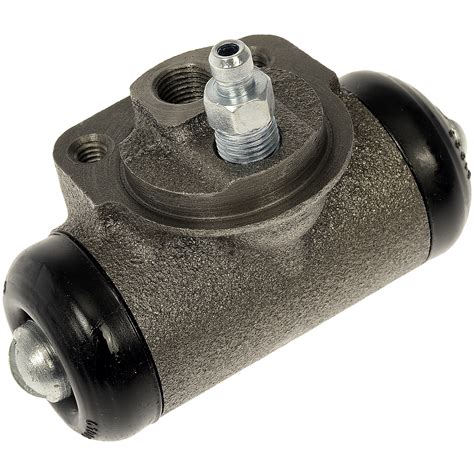

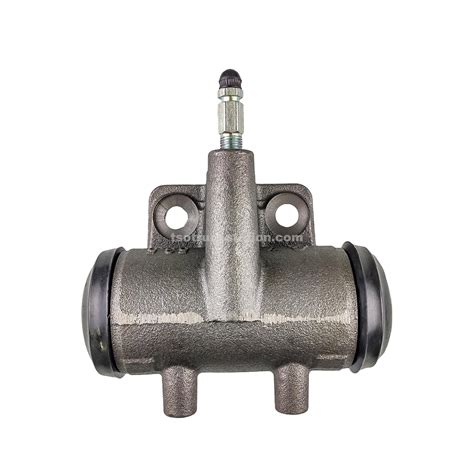

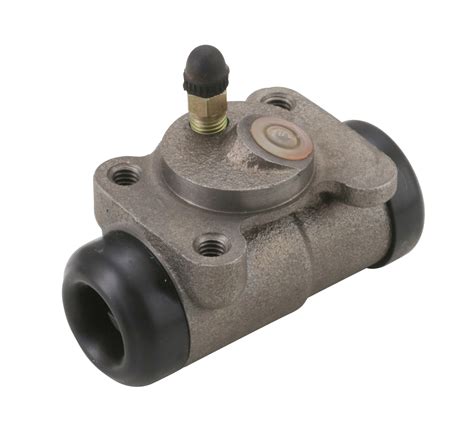

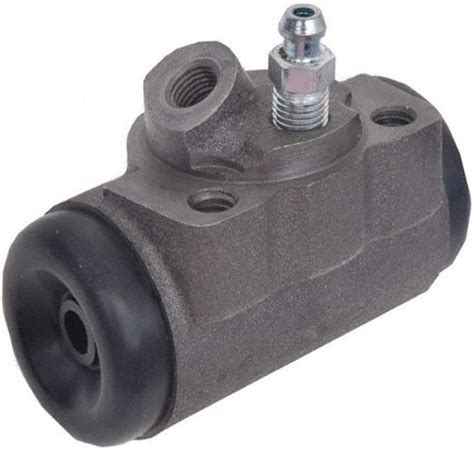

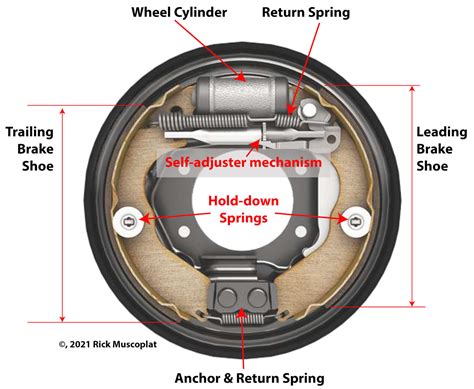

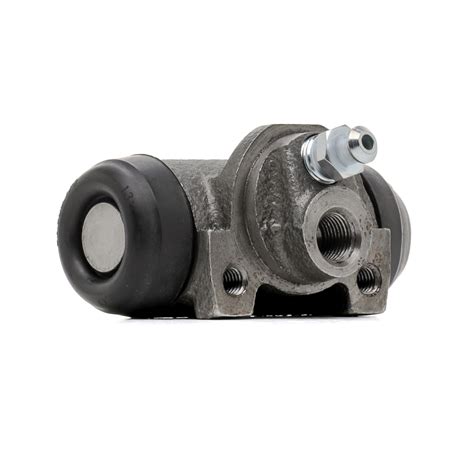

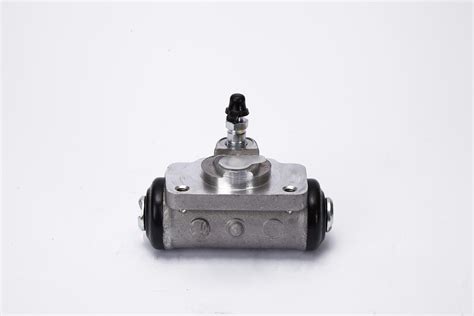

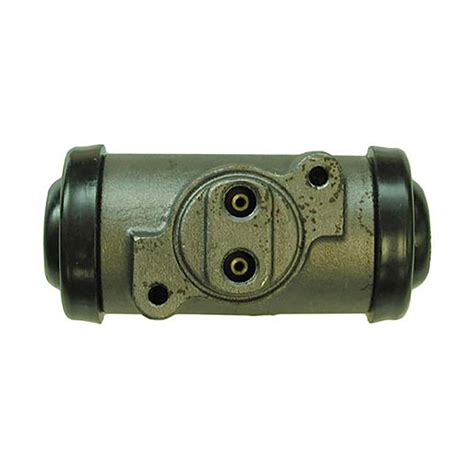

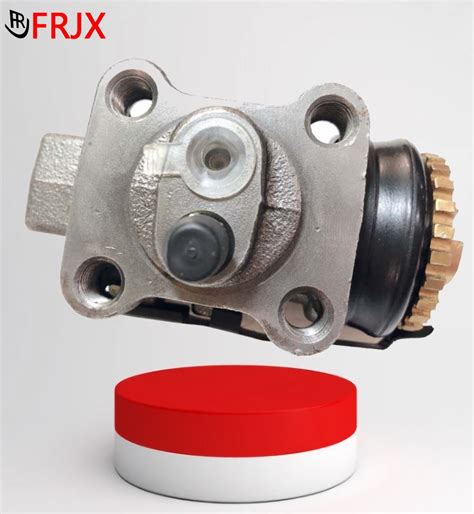

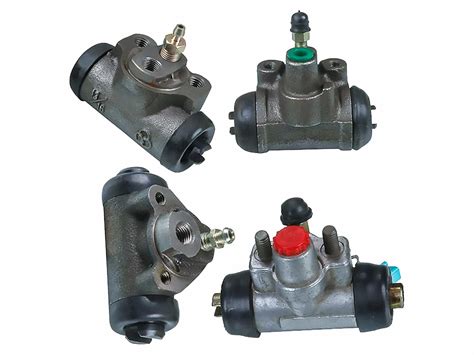

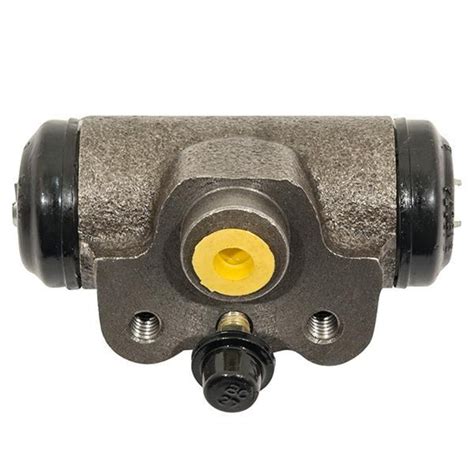

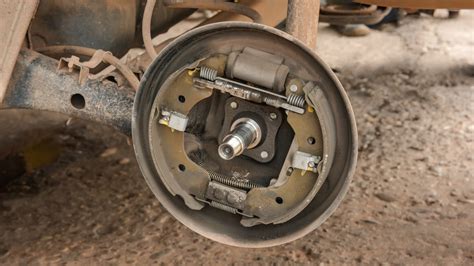

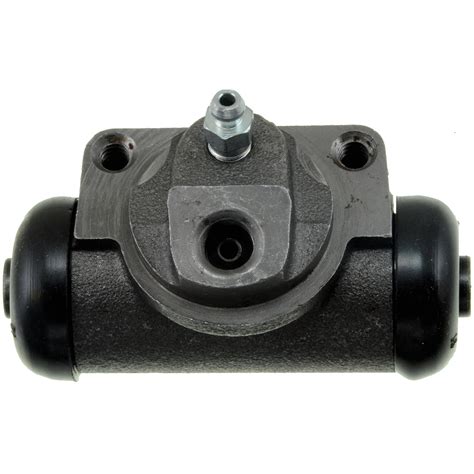

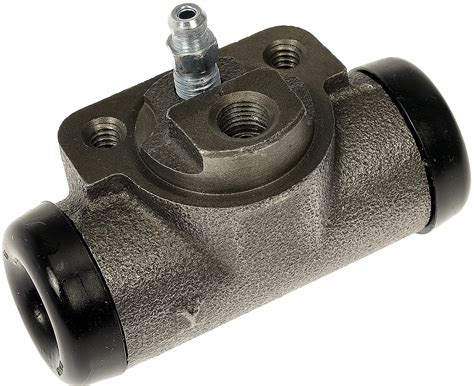

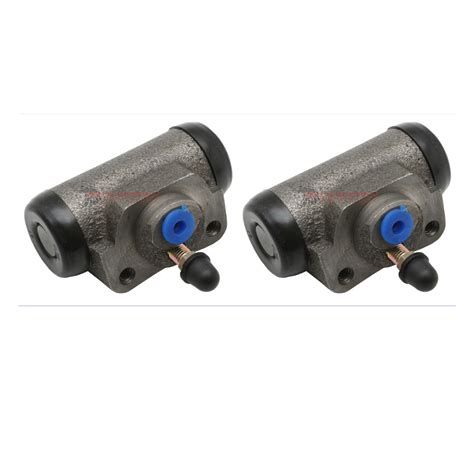

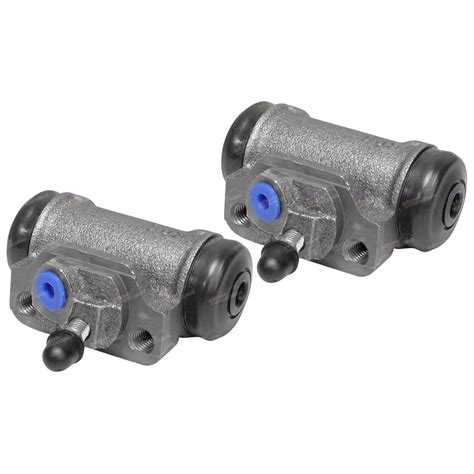

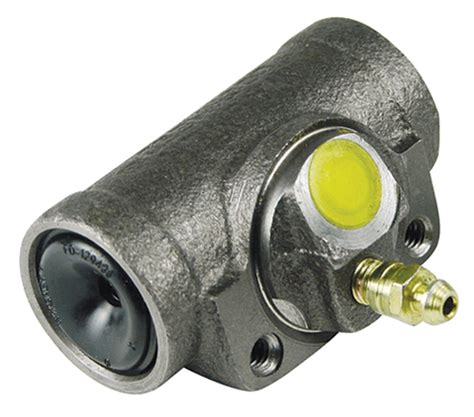

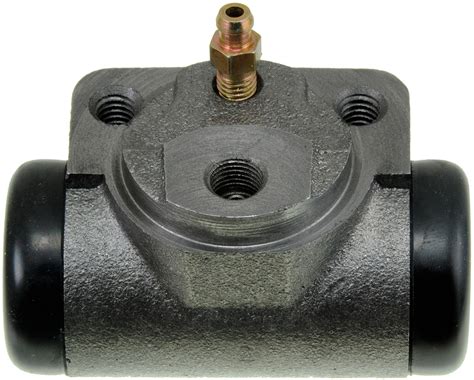

A wheel cylinder is a small, hydraulic component located inside each rear drum brake assembly. Its primary job is to convert the hydraulic pressure generated by the master cylinder into mechanical force. When you press your brake pedal, brake fluid is pushed through the brake lines toward the wheel cylinders. Inside the cylinder, two pistons—one at each end—are forced outward. These pistons push the brake shoes against the rotating brake drum, creating the friction necessary to slow down or stop your vehicle.
Because they are responsible for initiating the friction that stops your car, they are subjected to intense heat and constant pressure. Over time, the internal rubber seals can degrade, leading to leaks or seized pistons, which directly impact the performance of your braking system.
Signs Your Wheel Cylinder Needs Attention
Identifying problems with your braking system early is the best way to avoid a total brake failure. Since the wheel cylinder is hidden behind the brake drum, you cannot see it during a routine walk-around. Instead, you must rely on the "symptoms" your vehicle exhibits while driving or during visual inspections.
- Leaking Brake Fluid: This is the most common indicator. You might notice a small puddle of fluid behind the rear tire or observe dampness on the inside of the tire sidewall.
- Spongy Brake Pedal: If air enters the system due to a seal leak in the wheel cylinder, your brake pedal will feel soft or "spongy" and travel much closer to the floor before engaging.
- Pulling to One Side: If one cylinder is stuck or leaking significantly, your vehicle may pull to one side during braking because the wheels are not providing equal stopping force.
- Reduced Braking Efficiency: If you notice that you need more distance to come to a complete stop, your drums might be contaminated with fluid, causing the brakes to slip.
- Visible Corrosion: During a tire rotation or brake inspection, if the boots covering the wheel cylinder are torn or crusty with debris, it is a sign that moisture has entered and internal corrosion is likely.
Maintenance and Replacement Comparison
When dealing with a faulty component, you essentially have two paths: repair or replacement. The following table illustrates the key differences to help you decide which route is best for your vehicle.
| Aspect | Rebuilding/Repairing | Full Replacement |
|---|---|---|
| Cost | Lower initial cost | Higher initial cost |
| Labor Time | High; requires honing and cleaning | Low; bolt-on installation |
| Reliability | Dependent on condition of bore | Very High; includes new seals and bore |
| Recommended For | Classic cars or obsolete parts | Modern vehicles and daily drivers |
⚠️ Note: Always replace wheel cylinders in pairs (both left and right side) to ensure even braking pressure across the axle. Never replace just one, as the mismatched performance can cause the vehicle to skid during emergency stops.
Steps to Replace a Wheel Cylinder
If you have identified a failing unit, replacing it is a manageable task for someone with moderate mechanical experience. Follow these general steps to ensure the job is done safely:
- Safety First: Park the vehicle on a level surface, engage the parking brake, and use jack stands to secure the vehicle after lifting it.
- Remove the Drum: Remove the rear wheel and pull off the brake drum. If it is stuck, you may need a drum puller or a light tap with a rubber mallet.
- Bleed the System: Before removing the cylinder, you may choose to crack the bleeder screw to relieve pressure, but keep a catch pan ready for brake fluid, which is corrosive to paint.
- Disconnect Lines: Use a flare-nut wrench to disconnect the brake line from the back of the wheel cylinder. Avoid using an open-ended wrench, as this can easily round off the fitting.
- Unbolt the Unit: Remove the bolts securing the cylinder to the backing plate and slide the assembly out.
- Install the New Unit: Position the new cylinder, bolt it into place, reconnect the brake line, and reassemble the brake shoes and drum.
- Bleed the Brakes: Once installed, you must bleed the air out of the brake system to ensure the pedal feels firm.
💡 Note: Brake fluid is highly caustic. If you spill any on your vehicle's paint or your skin, wash it off immediately with soap and water to prevent damage or irritation.

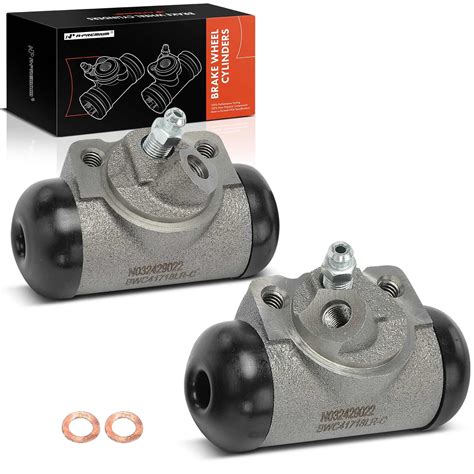

Choosing the Right Replacement Parts
When purchasing a new wheel cylinder, quality matters. Because this component involves the safety of your vehicle, steer clear of the cheapest "no-name" parts. Look for reputable brands that utilize high-grade rubber for the internal seals and corrosion-resistant metal for the cylinder housing. Inspect the new part to ensure the bleeder screw turns freely and that the dust boots are seated correctly before installation.
Routine brake inspections should be a part of every driver’s maintenance schedule. By monitoring the condition of your rear brakes, checking for leaks around the wheel hub, and listening for unusual noises during braking, you can identify wheel cylinder issues long before they lead to brake fade. Keeping these components in peak condition ensures that when you need to stop, your vehicle responds immediately and predictably, keeping you and your passengers safe in various driving conditions. Regular attention to these hidden but vital parts is the mark of a responsible vehicle owner and a proactive approach to automotive longevity.
