There are few things more stressful for a driver than being caught in a sudden downpour only to realize your windshield wipers not working. This issue is not merely an inconvenience; it is a serious safety hazard that reduces visibility and increases the risk of accidents. Whether your wipers have stopped mid-swipe, are moving sluggishly, or refuse to activate altogether, understanding the root cause is the first step toward getting back on the road safely. In this guide, we will break down the common culprits behind malfunctioning wipers and provide you with actionable steps to troubleshoot and fix the problem.
Common Causes of Windshield Wipers Not Working
Before diving into complex electrical repairs, it is helpful to understand the components of your wiper system. Most modern vehicles utilize a standard electrical motor connected to a linkage system that converts rotational motion into the back-and-forth sweep you see on your windshield. When you find your windshield wipers not working, the fault usually lies within one of four areas: the electrical system, the motor itself, the linkage, or the wiper arm assembly.
- Blown Fuse: The most common and easiest fix. If the circuit is overloaded, the fuse will blow to protect the motor.

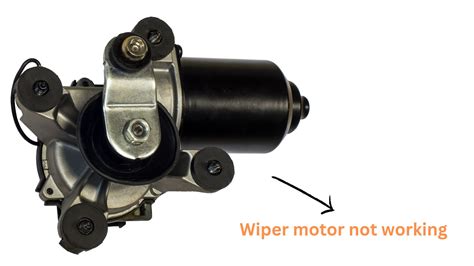

- Wiper Motor Failure: Over time, electrical motors can burn out or suffer from internal corrosion.
- Faulty Wiper Relay: The relay acts as a switch that allows low-power controls to trigger high-power components like the wiper motor.
- Linkage Disconnection: The mechanical arms that connect the motor to the wiper blades can become loose, worn, or detached.
- Switch Malfunction: The physical control stalk on your steering column may have internal contact wear.
Troubleshooting Your Wiper System
When you are faced with windshield wipers not working, start with the simplest solutions before moving to internal components. Follow these diagnostic steps to narrow down the issue:
1. Check the Fuse Box
Consult your owner’s manual to locate the fuse panel. Find the fuse labeled “Wiper” or “Wipers.” If the metal filament inside the fuse is broken or the plastic looks charred, replace it with a new fuse of the exact same amperage. If the new fuse blows immediately, you likely have a short circuit in the wiring or a seized wiper motor.

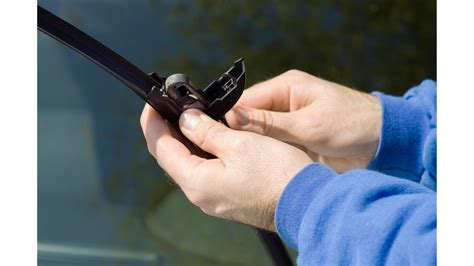

2. Inspect the Wiper Blades and Linkage
Sometimes, the issue is not electrical. If you hear the motor whirring but the blades are not moving, you likely have a linkage problem. Check the base of the wiper arms to see if the bolts have vibrated loose. Ensure there is no heavy debris, such as ice or thick branches, physically obstructing the path of the blades.
3. Test the Relay
If the fuse is intact and the wipers still refuse to move, the relay may be the culprit. You can often swap a suspected faulty relay with an identical one from a non-critical system (like the horn or interior lights) to see if the wipers begin to function.
| Component | Typical Symptom | Difficulty to Fix |
|---|---|---|
| Fuse | Wipers do not turn on at all | Easy |
| Wiper Relay | Clicking sound but no movement | Easy |
| Wiper Motor | Slow movement or buzzing | Moderate |
| Linkage | Motor runs, blades stay still | Moderate/Difficult |
💡 Note: Always ensure the ignition is in the "Off" position when inspecting electrical components or testing fuses to avoid an electrical shock or accidental activation.
Advanced Diagnostics and Repair
If the simple checks do not yield results, you may need to dig deeper into the electrical system. A digital multimeter is an essential tool for determining if power is actually reaching the wiper motor. With the wiper switch in the "On" position, use your multimeter to probe the harness connector at the motor. If you receive a 12-volt reading, the wiring is fine, and the motor itself is the likely failure point.
If you determine the wiper motor is faulty, it will require removal and replacement. This usually involves removing the plastic cowl panel at the base of the windshield to gain access to the motor housing. Be sure to document the position of the linkage arms before removing the motor, as improper re-installation can cause the wipers to hit your hood or windshield trim during operation.
💡 Note: Wiper motor replacement varies significantly by vehicle make and model. Always refer to a specific service manual for your vehicle to avoid damaging surrounding trim pieces.
Preventative Maintenance Tips
Prevention is always better than a roadside emergency. Keeping your wiper system in peak condition can save you from the stress of having your windshield wipers not working during a storm:
- Clear Debris: Regularly clean out dead leaves and debris from the cowl area to prevent water buildup and motor corrosion.
- Do Not Use on Dry Glass: Running wipers on a dry, dusty windshield creates excess friction, putting unnecessary strain on the motor.
- Clear Ice Before Turning On: Never force the wipers to clear heavy ice; the resistance can strip the gears inside the motor or blow the fuse.
- Inspect Rubber Blades: Old, stiff blades create more resistance than necessary. Replace them at least once a year.
Dealing with malfunctioning wipers can be frustrating, but by systematically checking the fuses, relays, linkage, and motor, you can identify the problem effectively. Start with the most accessible components, such as the fuse box, and work your way toward the more mechanical parts of the assembly. Regular maintenance, such as keeping the cowl area clean and avoiding the use of wipers on dry or icy glass, will significantly extend the lifespan of your wiper motor. Whether you choose to perform the repair yourself or take your vehicle to a professional technician, addressing the issue promptly will ensure your safety and clarity on the road during inclement weather.
