The X ray tube serves as the fundamental engine behind modern medical imaging and industrial non-destructive testing. Since its inception, this sophisticated vacuum device has transformed our ability to peer inside objects and human bodies without invasive procedures. By converting electrical energy into high-energy electromagnetic radiation, the X ray tube allows radiologists, engineers, and researchers to visualize internal structures with unprecedented clarity. Understanding how this critical component functions, its primary types, and its maintenance requirements is essential for anyone involved in healthcare technology or industrial quality control.
The Fundamental Anatomy of an X Ray Tube

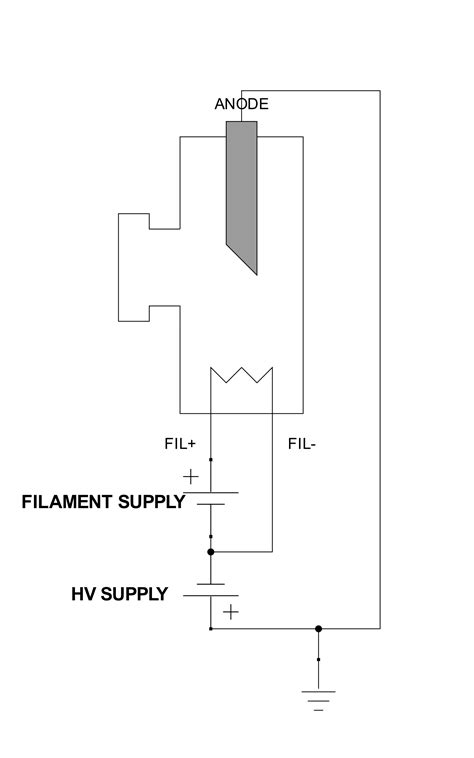

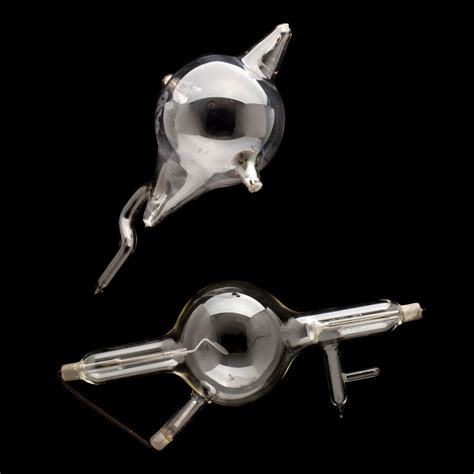

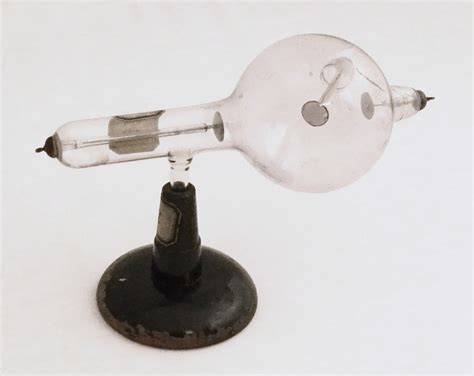

At its core, an X ray tube is an evacuated glass or metal envelope that houses two primary electrodes: the cathode (negative electrode) and the anode (positive electrode). When high voltage is applied, electrons are accelerated from the cathode to strike the anode target, producing X-rays through a process known as Bremsstrahlung and characteristic radiation. The efficiency and safety of this process depend on several critical components:
- Cathode Assembly: Usually consisting of a filament that, when heated, releases electrons via thermionic emission.
- Anode (Target): Often made of tungsten due to its high melting point and atomic number, designed to withstand the intense heat generated during electron bombardment.
- Vacuum Envelope: A housing that prevents air molecules from interfering with the electron stream and protects the internal components.

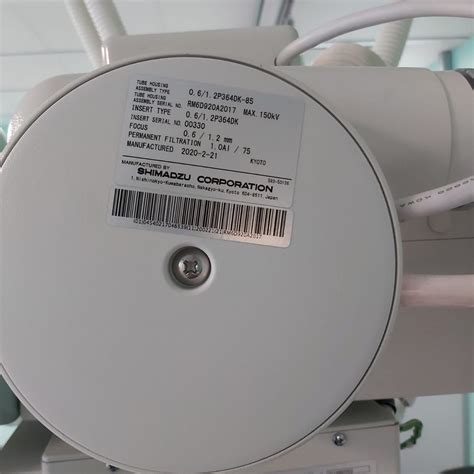

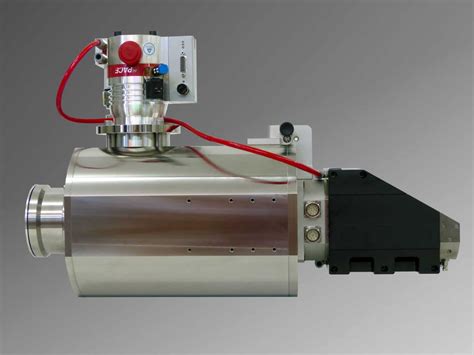

- Protective Housing: Lead-lined casing that provides radiation shielding and often contains oil for cooling and electrical insulation.
Operating Principles: How X-rays Are Produced
The operational cycle of an X ray tube is a high-speed energy transformation. When a technologist initiates an exposure, a low-voltage current heats the cathode filament, creating a "cloud" of electrons. A high potential difference, measured in kilovolts (kVp), is then applied between the cathode and the anode. This high voltage forces the electrons to accelerate rapidly toward the anode target.
Upon colliding with the anode, the kinetic energy of the electrons is converted into approximately 99% heat and 1% X-ray radiation. This massive heat production is the primary limiting factor for tube life. Modern X ray tube systems use rotating anodes to spread the heat over a larger focal track area, significantly increasing the device's lifespan and output capability.

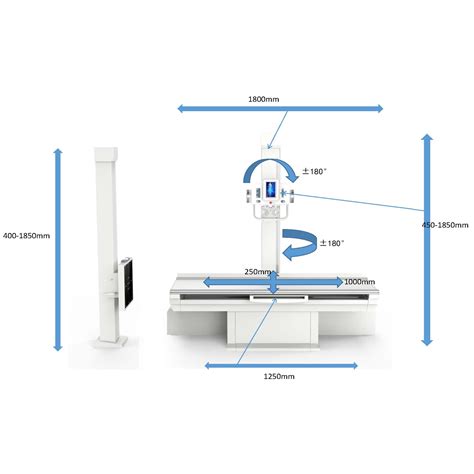

Comparing Stationary vs. Rotating Anode Tubes
The choice of anode technology is determined by the specific application requirements, ranging from portable dental units to high-throughput CT scanners. The table below outlines the major differences between the two primary designs.
| Feature | Stationary Anode | Rotating Anode |
|---|---|---|
| Heat Dissipation | Limited | Excellent |
| Applications | Dental, portable imaging | General Radiography, CT, Fluoroscopy |
| Focal Spot Size | Fixed and larger | Smaller, allowing higher resolution |
| Cost | Economical | Higher investment |
Key Considerations for Tube Longevity and Safety
Maximizing the lifespan of an X ray tube requires strict adherence to operational protocols. Tube failure is often caused by excessive heat accumulation, which can warp the anode, damage the filament, or cause the glass envelope to crack. Implementing a consistent warm-up procedure is the single most effective way to prevent premature failure.
⚠️ Note: Always perform the manufacturer-recommended warm-up sequence every morning. This process prevents thermal shock to the anode target and ensures the vacuum integrity is maintained after periods of inactivity.
Furthermore, operators must respect the tube rating charts provided by the manufacturer. These charts define the safe limits for milliamperes (mA), kilovoltage (kVp), and exposure time. Operating beyond these parameters risks immediate damage to the anode focal track, leading to significant degradation in image quality and eventual catastrophic failure.

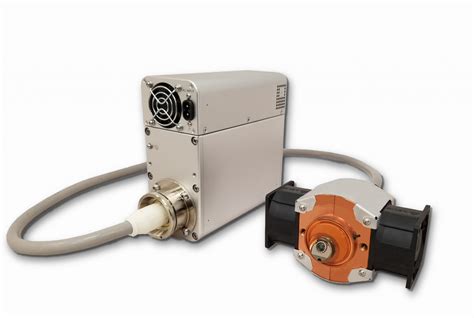

Advanced Innovations in X-Ray Technology
As medical imaging requirements evolve, the X ray tube continues to undergo significant advancements. Recent developments focus on improving heat capacity, reducing focal spot sizes for high-resolution imaging, and incorporating smart monitoring systems. Technologies like liquid-metal cooled anodes and carbon nanotube cathodes are currently at the forefront of research. These innovations aim to make X ray tube systems more durable, compact, and energy-efficient, ultimately leading to lower radiation doses for patients and reduced operational costs for healthcare facilities.
Best Practices for Maintenance and Troubleshooting

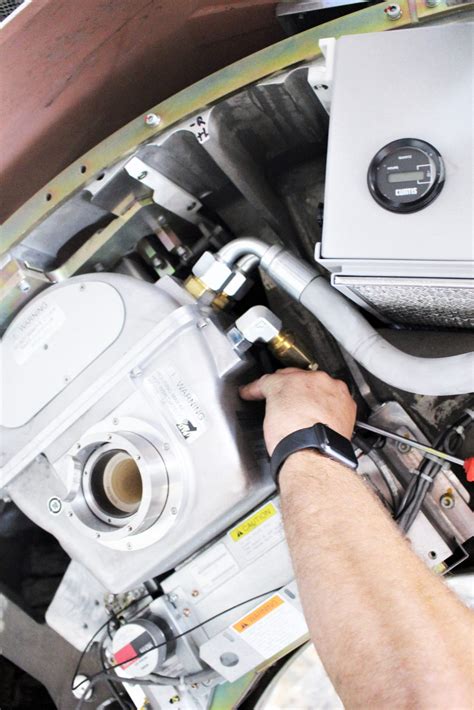

Maintaining a high-performance imaging suite involves more than just routine cleaning; it requires a proactive approach to hardware management. Routine inspection of the oil cooling system, monitoring the filament current stability, and checking the integrity of the high-voltage cables are vital tasks. If you notice unusual artifacts on images, it could be a sign of anode pitting or filament evaporation, both of which require professional intervention.
By understanding the intricate relationship between electron physics and mechanical engineering within the X ray tube, professionals can ensure their equipment remains in peak condition. Whether it involves managing thermal load during heavy usage or conducting daily calibration, being informed about the hardware ensures both safety and diagnostic accuracy.
The X ray tube remains the undisputed workhorse of the radiological world. Its ability to generate high-energy photons reliably and consistently is the bedrock upon which modern diagnosis and industrial testing are built. By mastering the fundamental principles of its operation, adhering to strict thermal management protocols, and investing in regular preventative maintenance, users can ensure long-term equipment reliability. As technology progresses toward more advanced cooling and emission methods, the core principles of electron acceleration and target interaction will continue to guide the development of this essential technology. Recognizing the critical nature of these devices and respecting their operational limits is the most effective way to maximize their return on investment and ensure the delivery of high-quality imaging services for years to come.
