In the world of professional audio, clarity, versatility, and efficiency are paramount. Whether you are setting up a home recording studio, managing sound for a live event, or configuring a complex podcasting rig, you will inevitably encounter signal routing challenges. One of the most common solutions for these challenges is the Xlr splitter. This seemingly simple device acts as the bridge between your microphone or instrument and multiple destinations, allowing you to feed a single audio source into various inputs simultaneously. Understanding how and when to use this piece of equipment can elevate your production value while saving you significant time and frustration during setup.
What is an Xlr Splitter and Why Do You Need One?

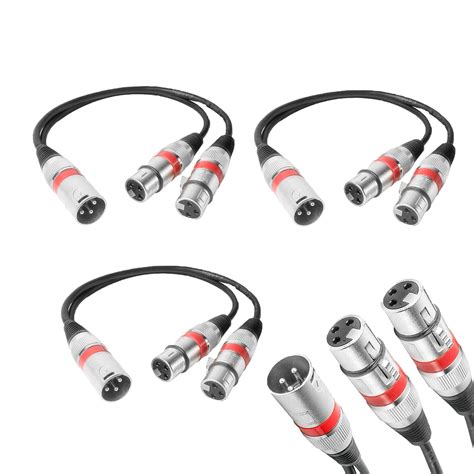

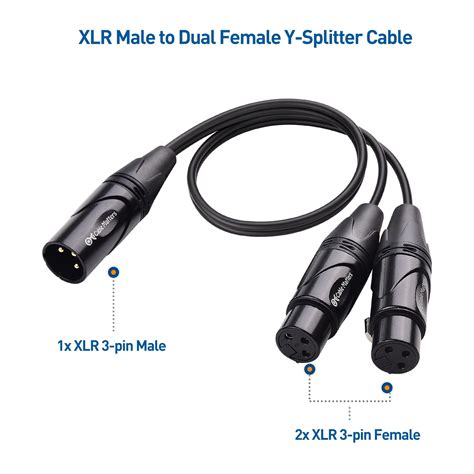

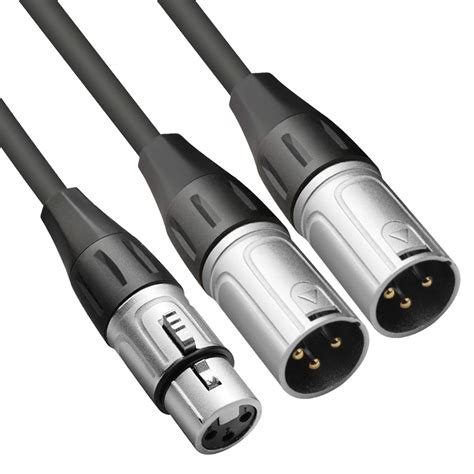

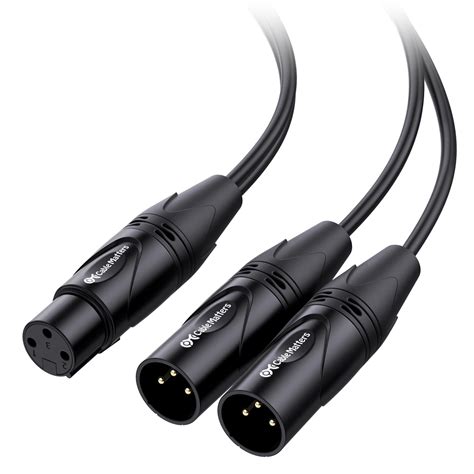

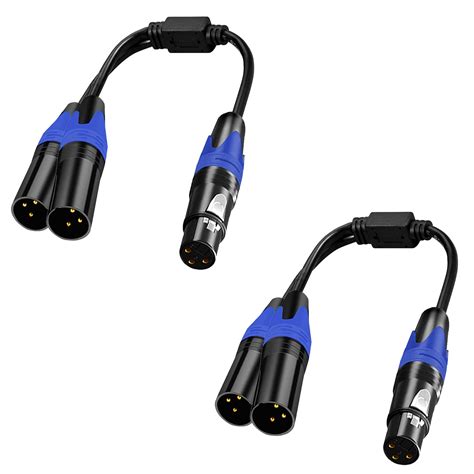

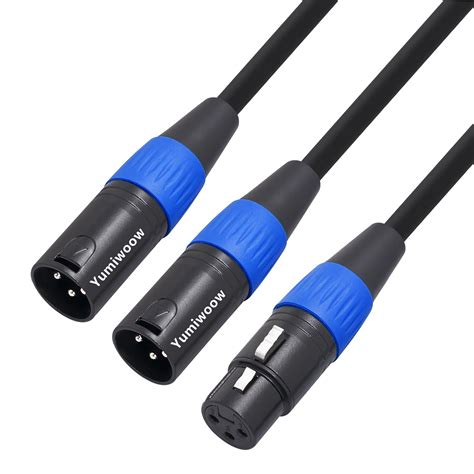

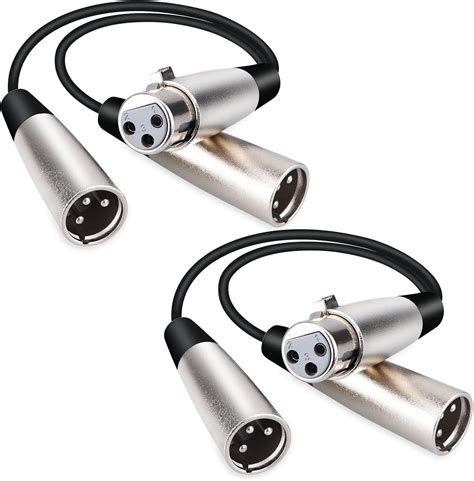

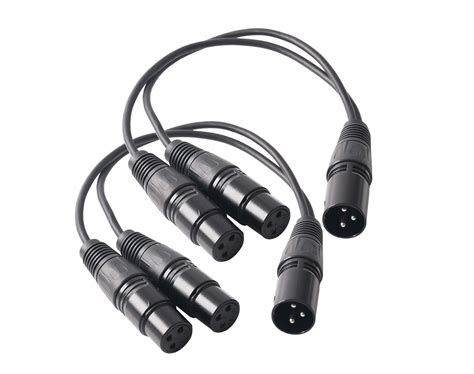

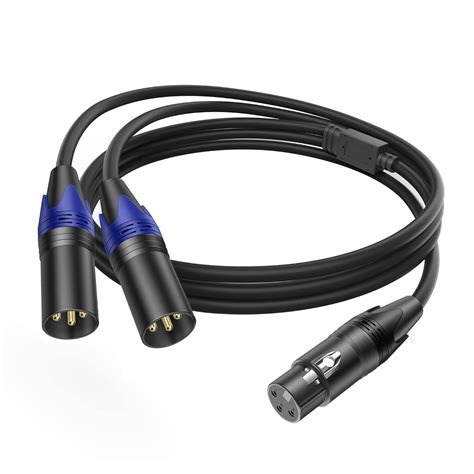

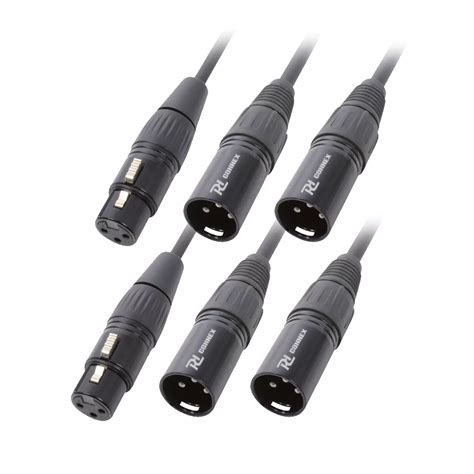

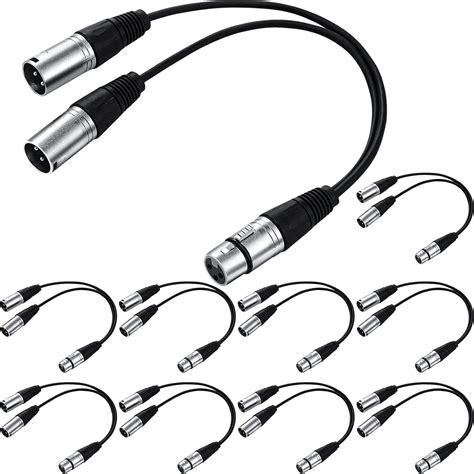

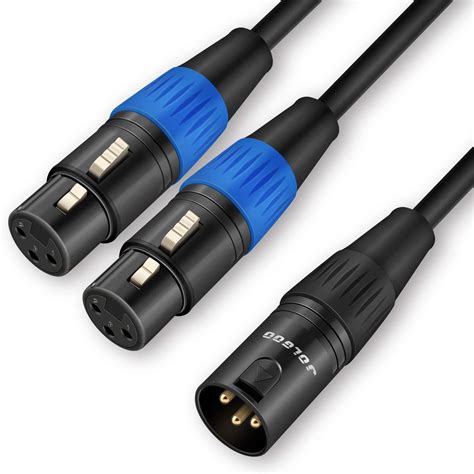

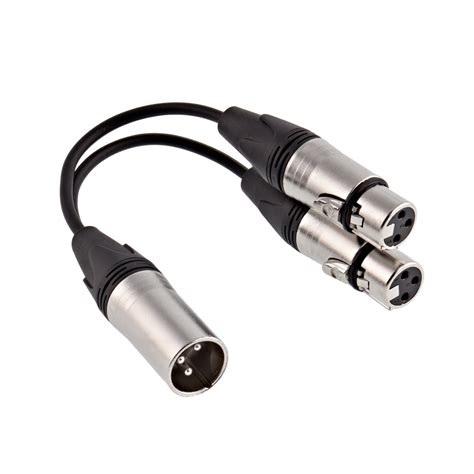

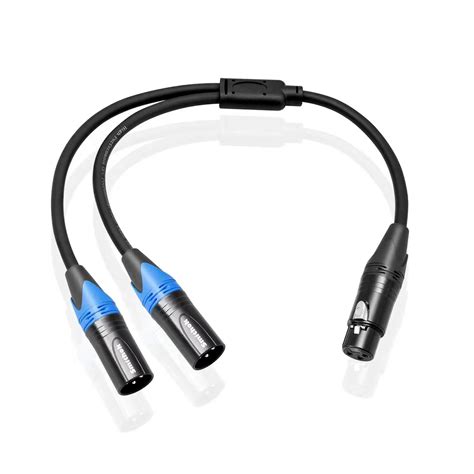

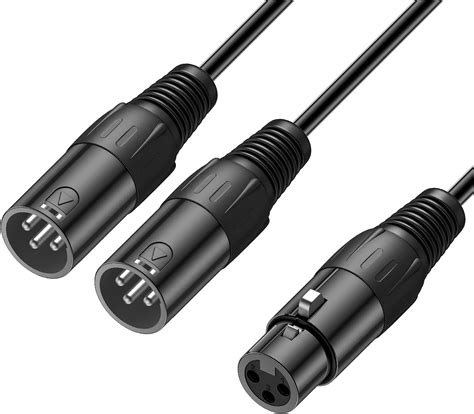

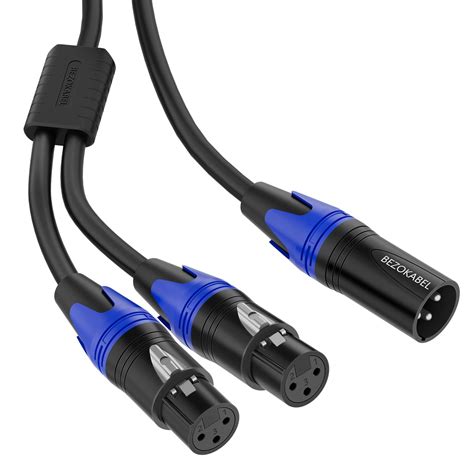

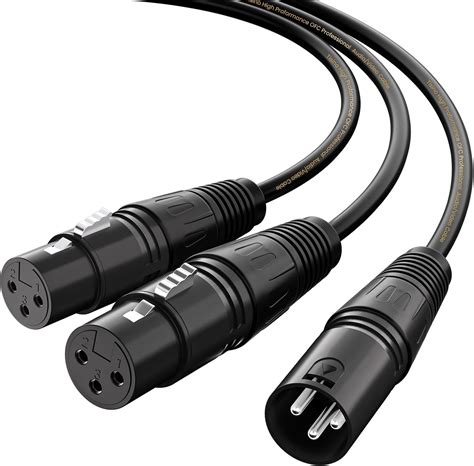

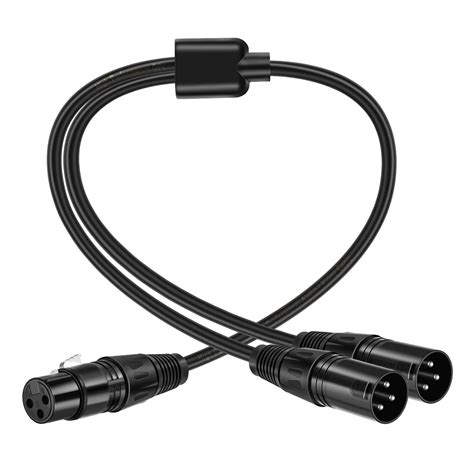

An Xlr splitter is a hardware device designed to take a single audio signal from a microphone or line-level source and duplicate it to two or more outputs. Think of it as a "Y" cable for your audio signal, though professional-grade splitters often incorporate sophisticated transformers to ensure the signal remains clean and free of interference.
You might find yourself needing one in various scenarios:
- Live Sound Broadcasting: Sending a clean feed of a vocal performance to the Front of House (FOH) mixer while simultaneously sending a separate feed to a broadcast truck or a recording interface.
- Podcasting and Streaming: Routing your microphone signal to both your primary PC for streaming and a secondary recording device for a high-quality local backup.
- Redundancy: Using a secondary recorder to ensure that if your main digital audio workstation (DAW) crashes, you still have an isolated raw track of the performance.
Understanding the Mechanics: Passive vs. Active Splitters
Not all splitters operate the same way. When shopping for an Xlr splitter, you will quickly notice a distinction between passive and active models. Choosing the right one depends heavily on your specific application and the equipment you are using.

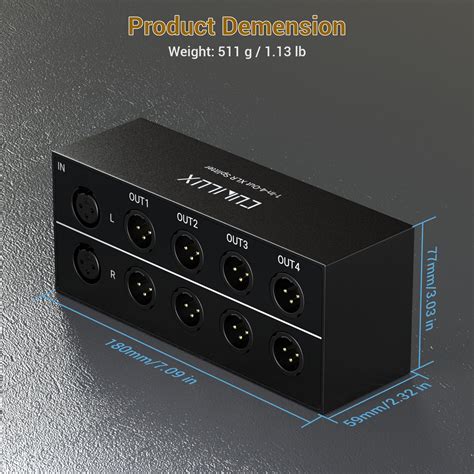

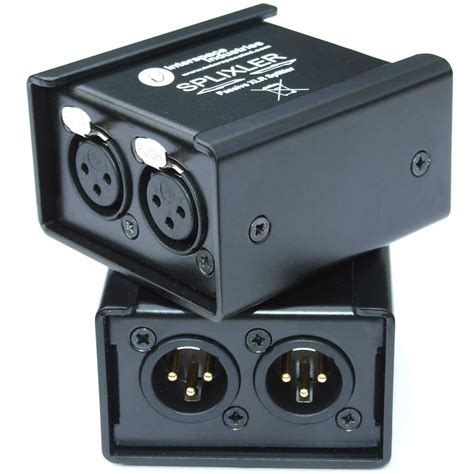

Passive Splitters: These do not require an external power source. They utilize transformers to split the signal. The primary benefit is that they are portable and reliable. However, they can sometimes cause slight signal degradation or impedance issues if not designed with high-quality components.
Active Splitters: These require power—usually via batteries or an AC adapter—and include internal circuitry to buffer and boost the signal. This is ideal for long cable runs where signal loss (attenuation) is a major concern. Active splitters often provide cleaner isolation between the outputs, preventing ground loops.
| Feature | Passive Splitter | Active Splitter |
|---|---|---|
| Power Required | No | Yes |
| Best For | Short distances, simple rigs | Long cable runs, professional venues |
| Signal Integrity | Reliable with quality transformers | Superior (buffers the signal) |
| Price | Typically more affordable | Generally higher investment |
💡 Note: If you are using condenser microphones that require +48V phantom power, ensure that only one of your outputs is configured to pass phantom power. Enabling phantom power on both outputs can cause unpredictable behavior or even damage sensitive equipment.
Common Challenges and How to Avoid Them
While the Xlr splitter is a powerful tool, it introduces potential pitfalls that every audio engineer should be aware of. The most common issue is the creation of a "ground loop," which manifests as an annoying 60-cycle hum in your audio path. This happens when the two devices receiving the signal are connected to different power circuits.
To mitigate this, many professional splitters include a "Ground Lift" switch. By engaging this switch on one of the outputs, you break the ground connection, effectively silencing the hum. Always ensure you have a clear plan for your cable management to keep your signal chain organized and quiet.
Selecting the Right Xlr Splitter for Your Setup
When searching for the perfect unit, consider the following checklist to ensure you get the best results:

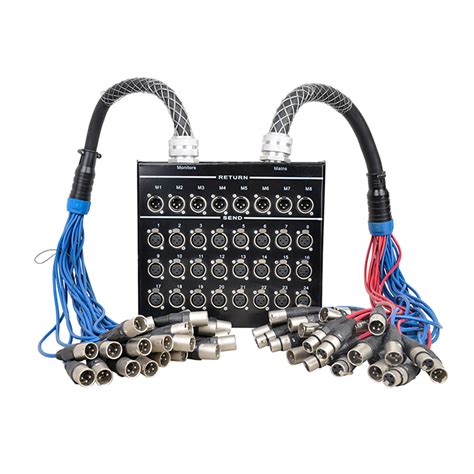

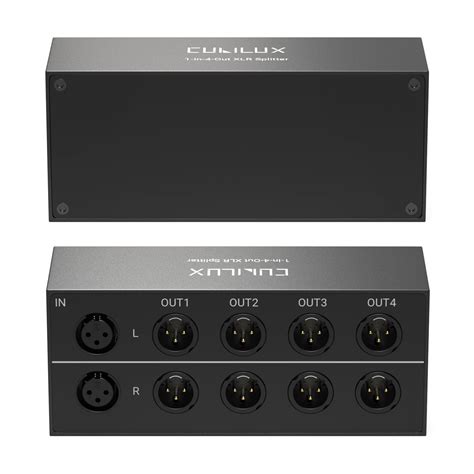

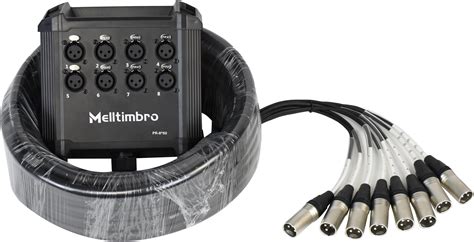

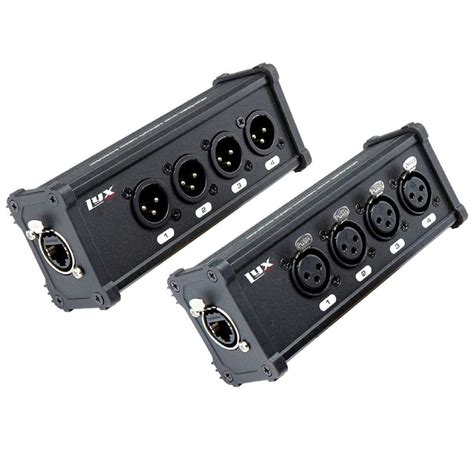

- Channel Count: How many microphones do you need to split simultaneously? You can find single-channel units or rack-mountable units that handle 8, 16, or more channels.
- Transformer Quality: Look for units that highlight "isolated outputs." High-quality transformers are the heart of a good splitter and prevent audio coloring or noise.
- Durability: If you are working in live sound, ensure the chassis is made of heavy-duty steel. Plastic casings may suffice for home setups, but they won't last long on the road.
- Connector Type: While standard XLR is the norm, check to see if you need additional I/O options like TRS or RCA for broader compatibility.
💡 Note: Always label your cables when using a multi-channel splitter. Losing track of which source goes to which mixer input is a quick way to lose precious minutes during a soundcheck.
Best Practices for Signal Routing
Proper routing is just as important as the hardware itself. Start by establishing a "Master" output. This is typically the signal going to the main console. If you are using a passive Xlr splitter, pay close attention to the impedance load. Plugging one microphone into too many devices can lower the impedance, which might cause your signal to sound dull or lose high-frequency content.
If you find that your audio quality is suffering, it may be time to upgrade from a passive splitter to an active distribution amplifier. This device effectively creates multiple independent outputs, ensuring that each destination receives a signal that is identical to the source in terms of volume and frequency response.
Integrating Into Your Workflow
The versatility of an Xlr splitter makes it an essential component for any serious audio technician. As you grow your collection of microphones and interfaces, the ability to distribute audio signals across multiple platforms will become a regular requirement. Whether you are mirroring a vocal signal for a live monitor mix and a recording, or simply expanding the capability of your existing hardware, the right splitter acts as the unseen engine room of your studio.
By balancing the need for mobility with the requirements of signal integrity, you can choose a unit that serves your needs today while remaining flexible enough to handle the expansion of your setup tomorrow. Remember that high-quality cables also play a massive role in how your signal is delivered, so pair your high-end splitter with quality shielded cabling for the best results.
Mastering the use of audio distribution tools is a fundamental skill that separates hobbyists from professionals. As you become more comfortable with routing and troubleshooting your signal path, you will find that these devices offer an unparalleled level of freedom, allowing you to focus on the performance rather than the technical limitations of your equipment. With the right hardware, clean connections, and a solid understanding of ground management, you can achieve a professional-grade audio setup that is both robust and incredibly efficient.
