Coax Tester

Whether you are a professional network technician, a DIY home theater enthusiast, or a cable television installer, understanding the signal integrity of your wiring is paramount. A coax tester is an essential tool in your arsenal, designed to identify faults, verify continuity, and ensure that your data or video signals are traveling across your coaxial cables without interference or loss. Without a reliable testing device, troubleshooting intermittent connectivity or poor picture quality becomes a game of guesswork that wastes time and resources.

What is a Coax Tester and Why Do You Need One?

A coax tester is a specialized electronic instrument used to diagnose common issues found in coaxial cabling, such as RG6 or RG59 wires. These cables are notorious for subtle failure points, including broken shielding, short circuits between the center conductor and the outer braid, or loose connector crimps. By using a coax tester, you can pinpoint the exact location of a break or determine if a cable is completely dead before you commit to fishing new wires through walls.

Key reasons to keep a tester on hand include:

• Time Efficiency: Quickly determine if the cable is the culprit rather than the equipment (like a modem or TV box).
• Cost Savings: Prevent unnecessary service calls by identifying and fixing simple wiring issues yourself.
• Installation Quality: Verify that your DIY cable terminations are solid, preventing signal noise that causes "pixelation" in HD feeds.
• Documentation: Easily map out complex home or office networks by tracing which wall plate connects to which port in the central distribution panel.

Types of Coax Testing Equipment

Not all testers perform the same functions. Depending on your specific needs, you might choose between simple continuity testers or more advanced cable length measurement devices. Selecting the right coax tester depends on your workflow:

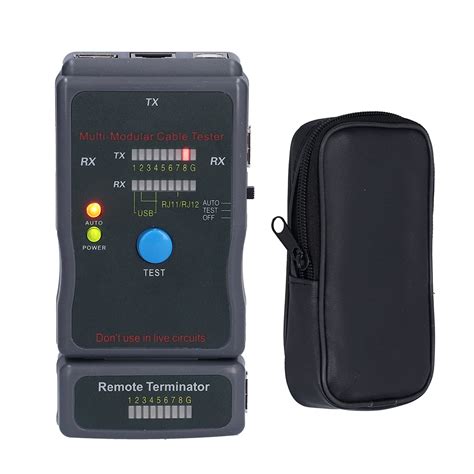

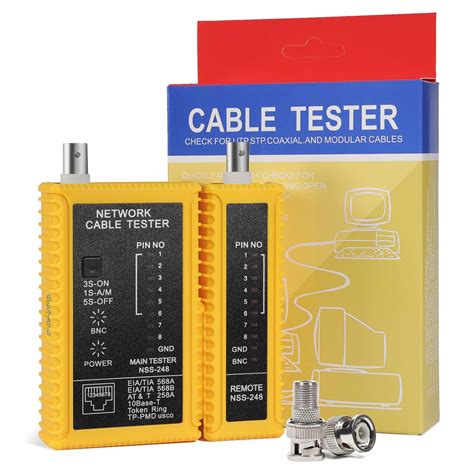

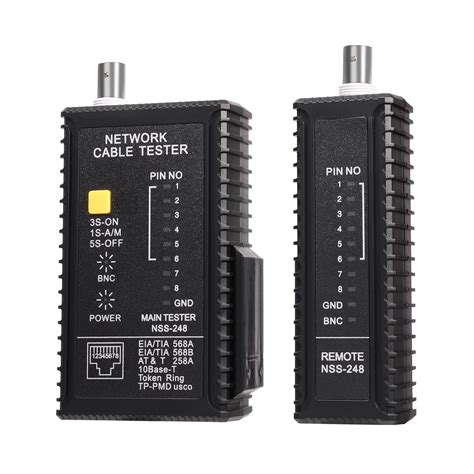

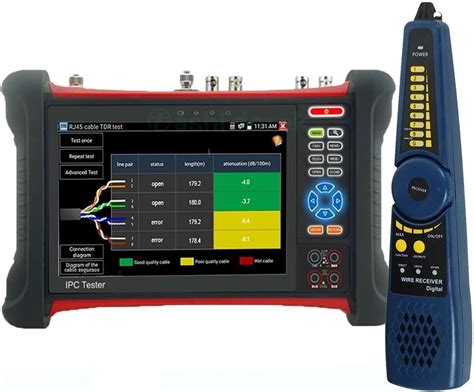

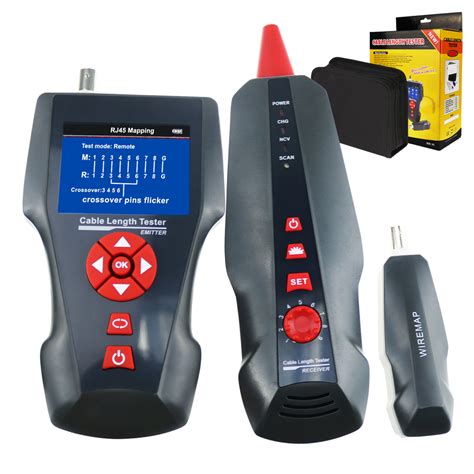

Basic continuity testers usually consist of a transmitter and a remote unit. You plug one end into the transmitter and the other into the remote; if the LEDs light up in the correct sequence, your cable is wired correctly. Advanced units, however, provide digital readouts and can even detect if there is a split or damage along the length of the cable.

How to Use a Coax Tester Effectively

Using a coax tester is generally straightforward, but it requires a systematic approach to ensure accurate results. Follow these steps to verify your cabling infrastructure:

1. Disconnect Equipment: Always ensure that the coaxial cable is disconnected from all electronic devices, such as routers, splitters, or television tuners, to prevent damage to the tester or false readings.
2. Attach the Transmitter: Connect the main unit of the coax tester to the start of the cable run, usually at the wall jack or the cable outlet.
3. Identify the Far End: Move to the other end of the cable (often in the basement, attic, or utility closet) and connect the remote unit or terminator.
4. Perform the Scan: Initiate the test on the main unit. Observe the indicators—a green light or a positive signal tone typically indicates a good cable.
5. Check for Shorts: If the device indicates a "short" or "open" circuit, inspect the F-connectors at both ends. Often, a stray piece of wire shielding touching the center conductor is the primary cause of failure.

⚠️ Note: If you are testing a long run of cable that goes through splitters, you must bypass the splitters. Coax testers generally cannot read through passive signal splitters accurately, as they will interpret the splitter components as a break or a short.

Troubleshooting Common Cable Issues

Even with a high-quality coax tester, you may encounter recurring issues that suggest deeper problems. Often, the issue is not the cable itself but the physical connection at the termination point. Improper crimping or the use of low-quality F-connectors can lead to oxidized contacts or loose fits that move when the cable is bumped.

When your tester shows a failure, look for these common red flags:

• Oxidation: If the cable has been exposed to moisture, the center copper conductor might be dull or green. This creates high resistance.
• Kinks and Bends: Coaxial cables rely on a precise distance between the center wire and the outer shield. Sharp kinks change this geometry, leading to "signal reflection" that the tester might categorize as a fault.
• Improper Stripping: If too much of the center conductor is exposed or not enough of the braid is folded back, the connection will be unstable.

💡 Note: Always ensure the center pin is straight. A bent center conductor can damage the female port on your devices, leading to port failure that persists even after the cable is replaced.

Best Practices for Cable Maintenance

To keep your network running smoothly, treat your cables with care. Avoid overtightening connectors, as this can crush the dielectric foam inside the cable. Furthermore, label your cables at both ends. When you use your coax tester to map your house, use adhesive labels or a permanent marker to mark which room each cable serves. This simple habit saves hours of frustration during future troubleshooting sessions.

Regularly inspect external cables that are exposed to the elements. UV light and extreme temperature changes can make the outer jacket brittle over time. If a cable appears cracked or sun-bleached, it is only a matter of time before moisture enters the core, causing signal attenuation. Use a coax tester periodically—perhaps once a year—to ensure that your external lines are still performing within acceptable parameters. By taking a proactive stance on maintenance, you ensure that your internet speeds remain high and your video content remains crystal clear, effectively extending the lifespan of your entire coaxial network infrastructure.
